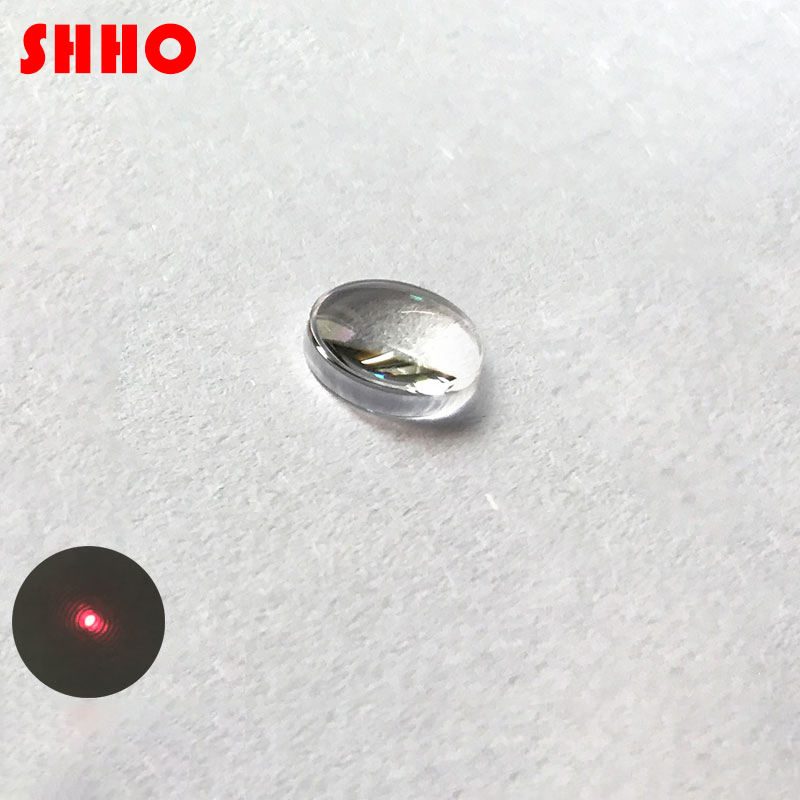

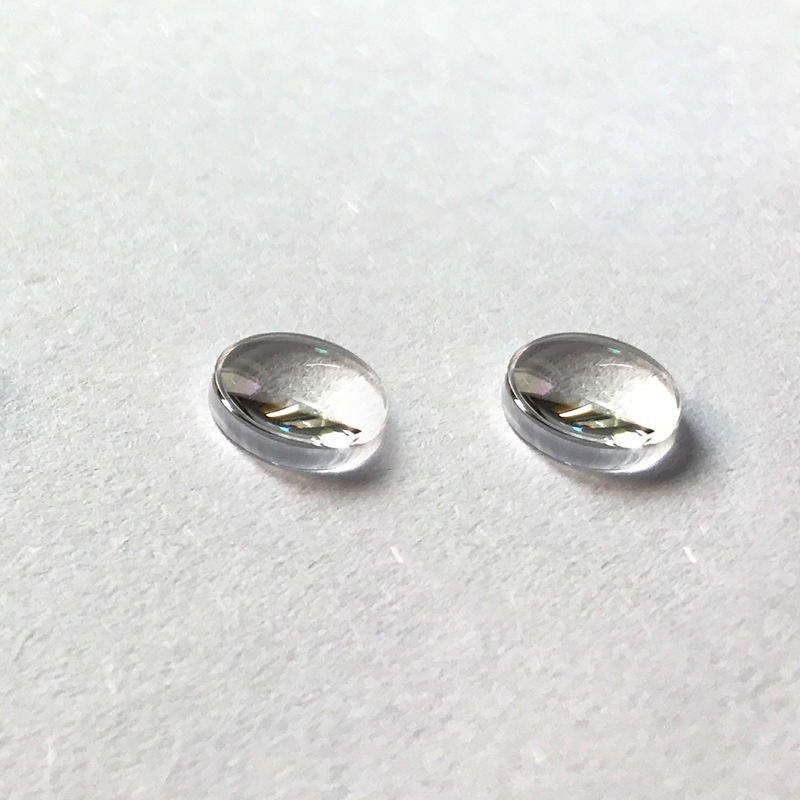

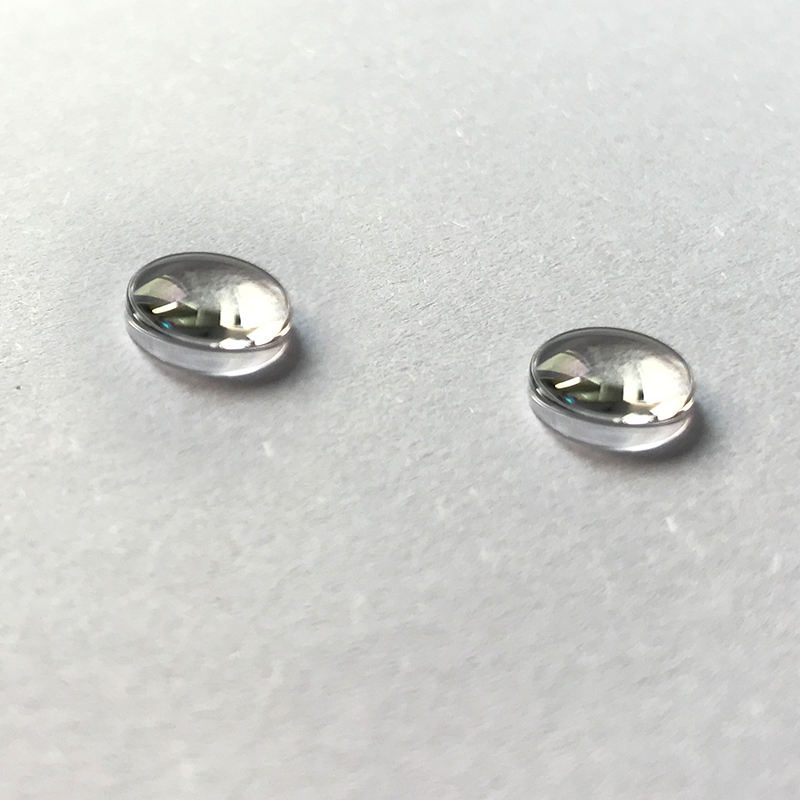

6x10 mm Glass Aspheric Lens, AR Coated

Product description

This aspheric lens is designed for precise collimation across multiple wavelength bands, including 0.7-1.7 μm and 400-700 nm. With a focal length of 10 mm and high transmittance of over 98%, it ensures efficient light management for applications in laser, medical devices, and machine vision. The lens is available in various custom sizes, making it adaptable to specific project requirements.

Key Features

Focal length of 10 mm for effective light collimation.
High transmittance (>98%~99.8%) for optimal performance.
Multiple diameter options (e.g., 6.0 mm) for versatile applications.
Aspheric design minimizes optical aberrations, enhancing image quality.
Custom sizes available to fit specific application needs.

Available Sizes

Diameter x Focal Length (mm)
5 x 6.2
5 x 8
5 x 10
5.5 x 8.8
6 x 8
6 x 10
6 x 12
6 x 15
6.3 x 6.4
6.3 x 10
6.3 x 13.8
6.5 x 12
6.5 x 15.3
6.5 x 18.4
7 x 8
7.2 x 6.2
7.2 x 11
8 x 11.2
9.5 x 24.6
10 x 8
10 x 16.7
10 x 19
10.5 x 15.2

Applications

Collimation

Specification Summary

Item	Value
Material	Glass
Shape	Aspheric
Diameter	6 mm
Focal Length	10 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	ODM, OBM
Warranty	no
Weight	0.05
Center Thickness	2.25mm
Surface	Aspherical

FAQ

What custom sizes are available?

Custom sizes include diameters ranging from 5.0 mm to 10.5 mm, with various thickness options.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering based on project needs.
