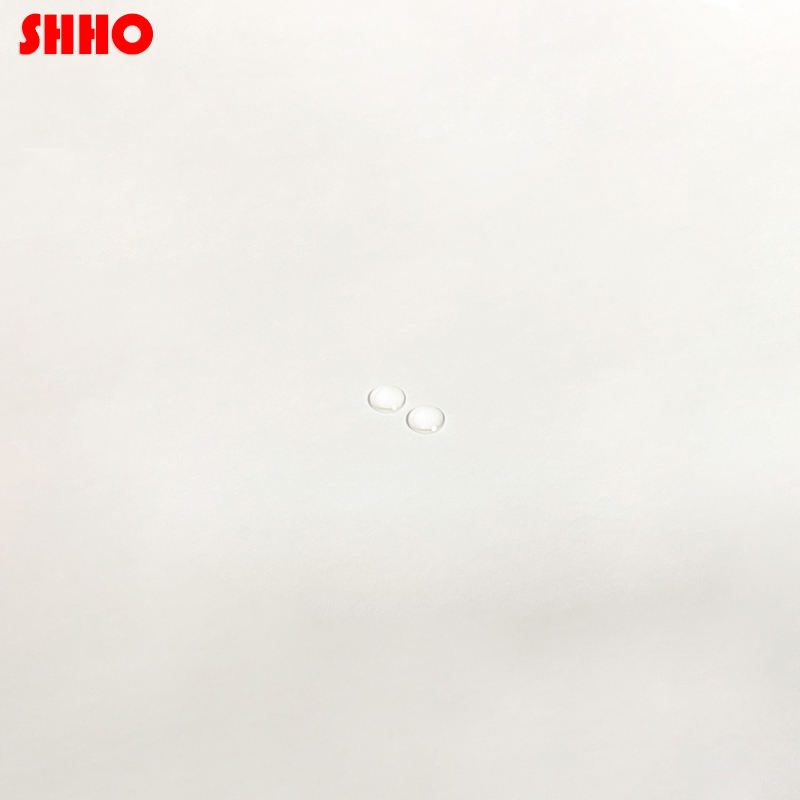

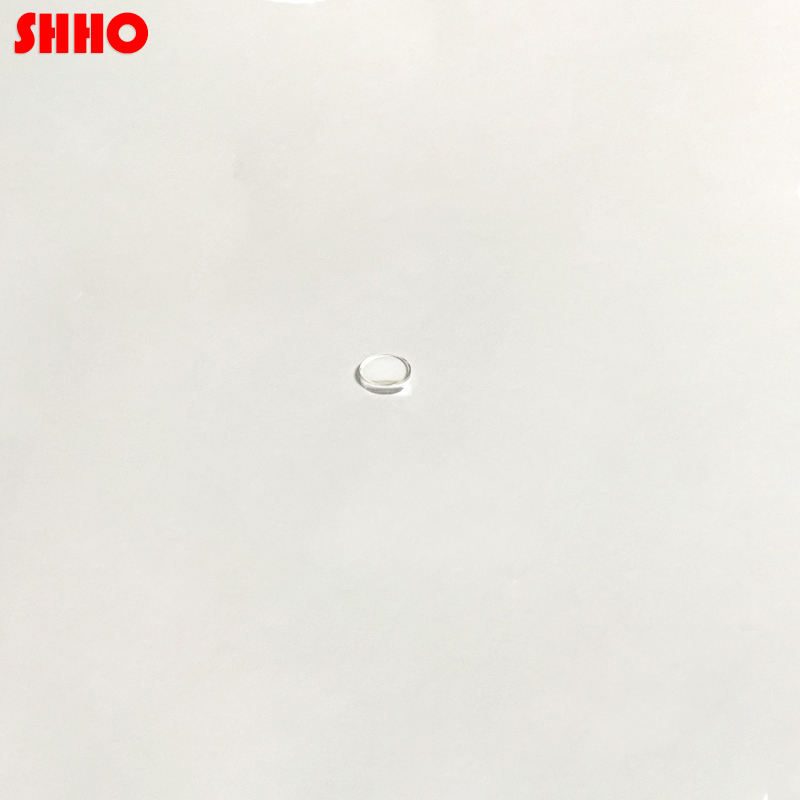

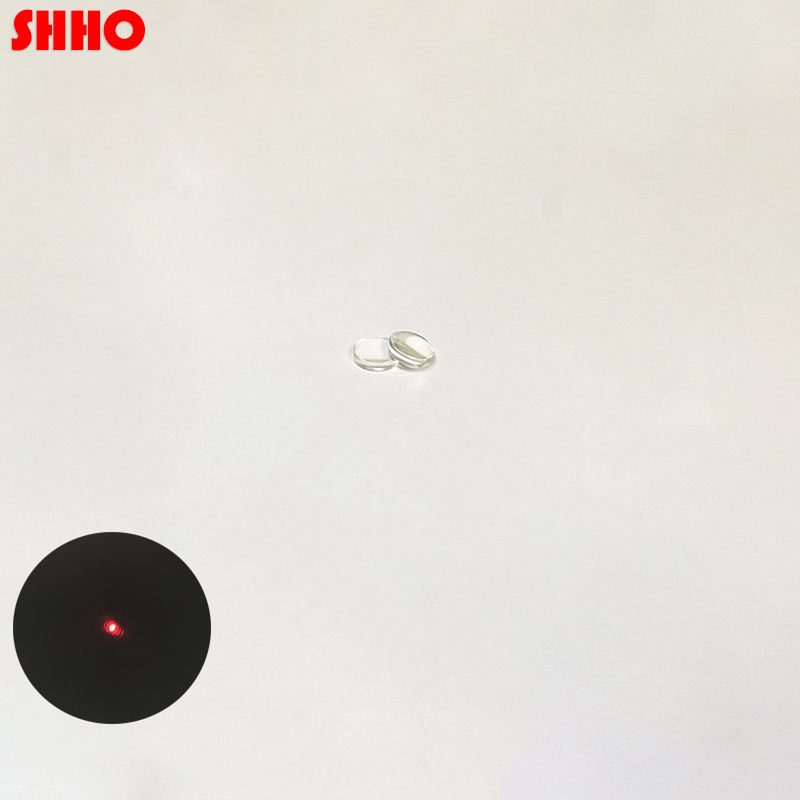

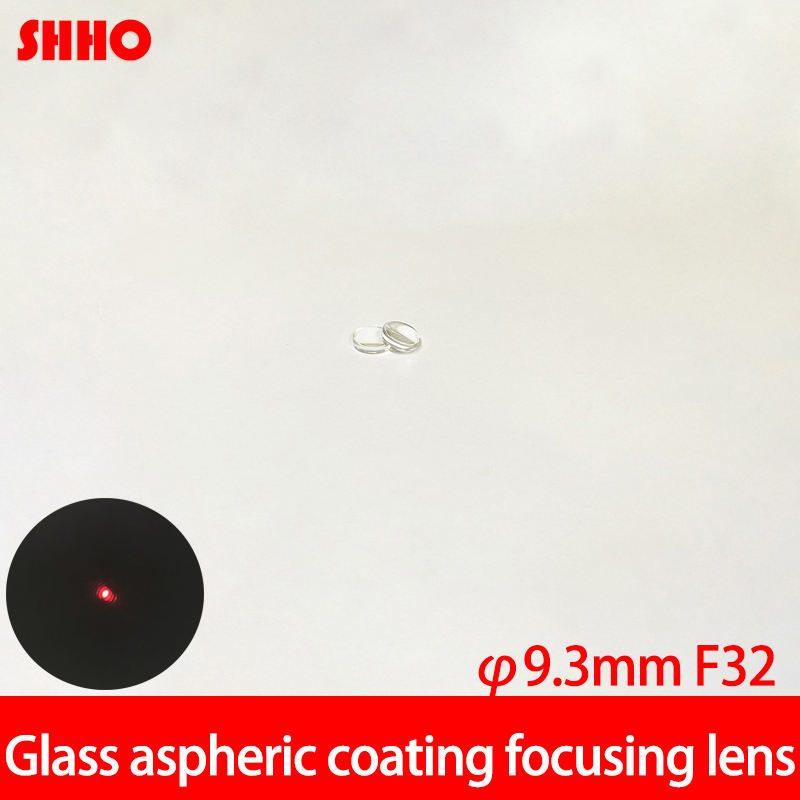

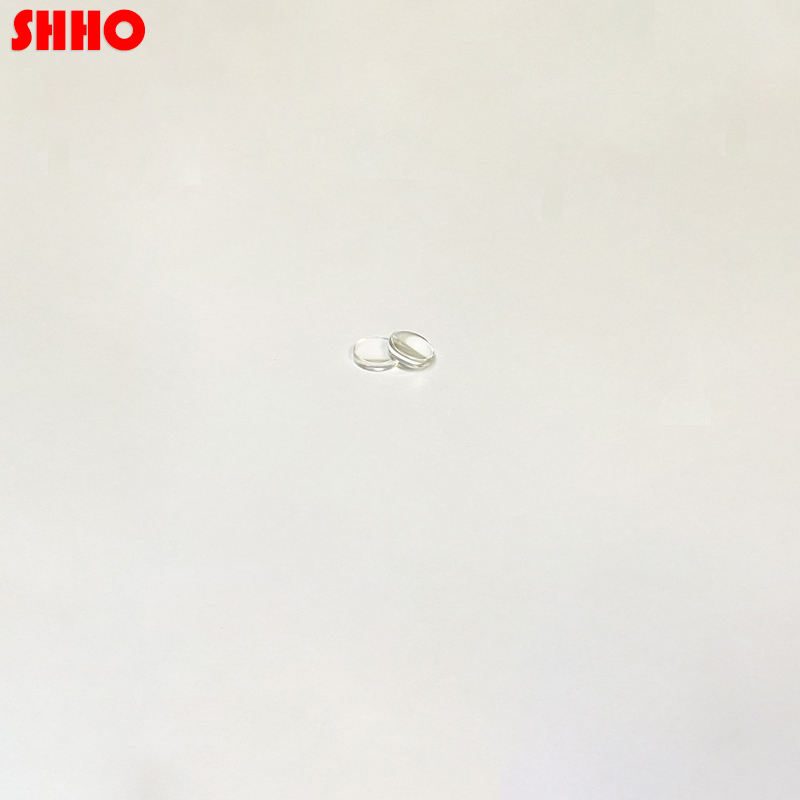

9.3x32 mm Glass Aspheric Lens, AR Coated

Product description

The aspheric lens SBJ9.3F32-82 is designed for optimal collimation across multiple wavelength bands, including 0.7-1.7 μm and 400-700 nm. With a focal length of 32 mm and a diameter of 9.3 mm, this lens provides high transmittance (>98%~99.8%) for efficient laser applications. Ideal for laser collimation, focusing, and coupling, it meets the needs of R&D and procurement engineers in various high-tech fields.

Key Features

Focal length of 32 mm ensures precise light focusing.
High transmittance (>98%~99.8%) enhances efficiency in laser applications.
Aspheric design minimizes spherical aberrations for improved image quality.
Compatible with multiple wavelength bands, including <400 nm and 0.7-1.7 μm.
Custom coating options available for orders over 1000 units.

Available Sizes

Diameter x Focal Length (mm)
9.3 x 32

Applications

Collimation

Specification Summary

Item	Value
Material	Glass
Shape	Aspheric
Diameter	9.3 mm
Focal Length	32 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	ODM, OBM
Warranty	no
Weight	0.005
Center Thickness	2.3 mm
Surface	Aspherical

FAQ

Is custom sizing available?

Custom lens molds can be created upon request, provided accurate parameter drawings are supplied.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, but custom coatings require a minimum of 1000 units to avoid additional fees.
