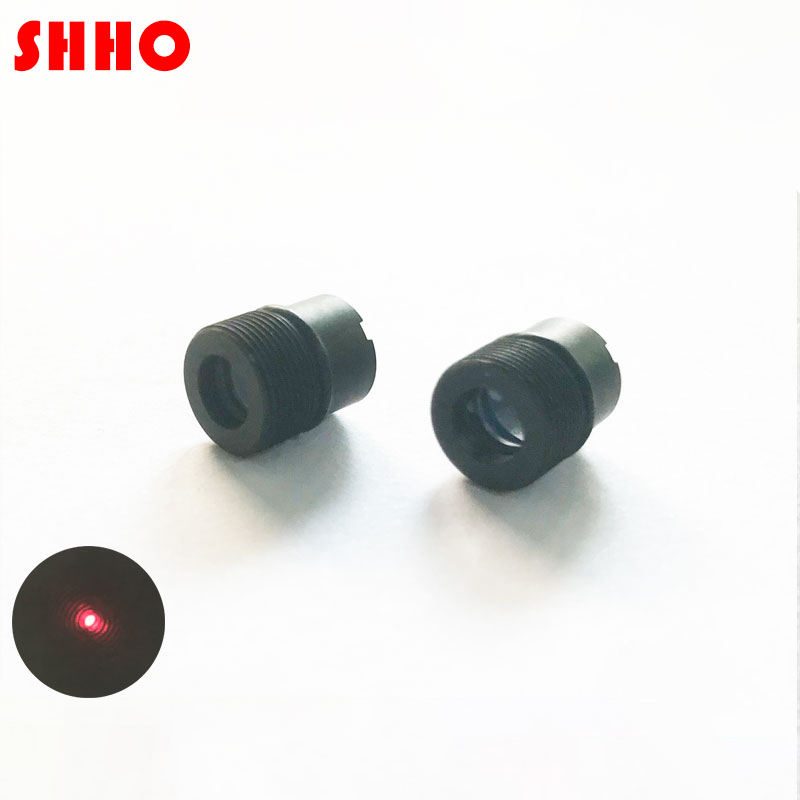

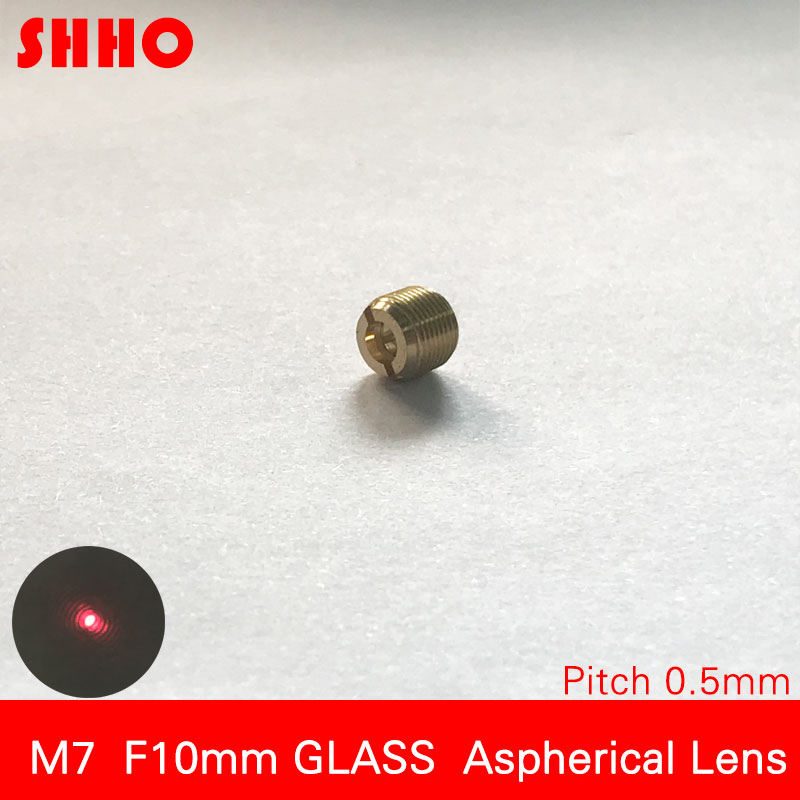

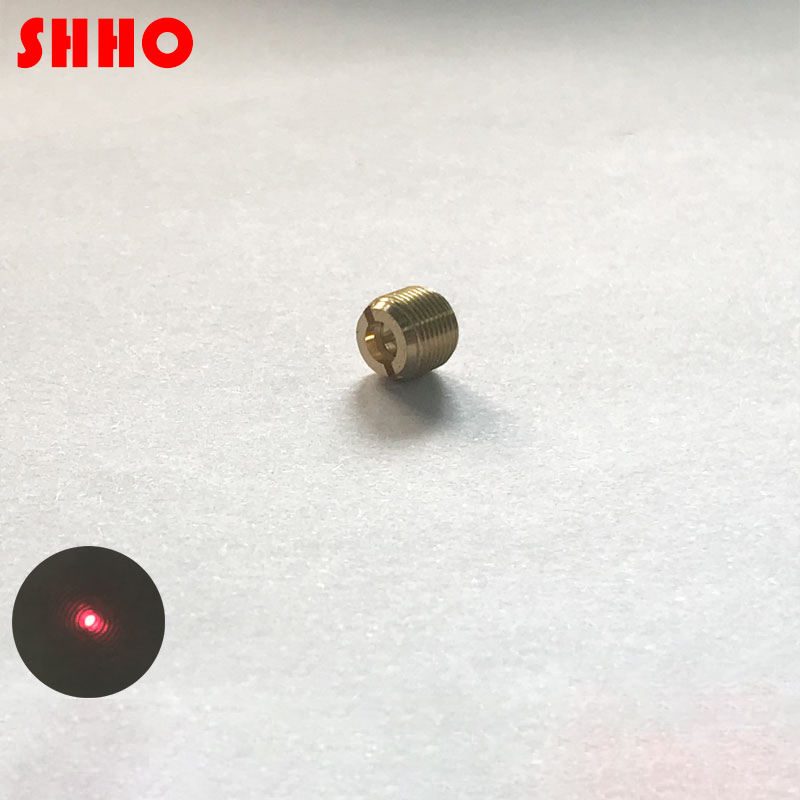

Custom Size Glass Aspheric Lens, AR Coated

Product description

The aspheric lens is designed for laser collimation and focusing applications across multiple wavelength bands, including 0.7-1.7 μm and 400-700 nm. With a focal length of 10 mm and a numerical aperture of 0.28, this lens ensures high transmittance of over 98% to 99.8%, making it ideal for precision optics in imaging and laser systems. Its robust glass construction and anti-reflective coating enhance performance in demanding environments.

Key Features

Focal length of 10 mm for precise collimation and focusing.
High transmittance (>98%~99.8%) for efficient light transmission.
Aspheric design minimizes spherical aberrations, improving image quality.
Custom coatings available for specific wavelength requirements.
Lightweight at 0.1 kg, facilitating integration into various systems.

Applications

Collimation

Specification Summary

Item	Value
Material	Glass
Shape	Aspheric
Focal Length	10 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	ODM, OBM
Warranty	no
Weight	0.1
Center Thickness	5.5mm
Surface	Aspherical

FAQ

Can I get custom sizes for this lens?

Custom lens molds can be made upon request, but accurate parameter drawings are required.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, but custom coatings are available for orders over 1000 units.
