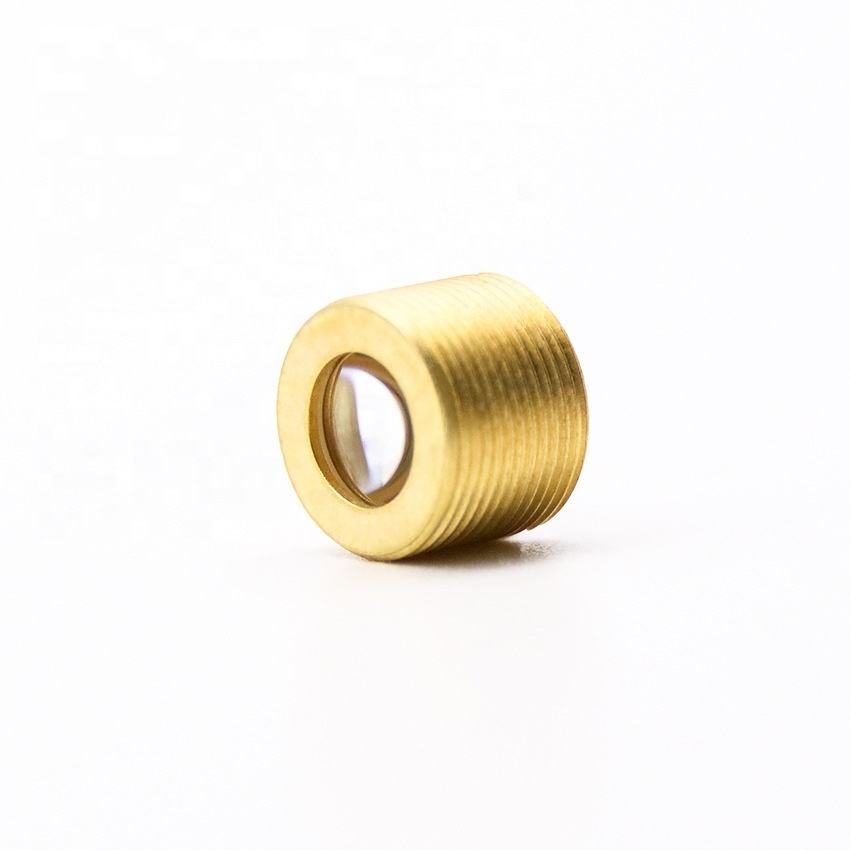

Custom Size Glass Aspheric Lens, AR Coated

Product description

The aspheric collimator lens is designed for applications in machine vision and collimation across a wavelength range of 400-700 nm and below 400 nm. With a focal length of 4.05 mm and a working distance of 2.23 mm, this lens minimizes spherical aberrations, ensuring high-quality light collimation. Ideal for use with fiber and laser diodes, it offers reliable performance in demanding optical systems. Customization options are available to meet specific project needs.

Key Features

Focal length of 4.05 mm for precise light collimation.
Designed for wavelengths from 400-700 nm and <400 nm, fitting various applications.
Aspheric design reduces spherical aberration, enhancing image quality.
Lightweight at 0.01 kg, facilitating integration into compact systems.
OEM support available for customized solutions.

Applications

Machine Vision, Collimation

Specification Summary

Item	Value
Material	Glass
Shape	Aspheric
Focal Length	4 mm
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	OEM
Warranty	one year
Weight	0.01
Design Wavelength	445nm
Key Word	collimator lens

FAQ

Are custom sizes available?

Yes, customization options are available to meet specific project requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified; please inquire for details.
