0.3 mm Glass Ball Lens, AR Coated

Product description

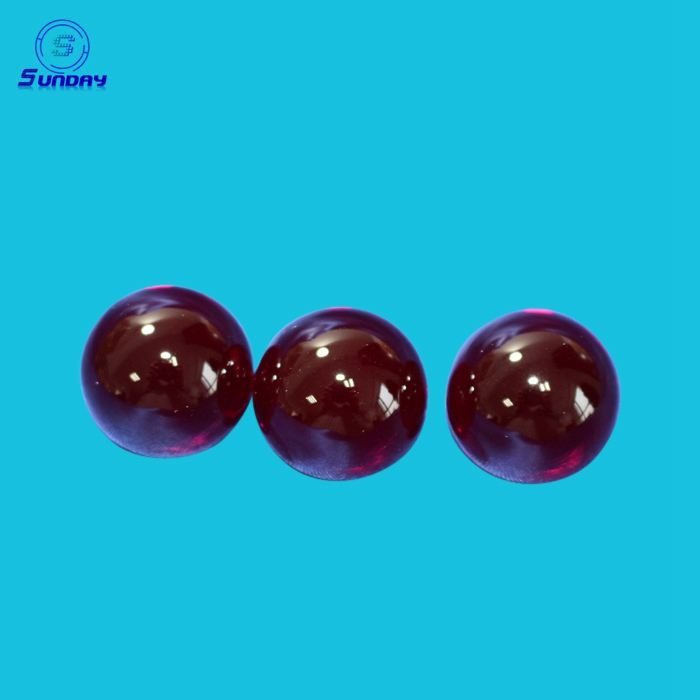

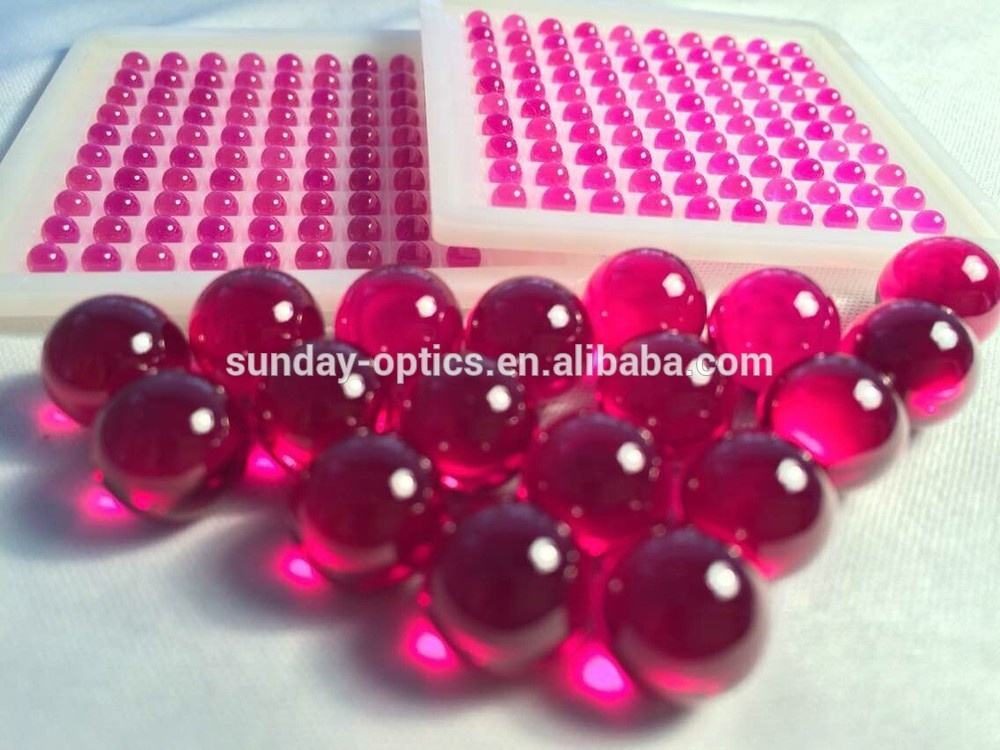

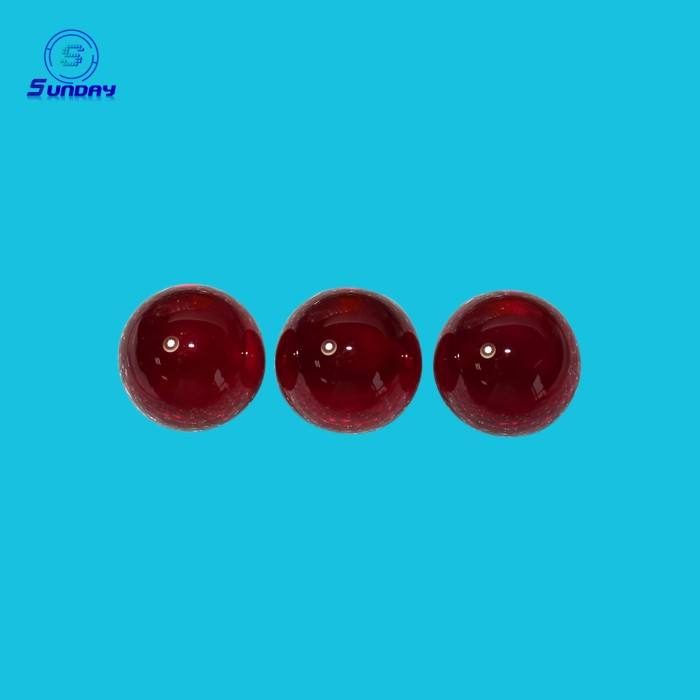

The Ruby Ball Lens is designed for applications requiring precise collimation across multiple wavelength bands, including 8-14 μm, 3-5 μm, 1.7-3 μm, and 400-700 nm. This lens is ideal for use in fiber coupling, laser collimators, and communication systems. With a diameter range from 0.3 mm to 50 mm, it offers flexibility for various optical setups while ensuring high performance in demanding environments.

Key Features

Customizable diameter from 0.3 mm to 50 mm for tailored applications.
AR coating enhances transmittance across multiple wavelengths.
Diameter tolerance of +/-0.05 mm ensures precise fitting.
Thickness tolerance of +/-0.02 mm for consistent performance.
Manufactured in Jilin, China, ensuring reliable sourcing.

Applications

Collimation

Specification Summary

Item	Value
Material	Glass
Shape	Ball
Diameter	0.3 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	6 months
Weight	customized
Diameter Tolerance	+/-0.05mm
Thickness Tolerance	+/-0.02mm
Use	Optical
Structure	ball

FAQ

Can I get custom sizes for the Ruby Ball Lens?

Yes, the Ruby Ball Lens is customizable with diameters ranging from 0.3 mm to 50 mm.

What are the tolerances for diameter and thickness?

The diameter tolerance is +/-0.05 mm and the thickness tolerance is +/-0.02 mm.
