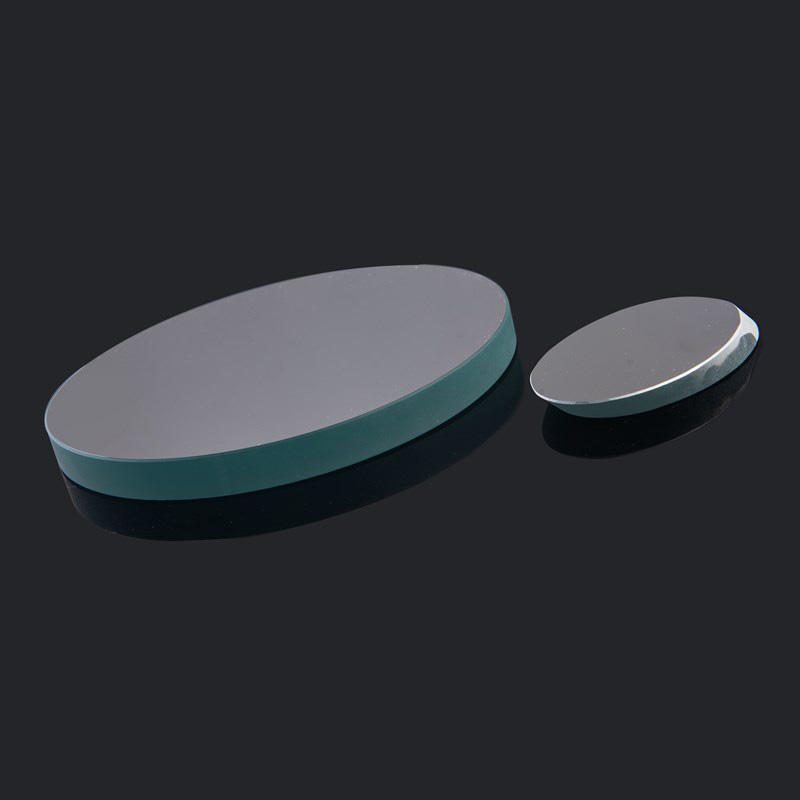

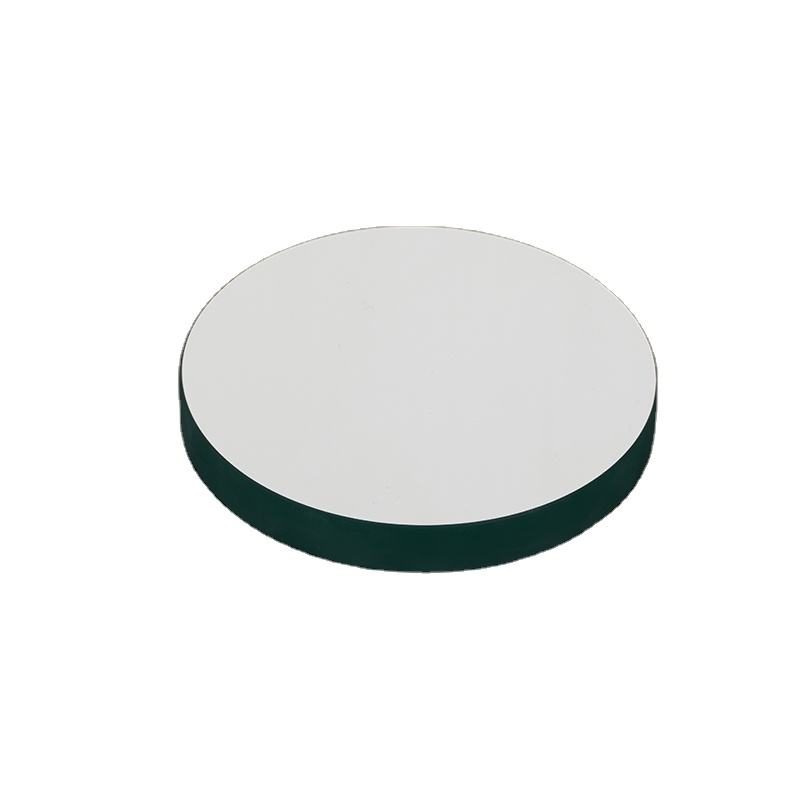

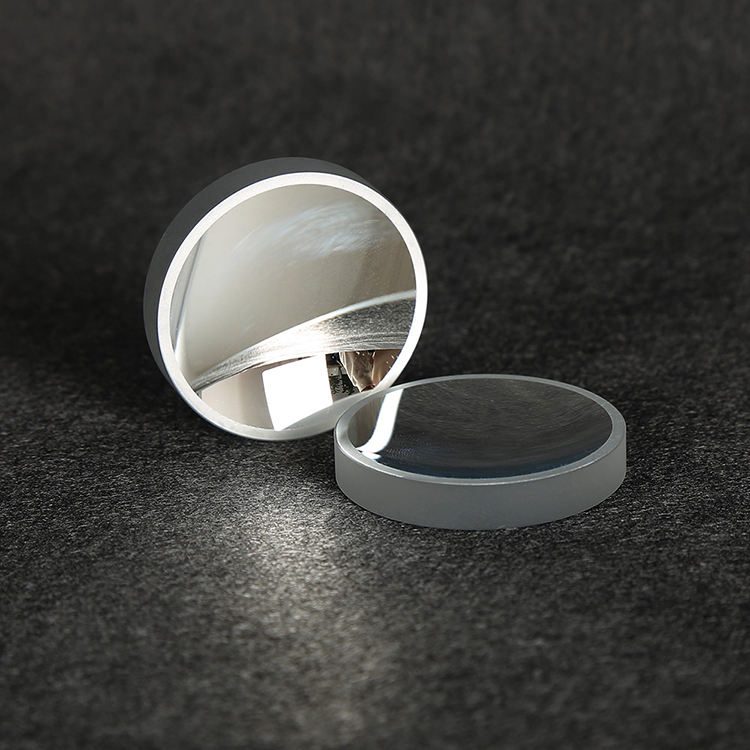

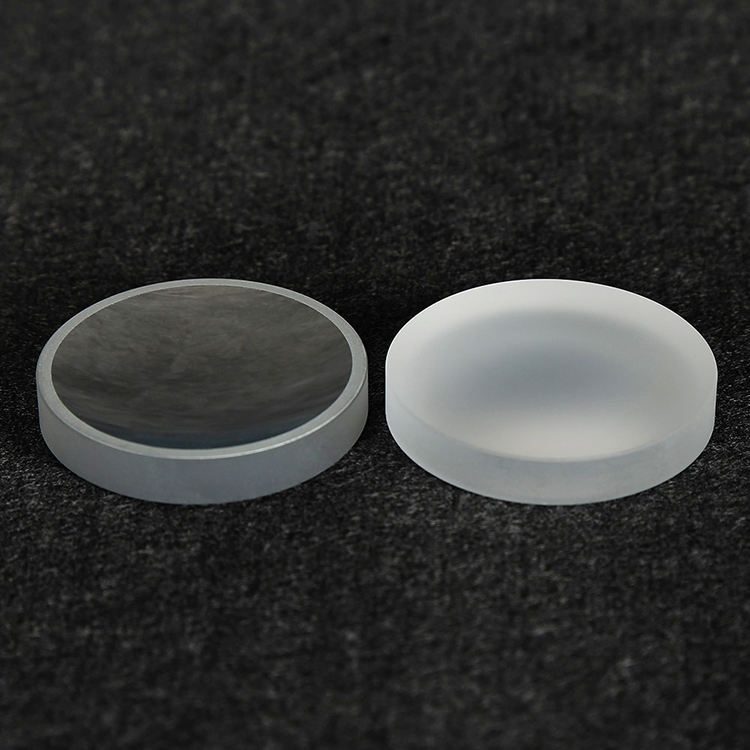

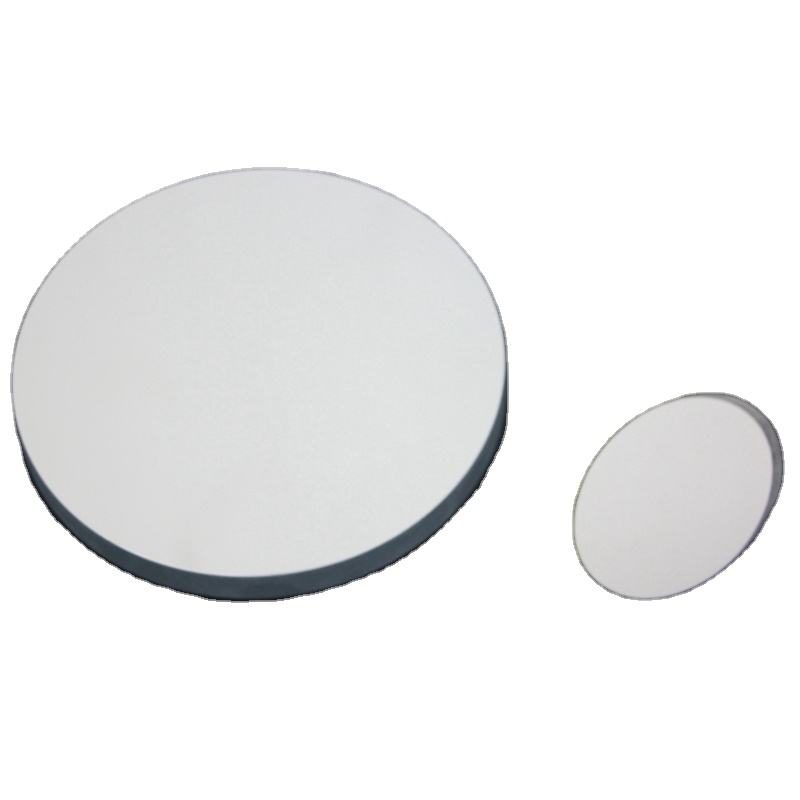

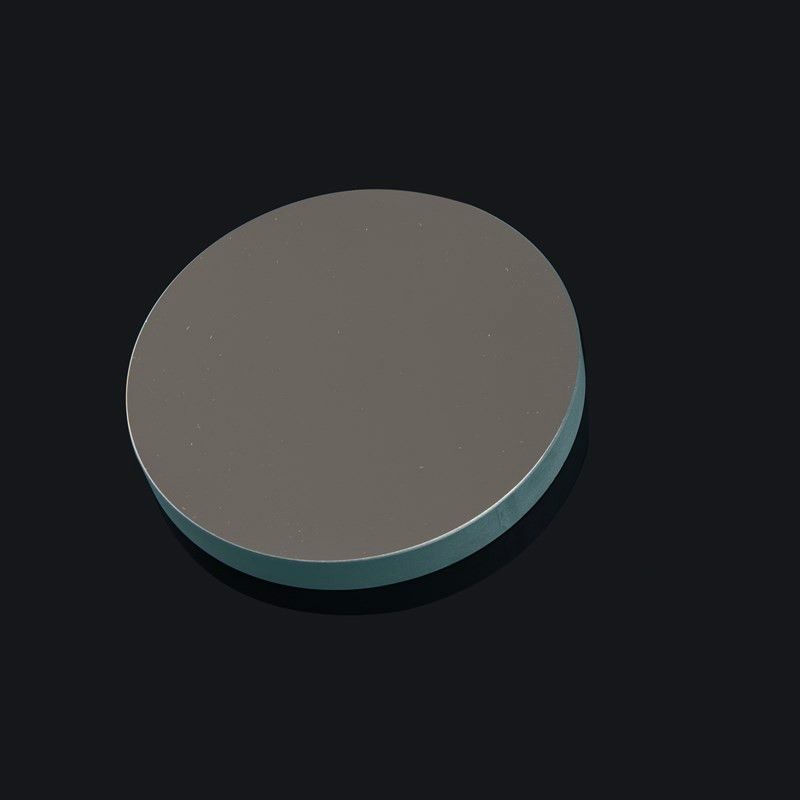

5 mm Glass Concave Optical Mirror, AR Coated
Concave glass mirror with customizable sizes and anti-reflective coatings for optimal optical performance.
Core attributes
- Material
- Glass
- Shape
- Concave
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Glass
- Shape
- Concave
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
This concave glass mirror is designed for applications requiring precise optical performance. With customizable sizes ranging from 5 mm to 300 mm, it is ideal for various optical systems. Enhanced with anti-reflective coatings, this mirror minimizes unwanted reflections, ensuring optimal light transmission and performance in your optical setup.
Key Features
- Custom sizes available from 5 mm to 300 mm for versatile application fit.
- Diameter and thickness tolerances of +/-0.01 mm ensure precision in manufacturing.
- Surface flatness options of 60-40, 40-20, and 20-10 for high wavefront quality.
- Clear aperture greater than 98.5% maximizes light utilization.
- Bevel dimensions of 0.1-0.3 mm at 45 degrees to enhance edge quality.
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Shape | Concave |
| Size | 5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Diameter Tolerance | +/-0.01 |
| Thickness Tolerance | +/-0.01 |
| Surface Flatness | 60-40,40-20,20-10 |
| Clear Aperture | >98.5% |
| Bevel | 0.1-0.3mm X45 Degree |
FAQ
What are the available custom sizes?
Custom sizes range from 5 mm to 300 mm.
What are the tolerances for diameter and thickness?
Both diameter and thickness tolerances are +/-0.01 mm.
