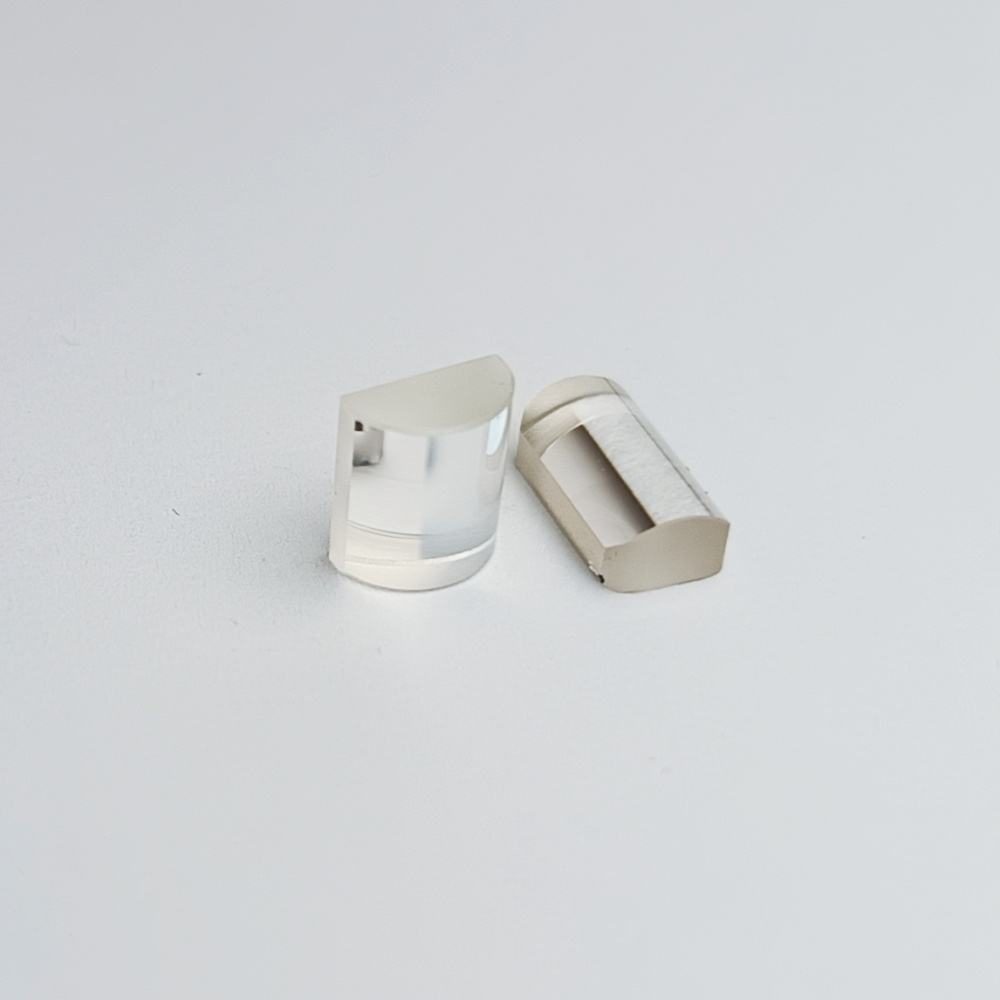

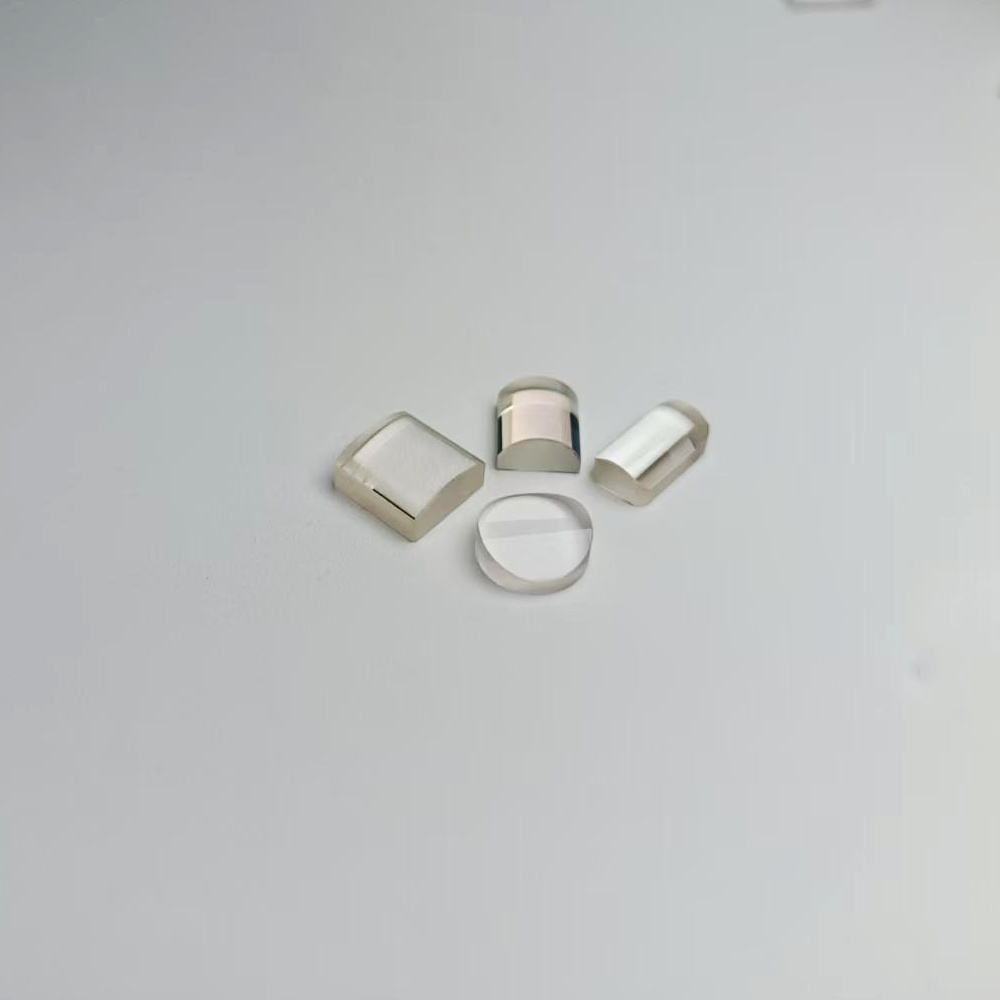

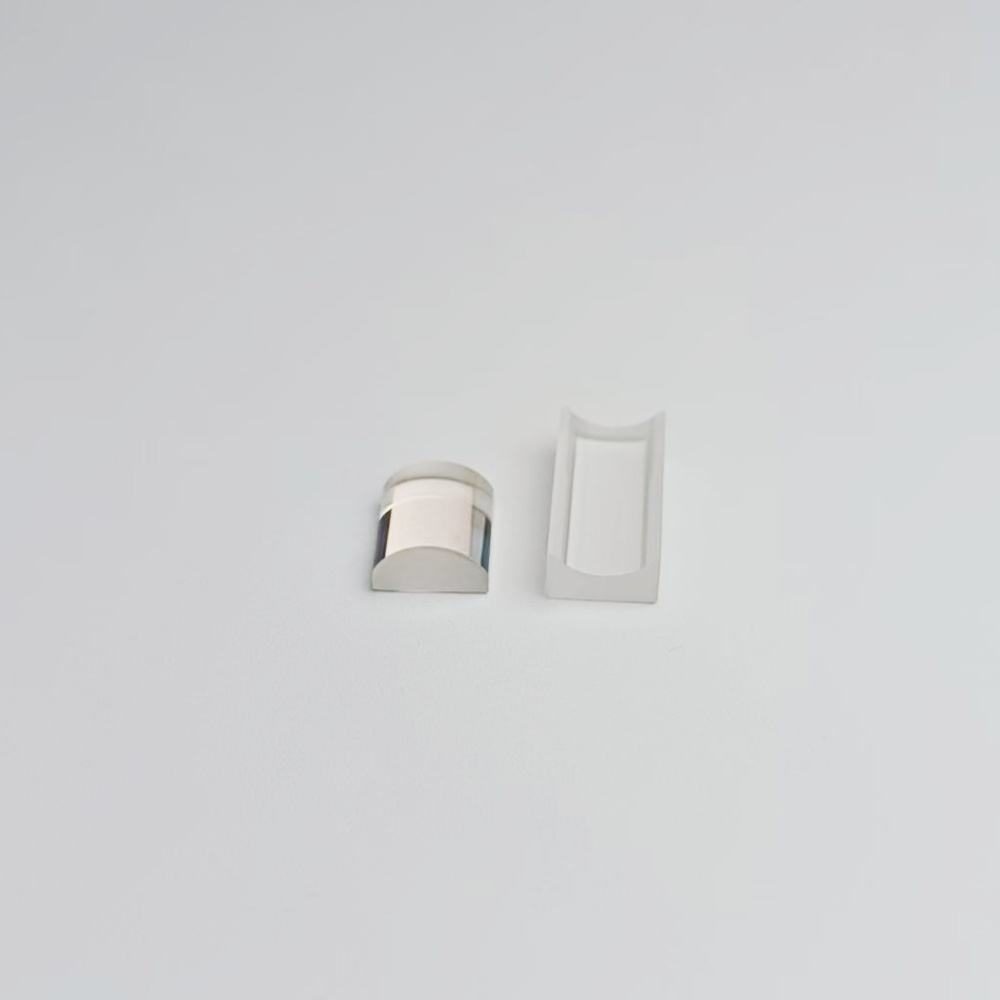

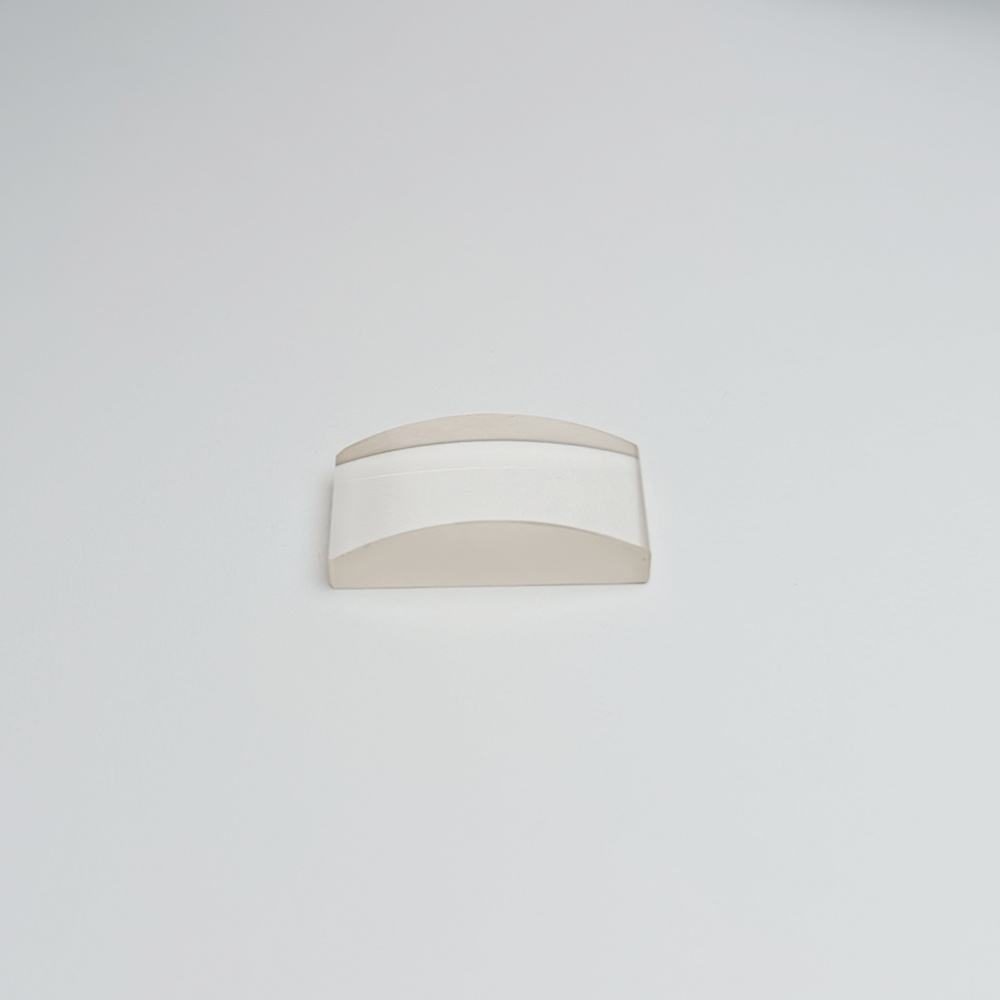

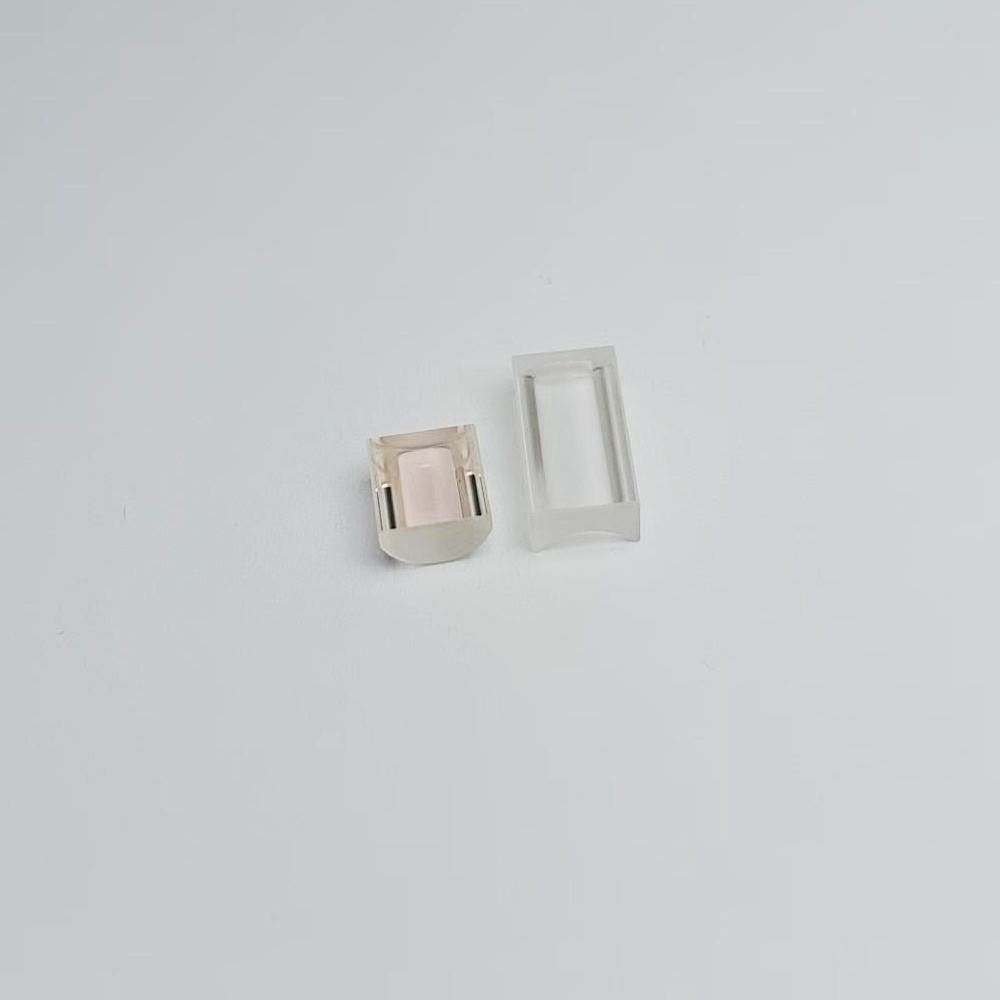

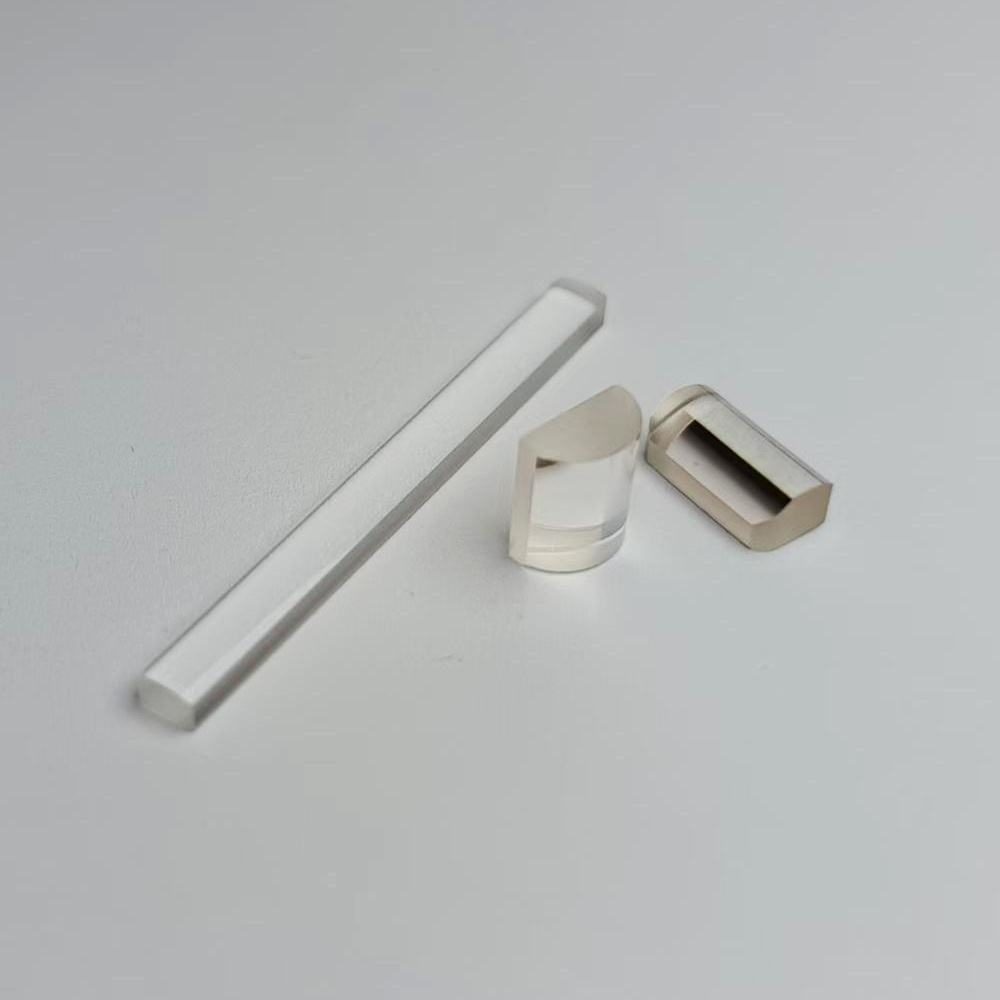

2 mm Glass Cylindrical Lens, AR Coated

Product description

This cylindrical concave lens is designed for applications in the 0.7-1.7 μm and 400-700 nm wavelength ranges, making it ideal for laser line generation and optical systems requiring precise beam convergence. With a clear aperture greater than 90%, it ensures optimal light transmission. The lens is made from durable glass, resistant to thermal changes, and is available in diameters ranging from 2.0 mm to 300.0 mm, accommodating a variety of optical setups.

Key Features

Diameter options from 2.0 mm to 300.0 mm for versatile applications.
Clear aperture greater than 90% for optimal light transmission.
Centration tolerance of <3’ ensures precise alignment.
Customizable with OEM, ODM, and OBM support for tailored solutions.
Dimension tolerance of +0.0/-0.1 mm for consistent batch quality.

Specification Summary

Item	Value
Material	Glass
Shape	Cylindrical
Diameter	2 mm
Surface Quality	1/4
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Concave Lens
Customized Support	OEM, ODM, OBM
Warranty	3 months
Weight	0.04
Dimension	1.0mm-200.0 mm
Focus Length	1mm-100000mm
Dimension Tolerance	+0.0/-0.1mm
Thickness Tolerance	±0.1mm
Centration	<3'
Clear Aperture	>90%
Bevelling	<0.2x45°

FAQ

What are the available custom sizes?

The lens can be customized with diameters from 2.0 mm to 300.0 mm and a focus length range of 1 mm to 100,000 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for specific requirements.
