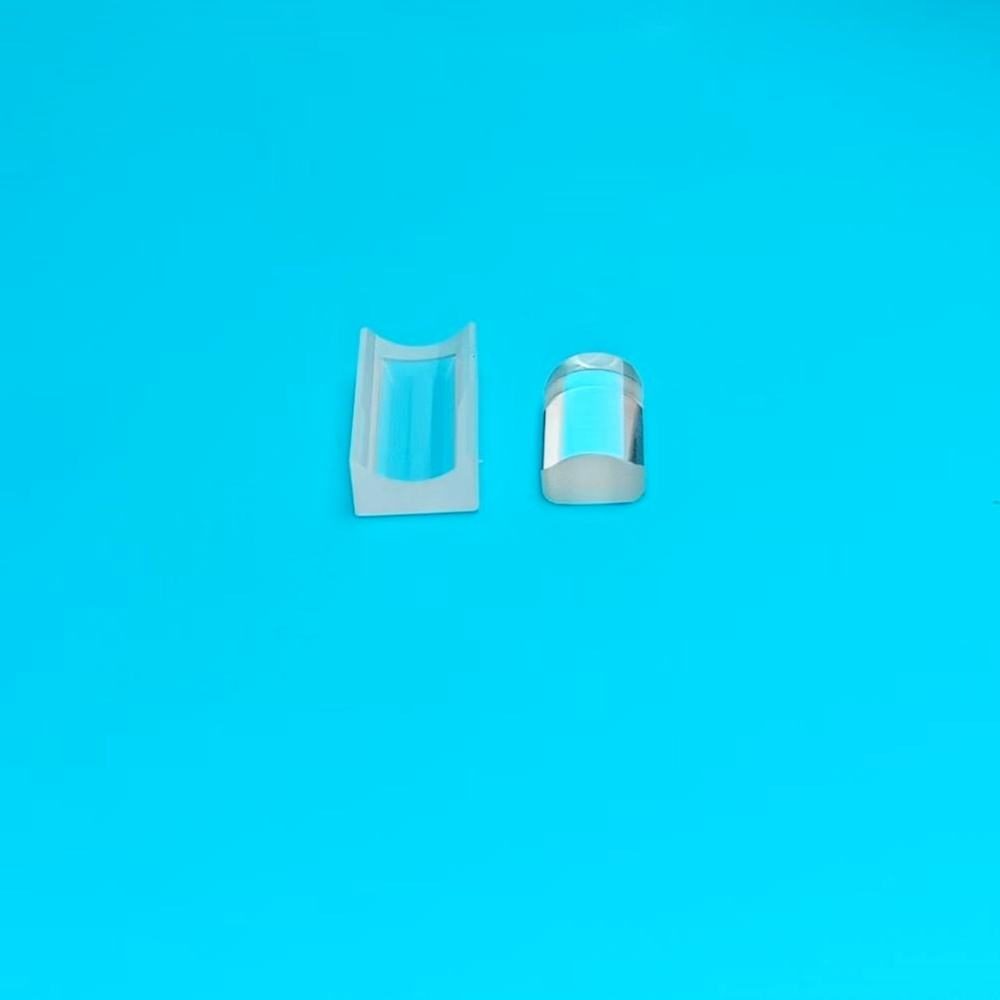

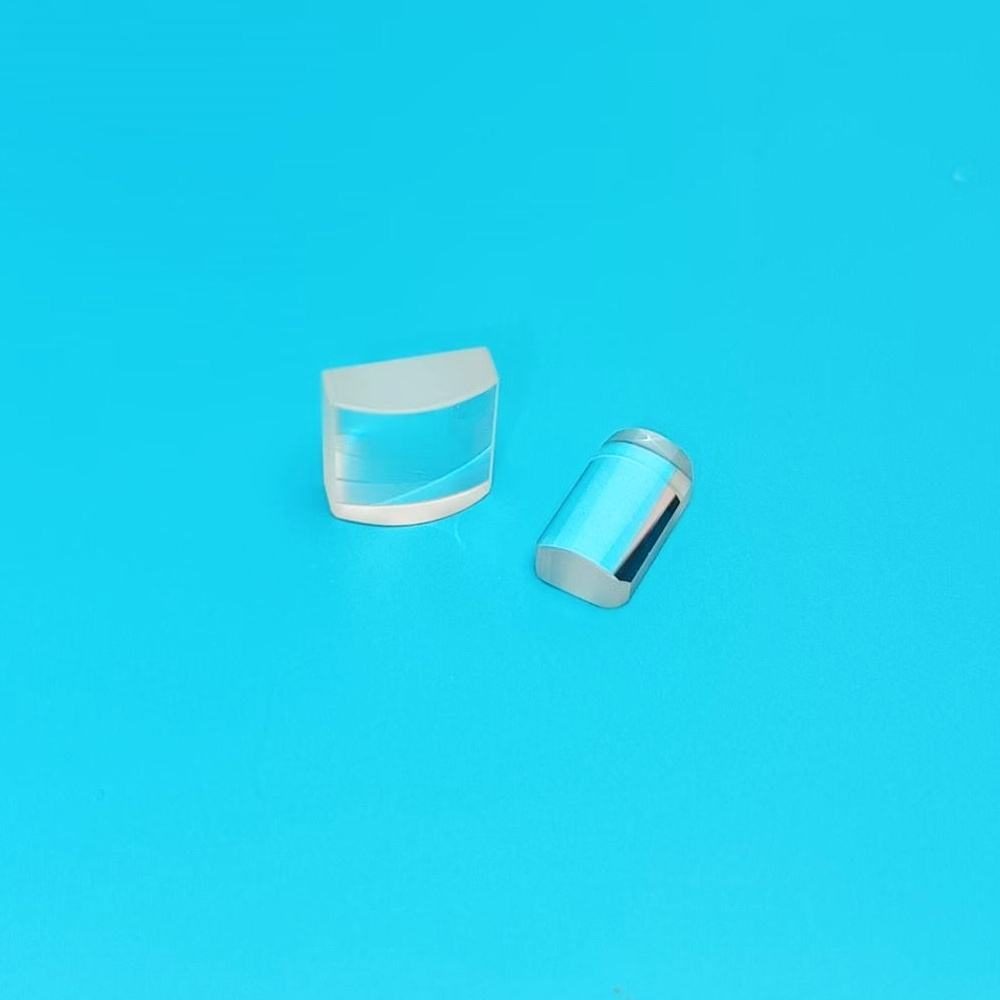

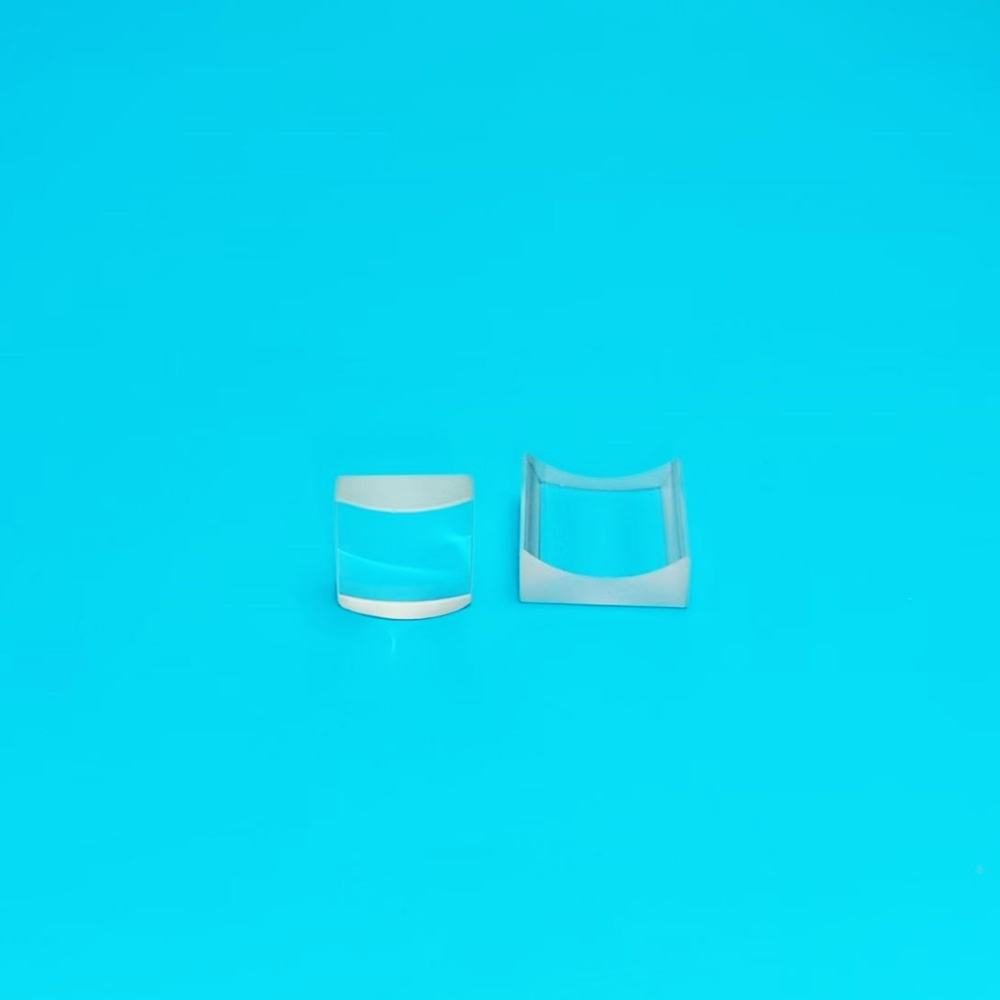

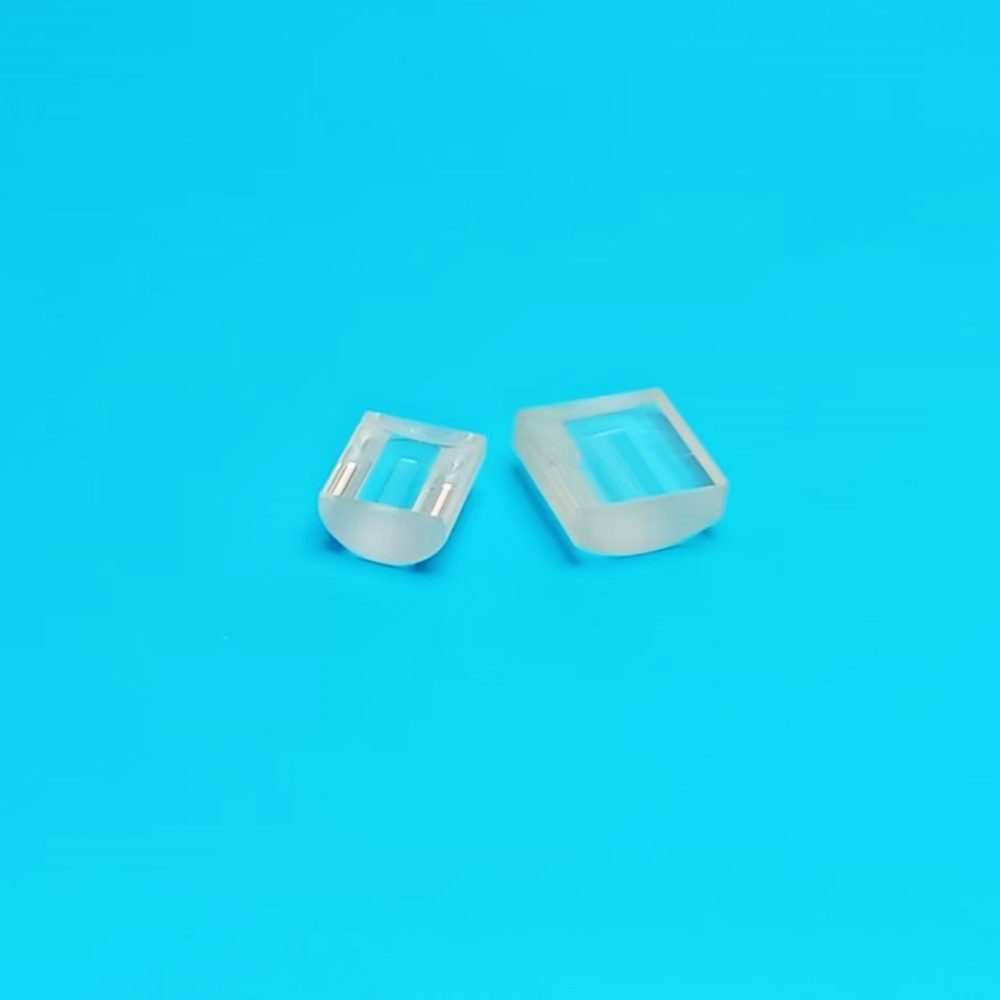

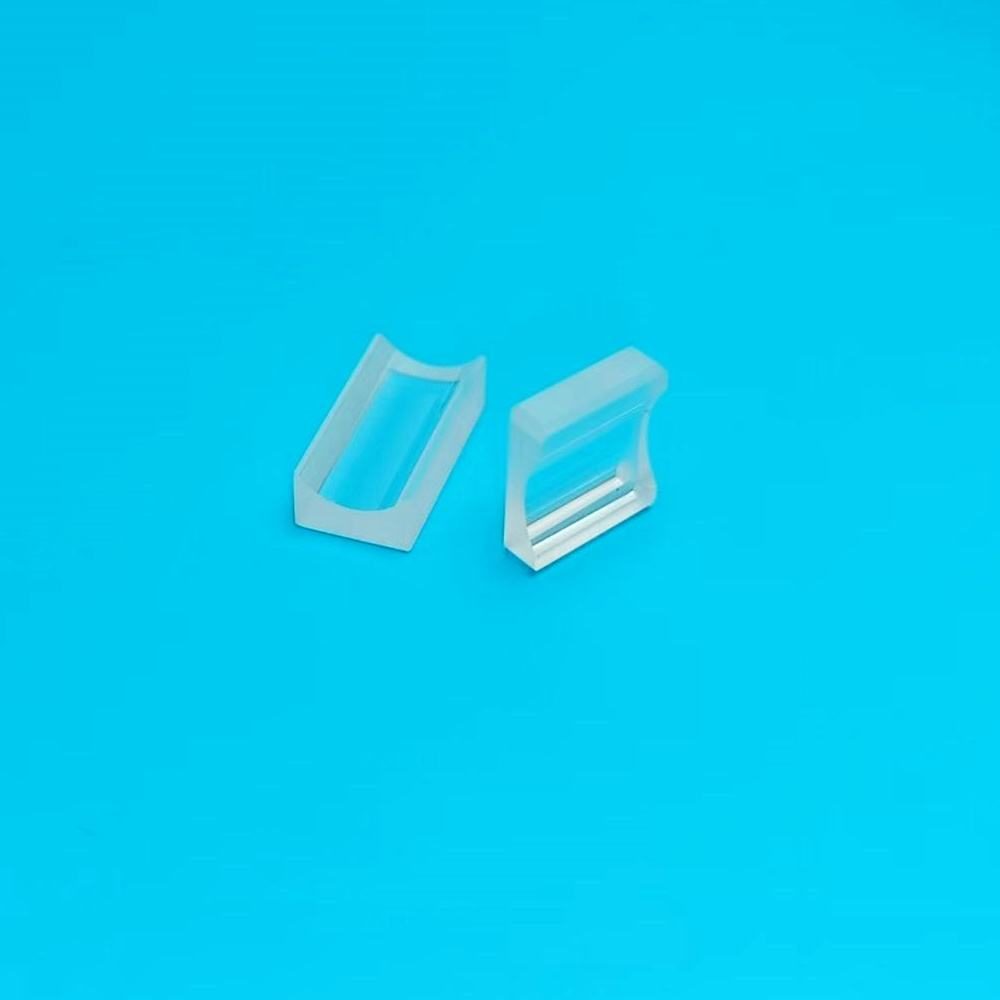

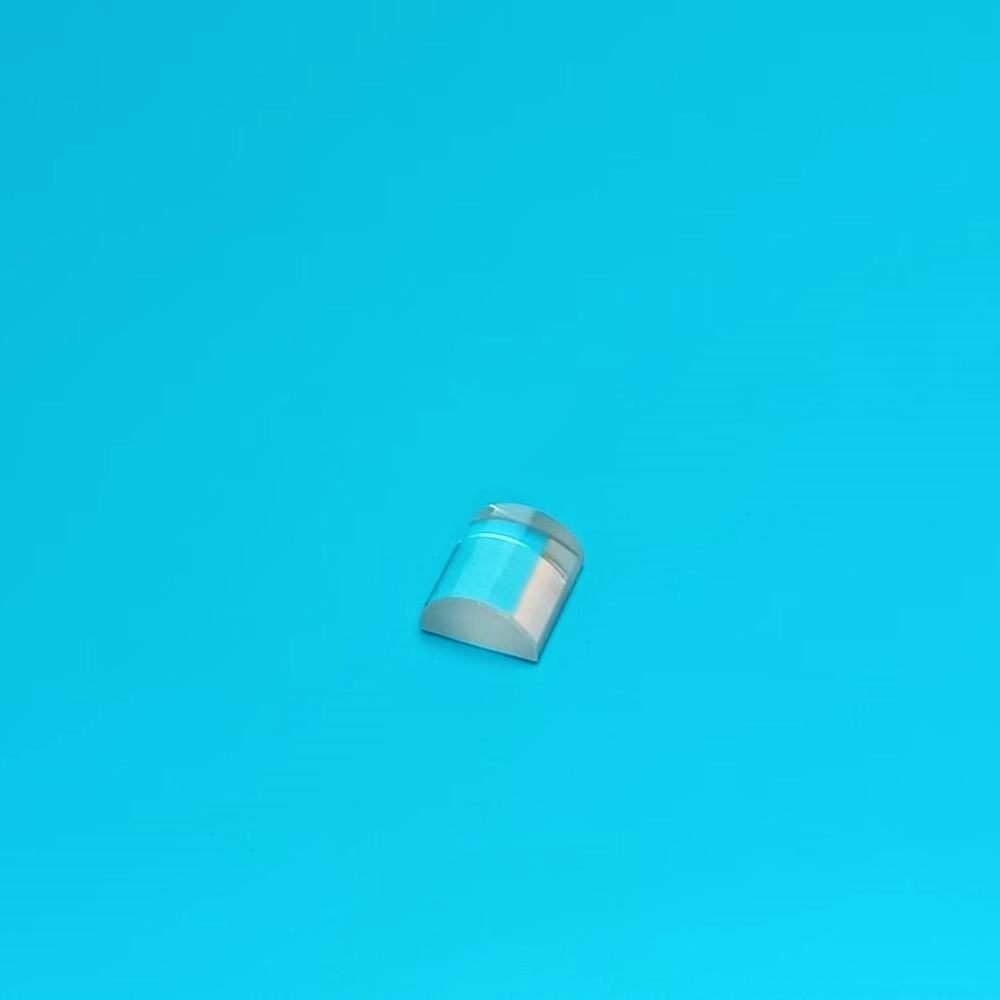

2 mm Glass Cylindrical Lens, AR Coated

Product description

This convex lens, made from high-quality glass, is designed to enhance optical performance in various applications. With a diameter range from 2.0 mm to 300.0 mm and a focus length from 1 mm to 100,000 mm, it is suitable for diverse optical devices. The anti-reflective coating ensures improved light transmission, making it ideal for applications in imaging, LIDAR, and laser technologies. The lens also boasts a surface quality of 1/4, providing excellent clarity and precision for demanding optical tasks.

Key Features

type: Convex Lens; benefit: Versatile for multiple optical applications.
type: Customizable Support; benefit: OEM, ODM, and OBM options available for tailored solutions.
type: Dimension Tolerance; benefit: Precise dimensions with +0.0/-0.1 mm tolerance for reliable performance.
type: Centration; benefit: <3’ centration ensures accurate alignment in optical systems.
type: Clear Aperture; benefit: >90% clear aperture for optimal light transmission.

Specification Summary

Item	Value
Material	Glass
Shape	Cylindrical
Diameter	2 mm
Surface Quality	1/4
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Convex Lens, Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.04
Dimension	1.0mm-200.0 mm
Focus Length	1mm-100000mm
Dimension Tolerance	+0.0/-0.1mm
Thickness Tolerance	±0.1mm
Centration	<3'
Clear Aperture	>90%
Bevelling	<0.2x45°

FAQ

What are the available custom sizes for this lens?

The lens diameter ranges from 2.0 mm to 300.0 mm, with a focus length from 1 mm to 100,000 mm.

What are the tolerances for dimensions and thickness?

Dimension tolerance is +0.0/-0.1 mm and thickness tolerance is ±0.1 mm.
