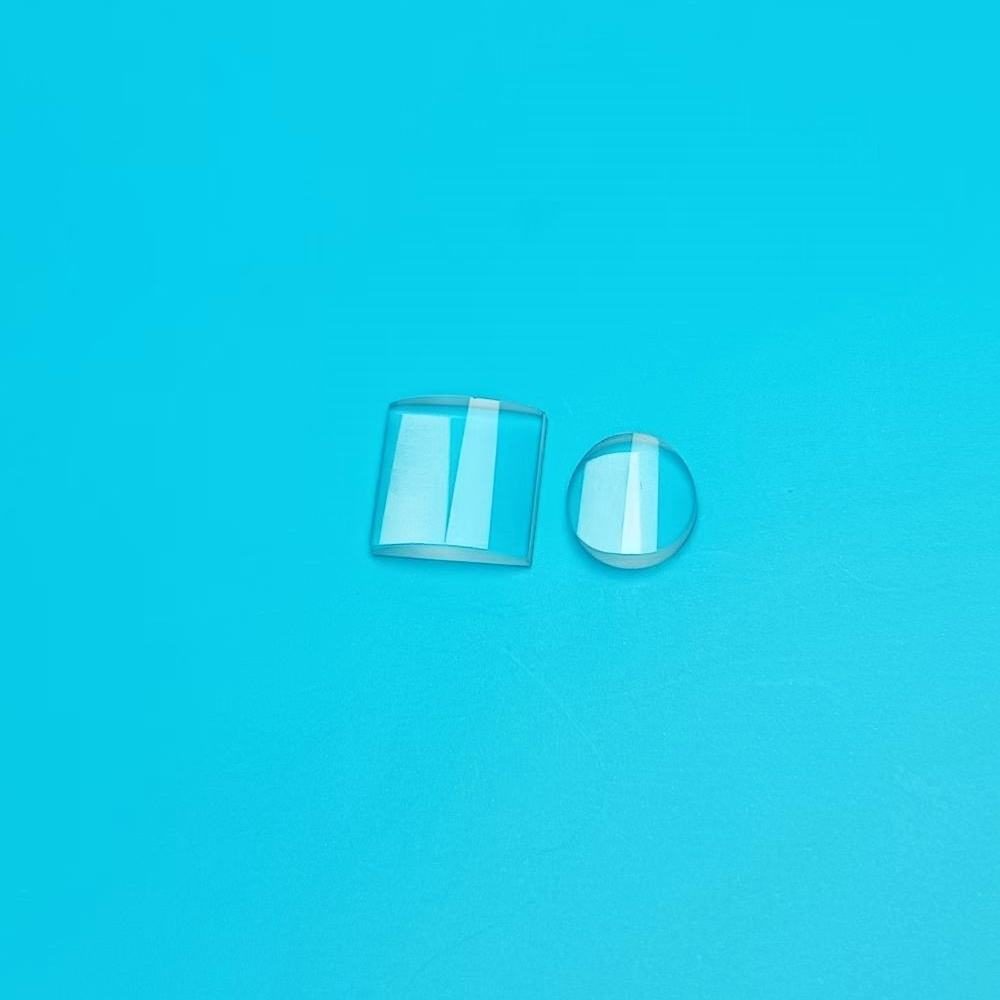

Custom Size Glass Cylindrical Lens, AR Coated
Precision convex lens for imaging applications, customizable sizes, and high optical clarity.
Core attributes
- Material
- Glass
- Shape
- Cylindrical
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Glass
- Shape
- Cylindrical
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This convex lens is designed for precision imaging applications, enhancing light focusing and providing excellent beam control across the 0.7-1.7 μm and 400-700 nm bands. With a surface quality of 20/10 and anti-reflective coatings, it minimizes glare and optimizes optical clarity. Ideal for R&D and procurement engineers seeking reliable optical components for various applications.
Key Features
- Focal length of 5.0 mm for precise imaging capabilities.
- Surface quality rated at 20/10 ensures high clarity and minimal distortion.
- Customizable dimensions from 1 mm to 300 mm with a tolerance of ±0.03 mm.
- Durable glass material suitable for diverse applications.
- OEM and ODM support available for tailored solutions.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Shape | Cylindrical |
| Focal Length | 5 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.01 |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
FAQ
What is the range of customizable sizes?
Custom sizes range from 1 mm to 300 mm.
What is the tolerance for the dimensions?
The dimension tolerance is ±0.03 mm.
