1 / 6Lenses

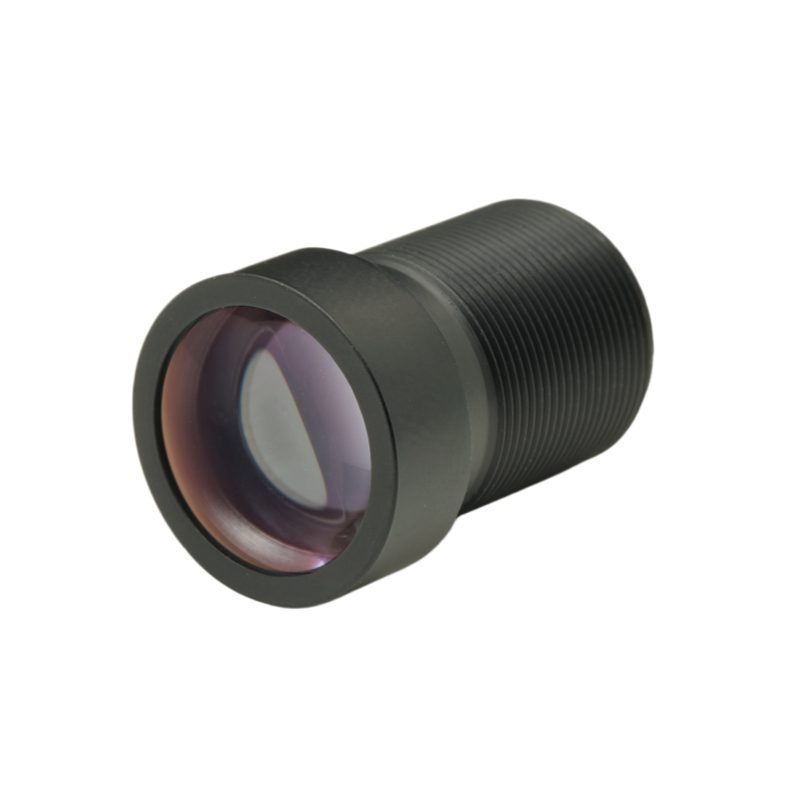

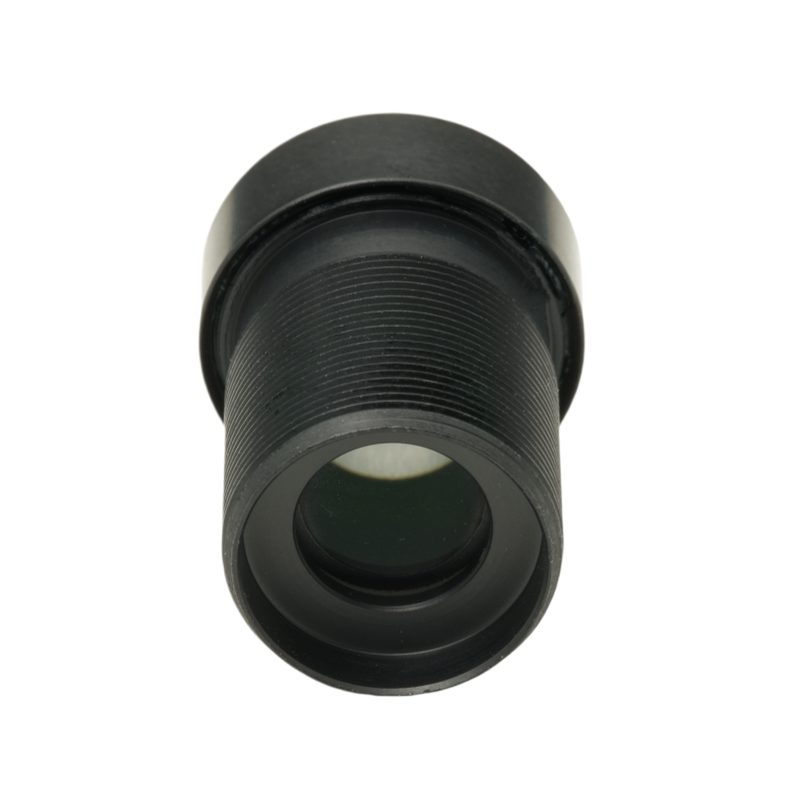

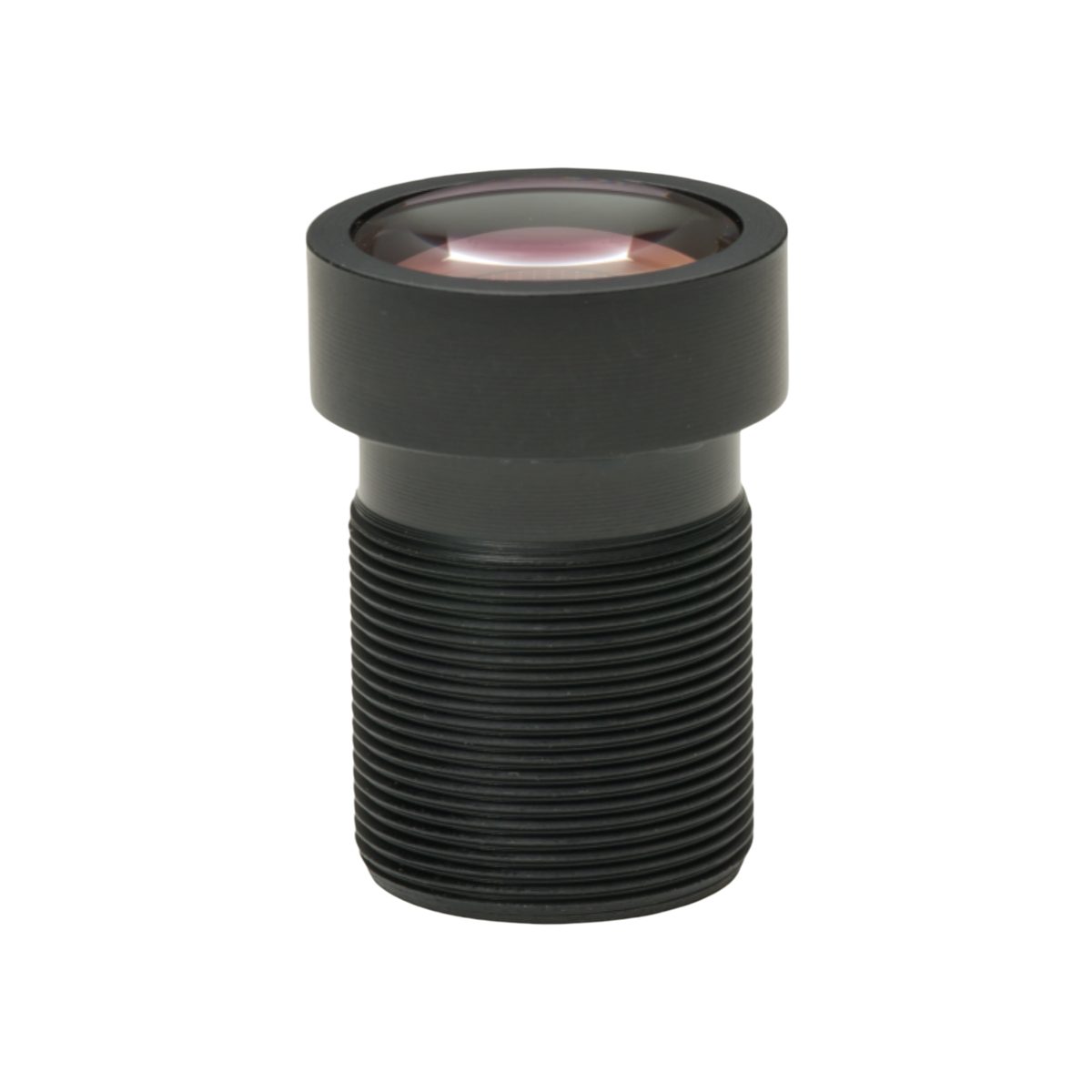

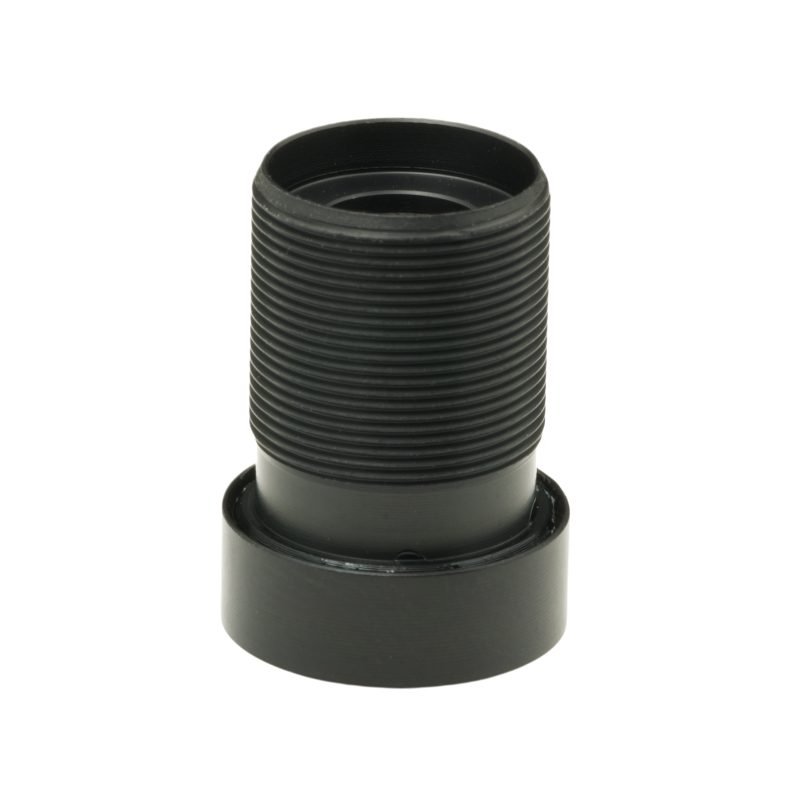

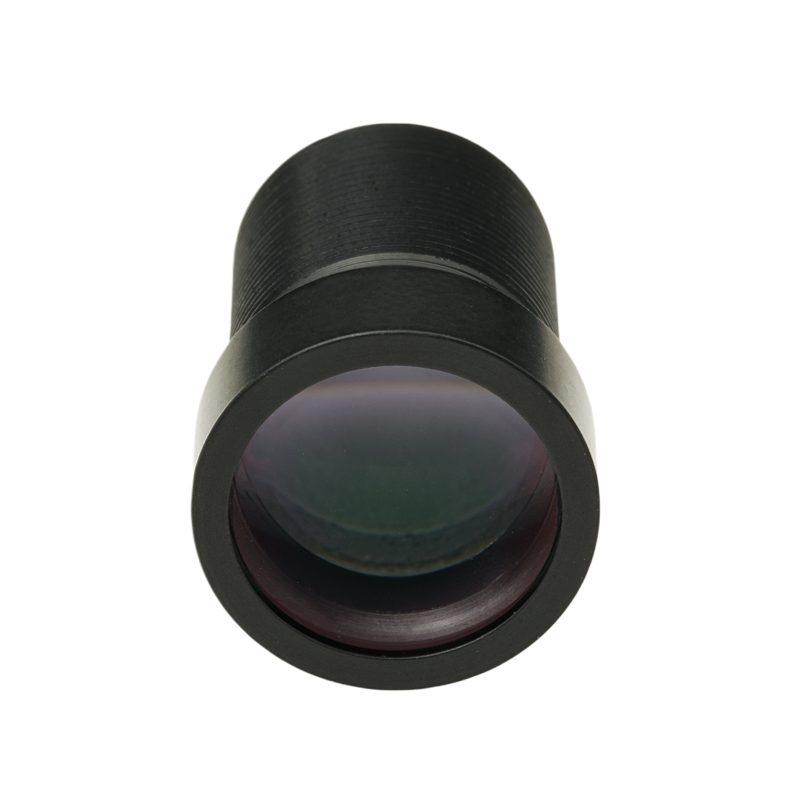

14x25 mm Glass Lens, AR Coated
25mm F2.0 Telephoto Lens for machine vision with low distortion, customizable options, and high-resolution performance.
Core attributes
- Material
- Glass
- Diameter
- 14 mm
- Focal Length
- 25 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Glass
- Diameter
- 14 mm
- Focal Length
- 25 mm
- Coating
- anti-reflective (AR)
Product description
The 25mm F2.0 Telephoto Lens is designed for machine vision and imaging applications, offering low distortion optical performance under 0.8%. Its high-resolution 4G glass construction ensures clarity and precision, making it ideal for automated optical inspection (AOI), inspection, and robotics. With a field of view of D18°, H15.5°, and V8.8°, this lens is suitable for various industrial camera setups, providing reliable imaging solutions in demanding environments.
Key Features
- Focal length of 25mm provides versatility for various imaging tasks.
- Low distortion under 0.8% enhances image quality for critical applications.
- Field of view of D18° / H15.5° / V8.8° accommodates diverse machine vision needs.
- Lightweight design at 5g ensures minimal impact on camera systems.
- Customizable options available for OEM and ODM projects.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 14 x 25 |
Applications
Machine Vision, Imaging

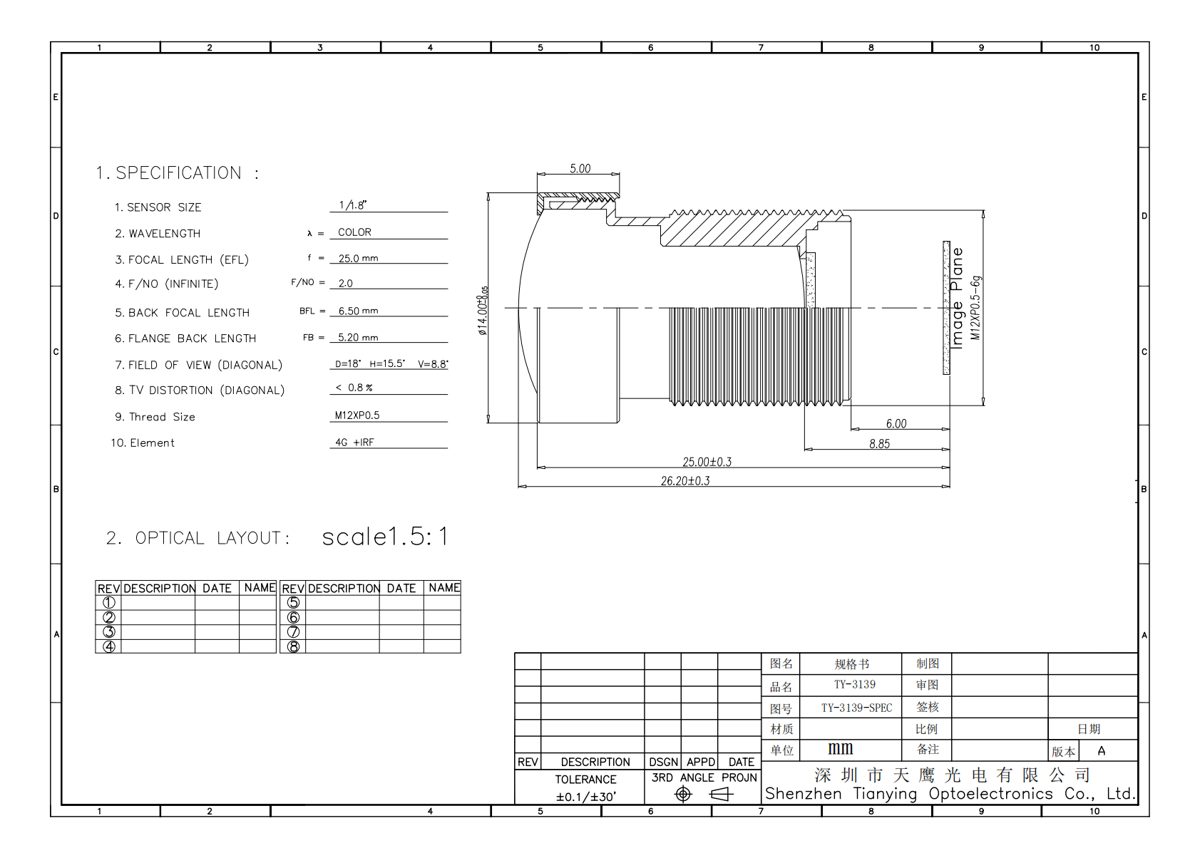

Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Diameter | 14 mm |
| Focal Length | 25 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Machine Vision Lenses |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | 5g |
| Field Of View | D18° / H15.5° / V8.8° |
FAQ
Are custom sizes available?
Yes, the lens can be customized to meet specific application requirements.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
