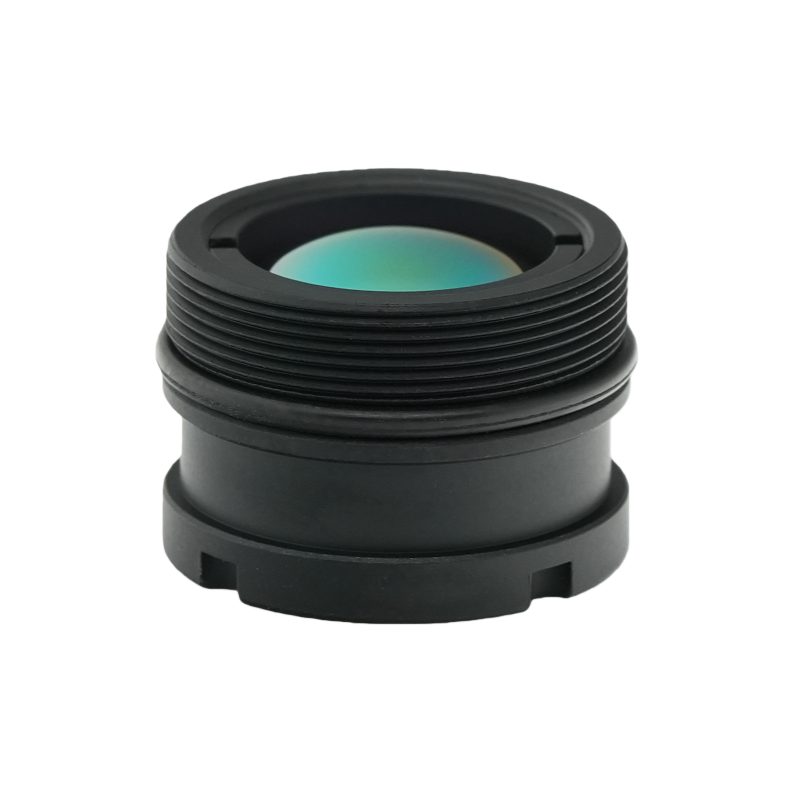

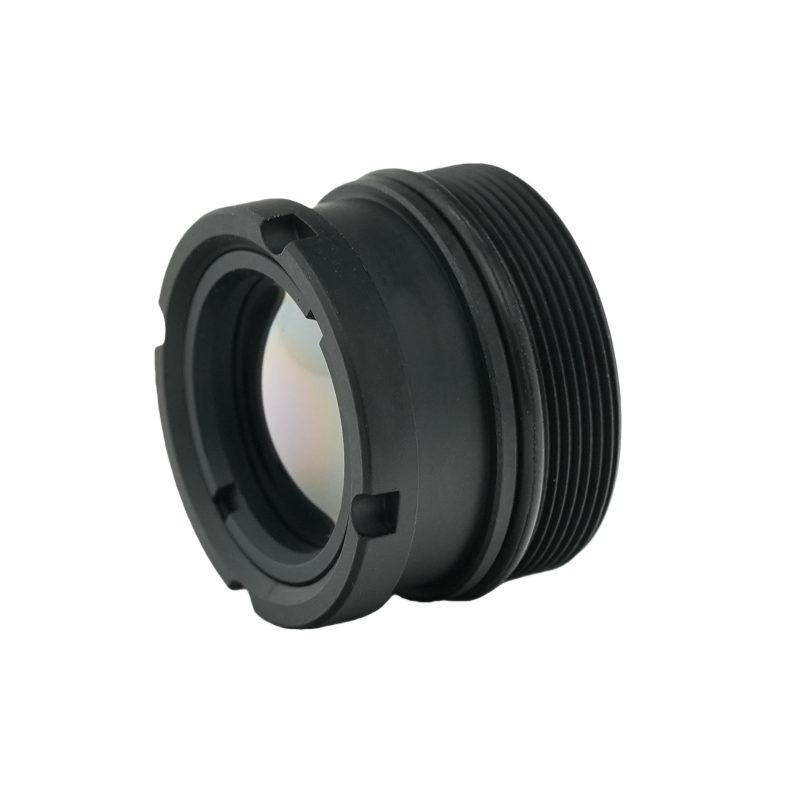

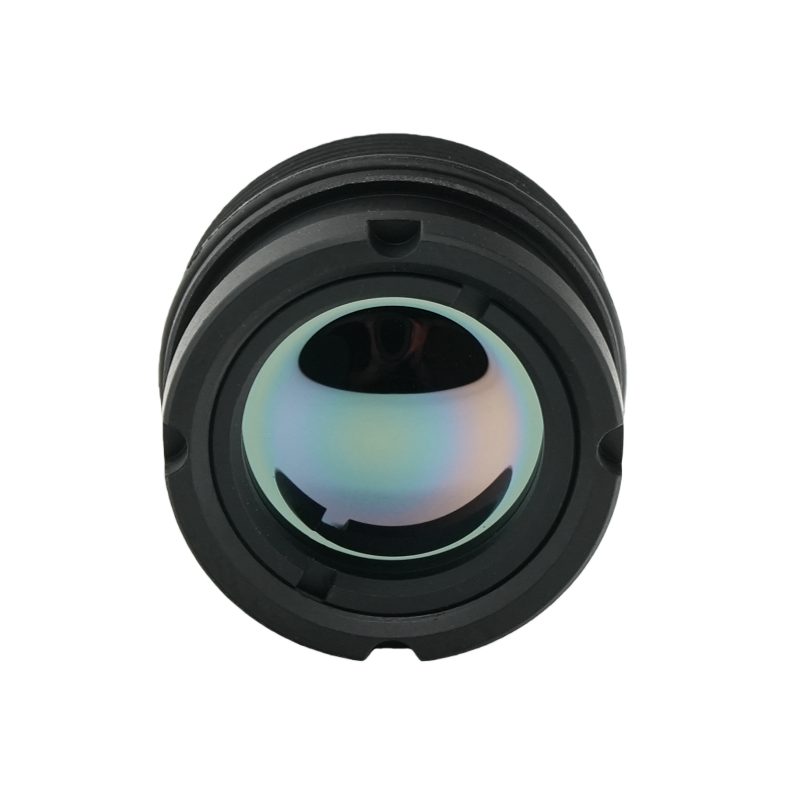

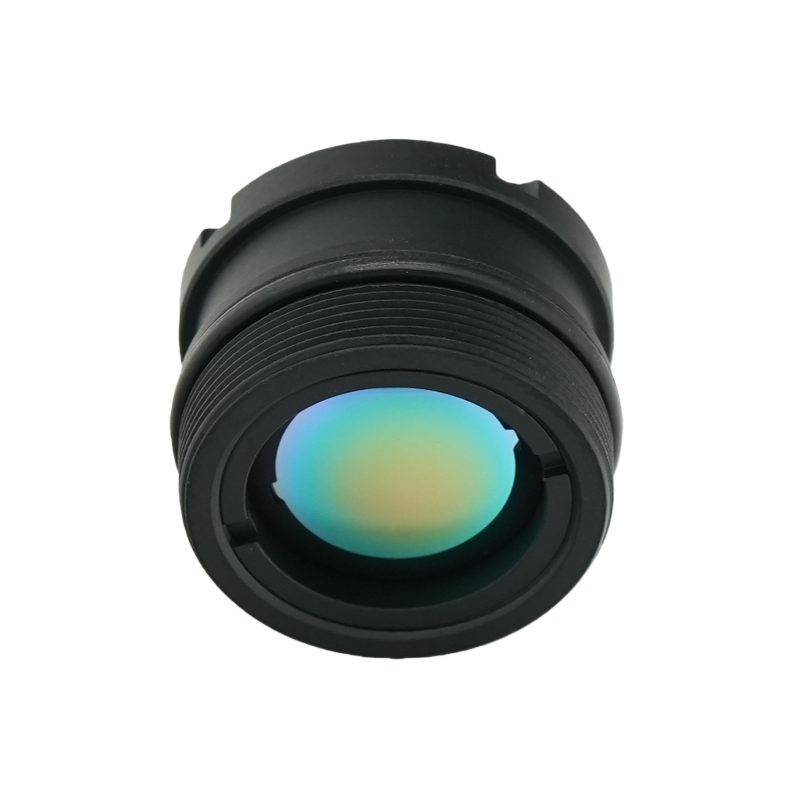

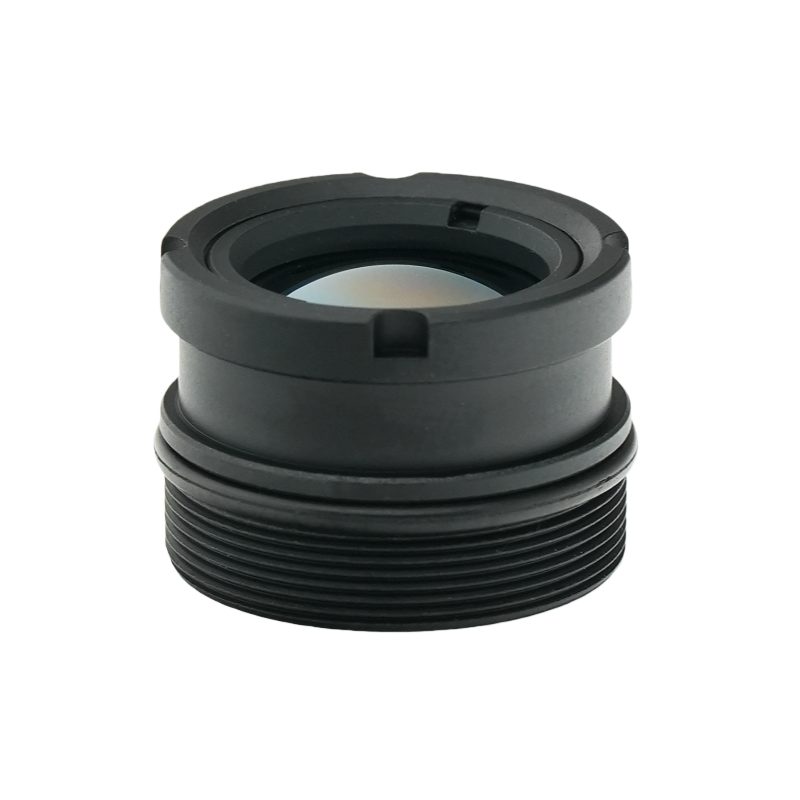

17.2x9.1 mm Glass Lens, AR Coated
9.1mm F1.0 thermal imaging lens for 8-14 μm applications, customizable options available, ideal for thermal cameras.
Core attributes
- Material
- Glass
- Diameter
- 17.2 mm
- Focal Length
- 9.1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm)
Product facts
Key attributes
- Material
- Glass
- Diameter
- 17.2 mm
- Focal Length
- 9.1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm)
Product description
This 9.1mm F1.0 thermal imaging lens is designed for applications in the 8-14 μm wavelength band, ideal for thermal imaging and imaging systems. With a compact design and high field of view, it offers excellent performance for thermal cameras. The lens is made from chalcogenide glass and features anti-reflective coatings, ensuring optimal transmittance in the infrared spectrum. Its customizable options and competitive pricing make it suitable for various R&D and industrial applications.
Key Features
- Focal length of 9.1mm for precise thermal imaging.
- Field of view of D62.4° / H48.1° / V38.5° enhances imaging capabilities.
- Lightweight design at 30g for easy integration into systems.
- Operating temperature range from -40°C to +80°C for versatile applications.
- OEM and ODM support available for custom solutions.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 17.2 x 9.1 |
| 20 x 13 |
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Diameter | 17.2 mm |
| Focal Length | 9.1 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Thermal Imaging Lenses |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | 30g |
| F Number | F1.0 |
| Field Of View | D62.4° / H48.1° / V38.5° |
| Operating Temperature | 40°C to +80°C |
FAQ
Can I get custom sizes?
Yes, variant sizes available include 17.2mm and 20.0mm diameters.
What is the minimum order quantity?
Minimum order quantity details are not specified; please inquire for specifics.
