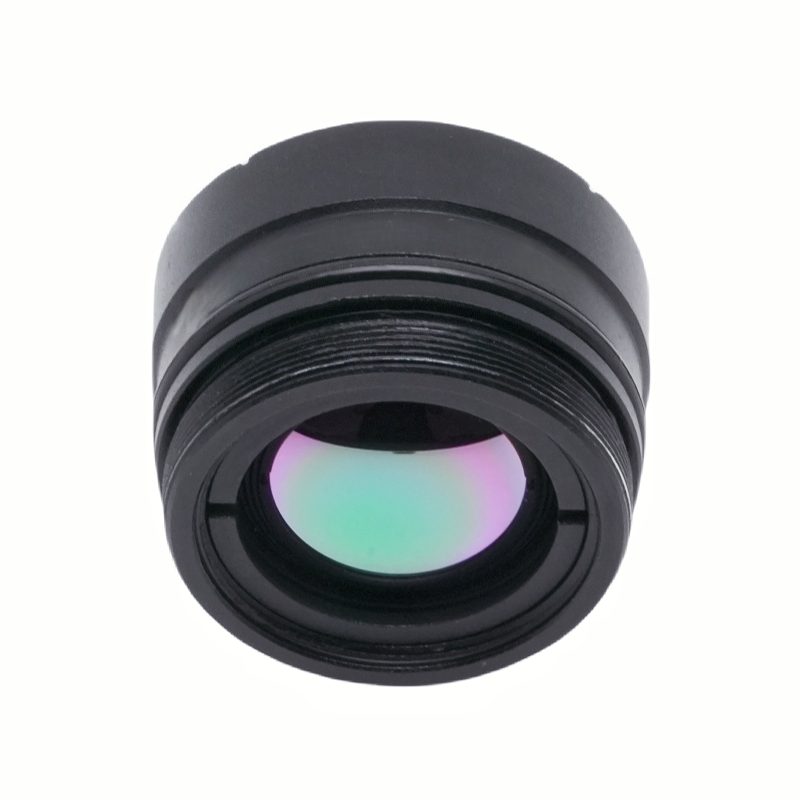

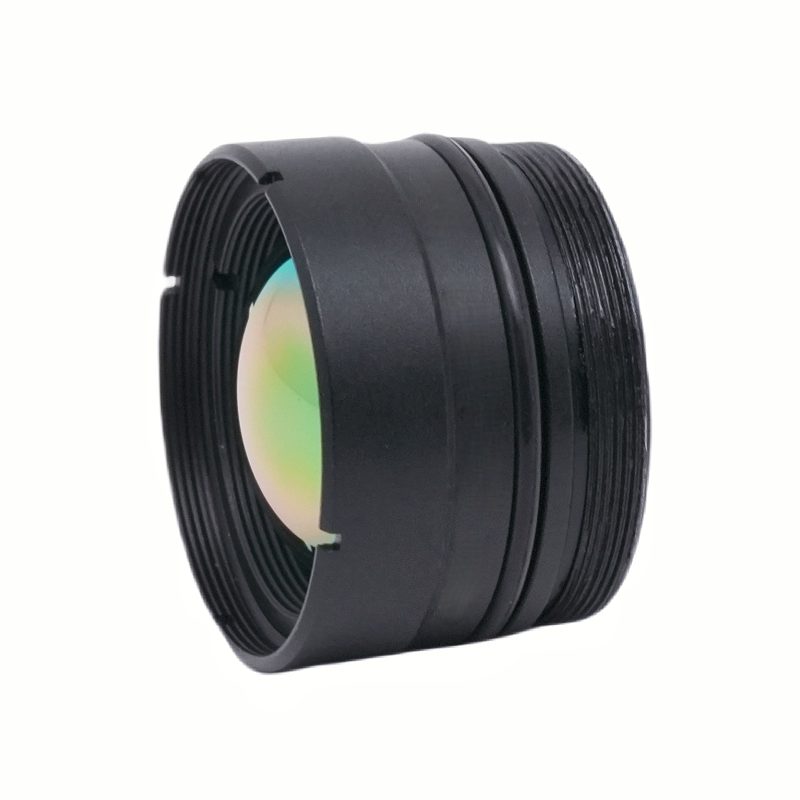

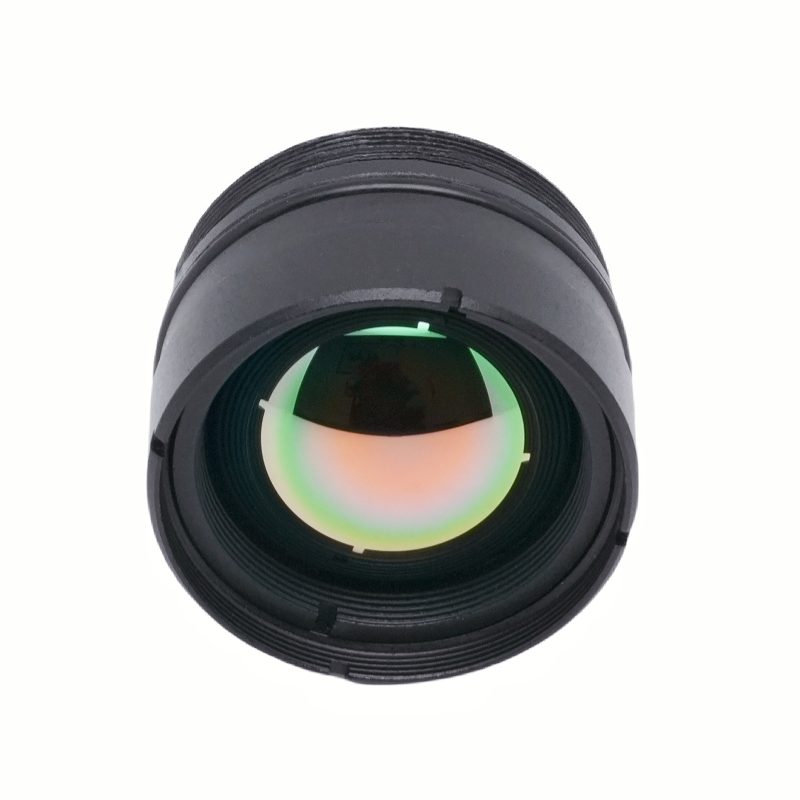

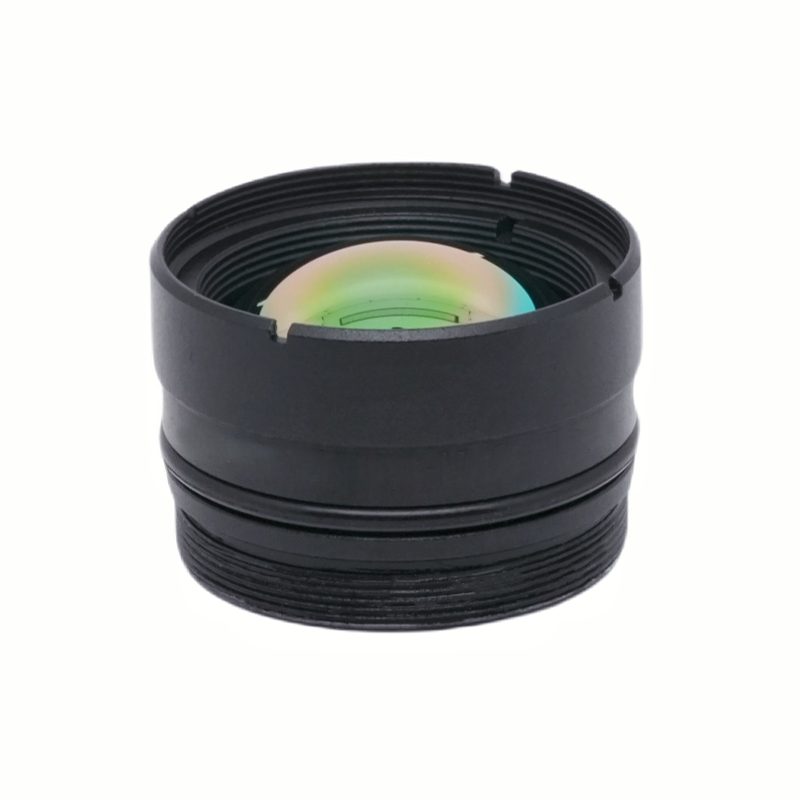

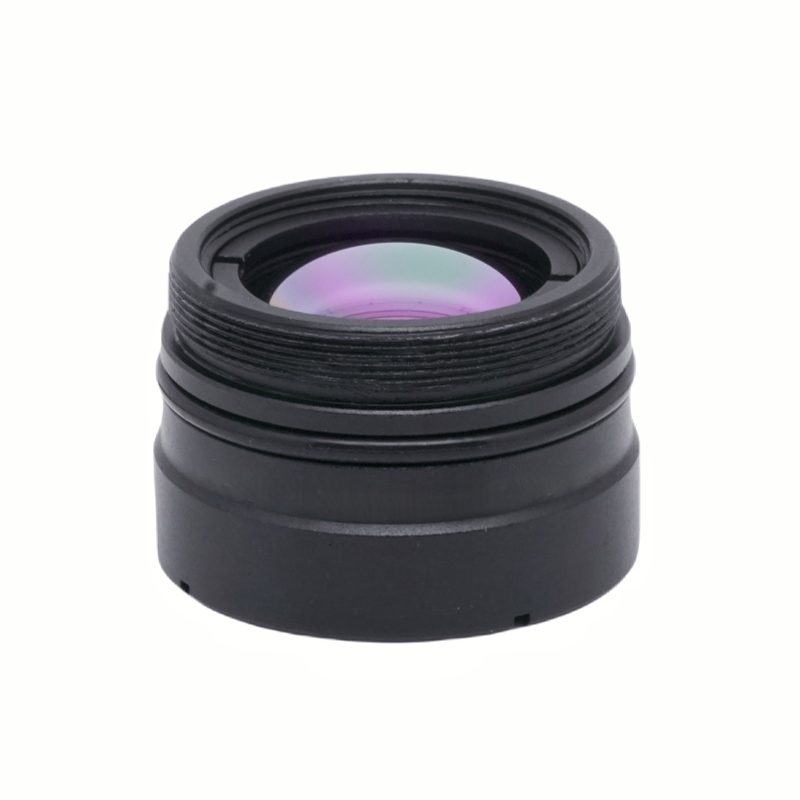

27x19 mm Glass Lens, AR Coated

Product description

This 19mm F1.0 thermal imaging lens is designed for applications in the 8-14 μm wavelength range, making it ideal for thermal imaging and imaging solutions. Constructed from chalcogenide glass and featuring anti-reflective coatings, it ensures optimal performance in demanding environments, with an operating temperature range of -40°C to +80°C. The lens is suitable for use with 640×512 12μm thermal cameras, providing a field of view of D16.5° / H13.5°. Custom sizes are available, ensuring fit for various applications.

Key Features

Focal length of 19.0 mm for precise thermal imaging.
F1.0 aperture for enhanced light-gathering capability.
Field of view of D16.5° / H13.5° for broad coverage.
Operating temperature range of -40°C to +80°C for versatility.
Customizable options available for OEM and ODM needs.

Available Sizes

Diameter x Focal Length (mm)
27 x 19

Applications

Thermal Imaging, Imaging

Specification Summary

Item	Value
Material	Glass
Diameter	27 mm
Focal Length	19 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)

Full Specifications

Parameter	Value
Type	Thermal Imaging Lenses
Customized Support	OEM, ODM
Warranty	1 Year
Weight	25.4g(0.90oz)
F Number	F1.0
Field Of View	D16.5° / H13.5°
Operating Temperature	40°C to +80°C

FAQ

Are custom sizes available?

Yes, the lens can be customized to fit specific application requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
