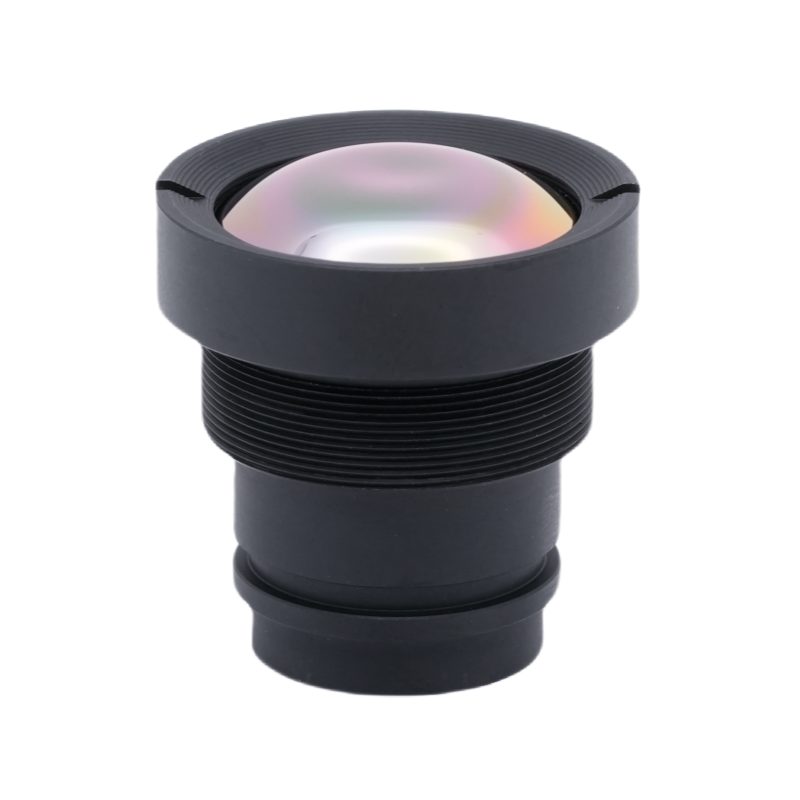

27x4.1 mm Glass Lens, AR Coated

Product description

This 4.1mm F1.0 thermal imaging lens is designed for applications in the 8-14 μm wavelength range, making it ideal for thermal imaging and imaging systems. Its compact design and high-performance chalcogenide glass optics ensure excellent image quality in demanding environments. The lens features a wide field of view (D130° / H102° / V83°) and operates effectively at temperatures from -40°C to +80°C, providing reliable performance for various thermal applications.

Key Features

Compatible with 640×512 12μm thermal imaging sensors, enhancing imaging capabilities.
F1.0 aperture allows for superior light transmission, improving low-light performance.
Wide field of view (D130° / H102° / V83°) for comprehensive scene capture.
Robust operating temperature range (-40°C to +80°C) ensures reliability in diverse environments.
Customizable options available through OEM and ODM support for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
27 x 4.1

Applications

Thermal Imaging, Imaging

Specification Summary

Item	Value
Material	Glass
Diameter	27 mm
Focal Length	4.1 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)

Full Specifications

Parameter	Value
Type	Thermal Imaging Lenses
Customized Support	OEM, ODM
Warranty	1 Year
Weight	25g
F Number	F1.0
Field Of View	D130° / H102° / V83°
Operating Temperature	40°C to +80°C

FAQ

What are the available custom sizes?

The lens is available in a variant size of 27.0mm diameter and 4.1mm focal length.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
