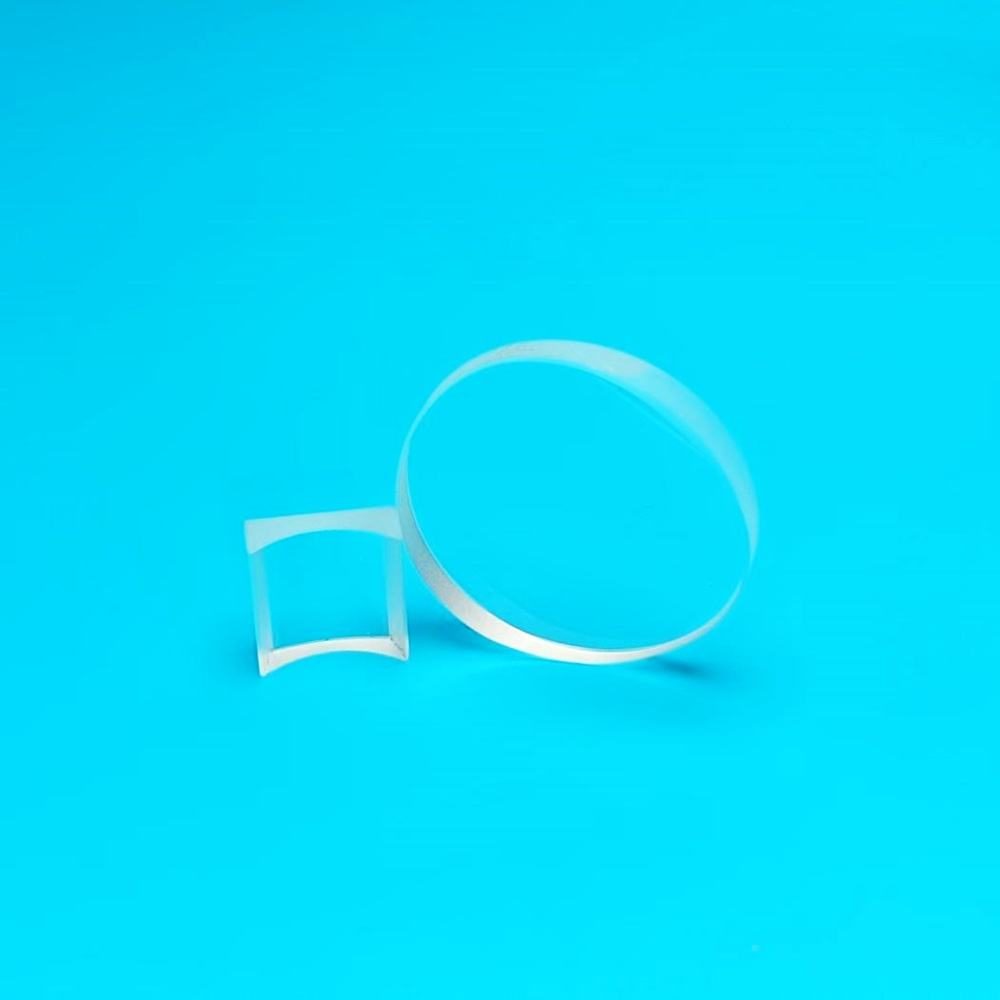

1x5 mm Glass Meniscus Lens, AR Coated

Product description

The meniscus lens is designed for high-precision imaging applications, particularly in semiconductor inspection. With a diameter range of 1.0 mm to 300.0 mm and a focal length of 5.0 mm, it ensures detailed inspections while minimizing glare thanks to its anti-reflective coating. The lens is suitable for a variety of imaging tasks, making it a versatile choice for R&D and procurement engineers in the optical components industry.

Key Features

Diameter range: 1.0 mm to 300.0 mm for versatile application fit.
Focal length of 5.0 mm ensures precise imaging at various distances.
Surface quality rated at 20/10 for optimal clarity and performance.
Anti-reflective coating reduces glare, enhancing image quality.
Customized support available for OEM and ODM projects.

Available Sizes

Diameter x Focal Length (mm)
150.5 x 5

Applications

Semiconductor, Imaging

Specification Summary

Item	Value
Material	Glass
Shape	Meniscus
Diameter	1 mm
Focal Length	5 mm
Surface Quality	20/10
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Meniscus Lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.01
Dimension	1mm-300mm
Dimension Tolerance	±0.03

FAQ

What are the available custom sizes?

Custom sizes range from 1.0 mm to 300.0 mm, with specific variants like 150.5 mm.

What is the dimension tolerance?

The dimension tolerance for the lens is ±0.03 mm.
