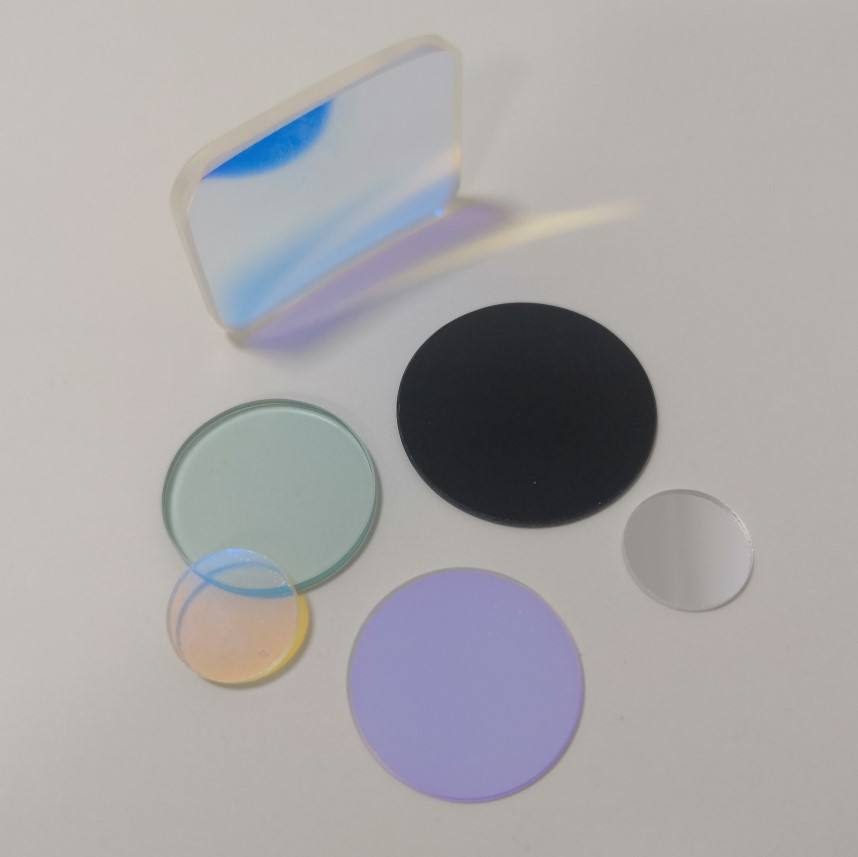

0.5 mm Glass Optical Mirror
High-performance dielectric HR mirror for astronomy with 20/10 surface quality and customizable sizes.
Core attributes
- Material
- Glass
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product facts
Key attributes
- Material
- Glass
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product description
This high-performance dielectric HR mirror is designed for astronomical applications, providing exceptional surface quality and flatness. With a surface quality rating of 20/10 and a clear aperture of 98%, it ensures minimal distortion and optimal reflectance for precise imaging. The mirror is customizable to fit specific requirements, making it suitable for various telescope designs and research setups.
Key Features
- Surface quality of 20/10 for superior imaging clarity
- Dielectric HR coating for enhanced reflectance and durability
- Surface flatness ranging from Lambda/10 to Lambda/4 for wavefront accuracy
- Clear aperture of 98% to maximize light transmission
- Customizable sizes available to meet specific application needs
Applications
Astronomy
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Size | 0.5 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | dielectric HR |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Diameter Tolerance | 0.0/-0.1mm |
| Surface Flatness | Lambda/10~ Lambda/4 |
| Color | Transparent |
| Clear Aperture | 98% |
FAQ
What is the size range for customization?
The mirror can be customized in sizes ranging from 0.5 mm to 500 mm.
What are the tolerances for diameter?
The diameter tolerance is 0.0/-0.1 mm.
