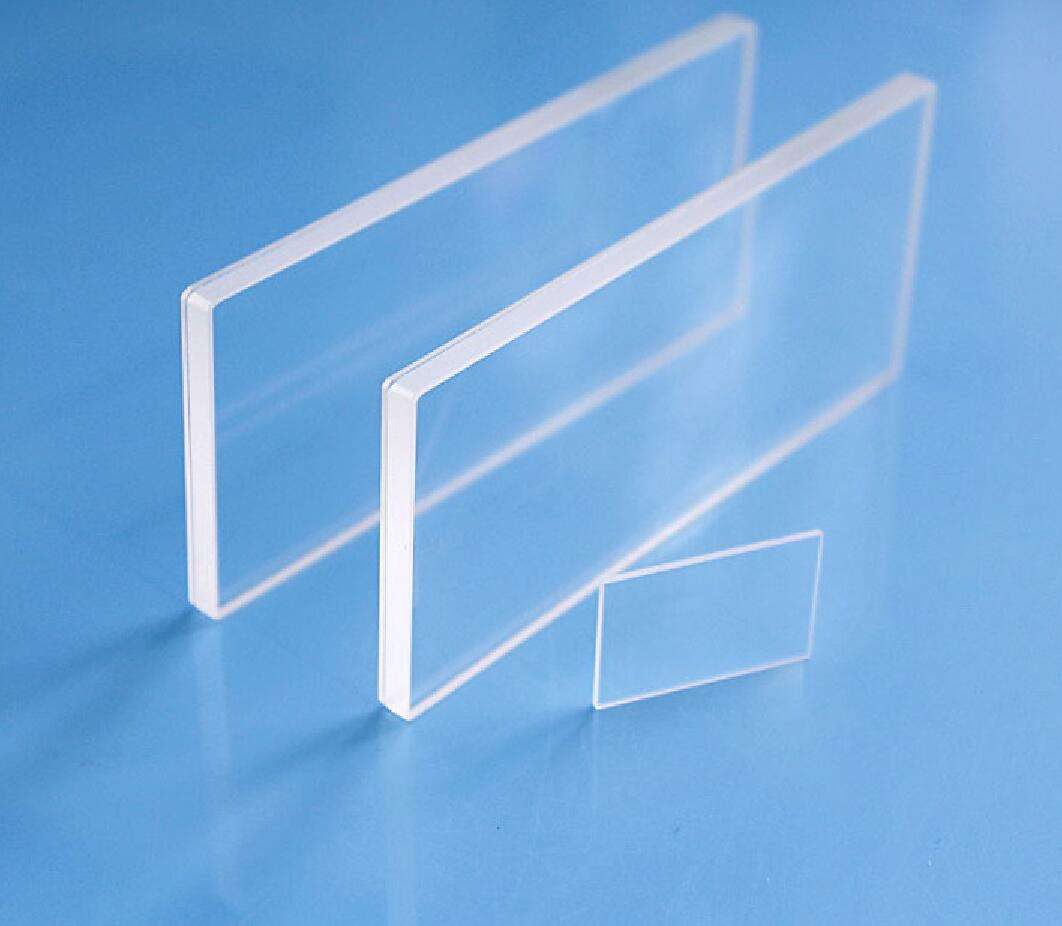

50x10 mm Glass Optical Window, AR Coated

Product description

This flat glass optical component is engineered for applications requiring high clarity and minimal glare. With anti-reflective coatings and a flat design, it is suitable for use in various optical systems, ensuring optimal performance across a range of wavelengths. The available sizes of 50mm, 75mm, and 100mm in diameter, combined with a consistent thickness of 10mm, make it adaptable for diverse applications in IR imaging, LIDAR, and medical devices.

Key Features

Diameter options: 50mm, 75mm, 100mm for versatile application fit.
Thickness of 10mm ensures stability and durability in optical setups.
Surface flatness of Lambda/10 enhances image quality and precision.
Anti-reflective coatings reduce glare, improving visibility.
Diameter tolerance of +/-0.1mm guarantees consistent performance.

Available Sizes

Diameter x Thickness (mm)
75 x 10

Specification Summary

Item	Value
Material	Glass
Diameter	50 mm
Thickness	10 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Flat Glass
Warranty	1 Year
Weight	0.05
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+/-0.1mm
Surface Flatness	Lambda/10
Clear Aperture	80%~95%
Parallelism	+/- 3 '
Bevel	0.2x45

FAQ

What are the available custom sizes?

Custom sizes include a variant of 75mm diameter with a thickness of 10mm.

What is the thickness tolerance?

The thickness tolerance is +/-0.1mm, ensuring precision in applications.
