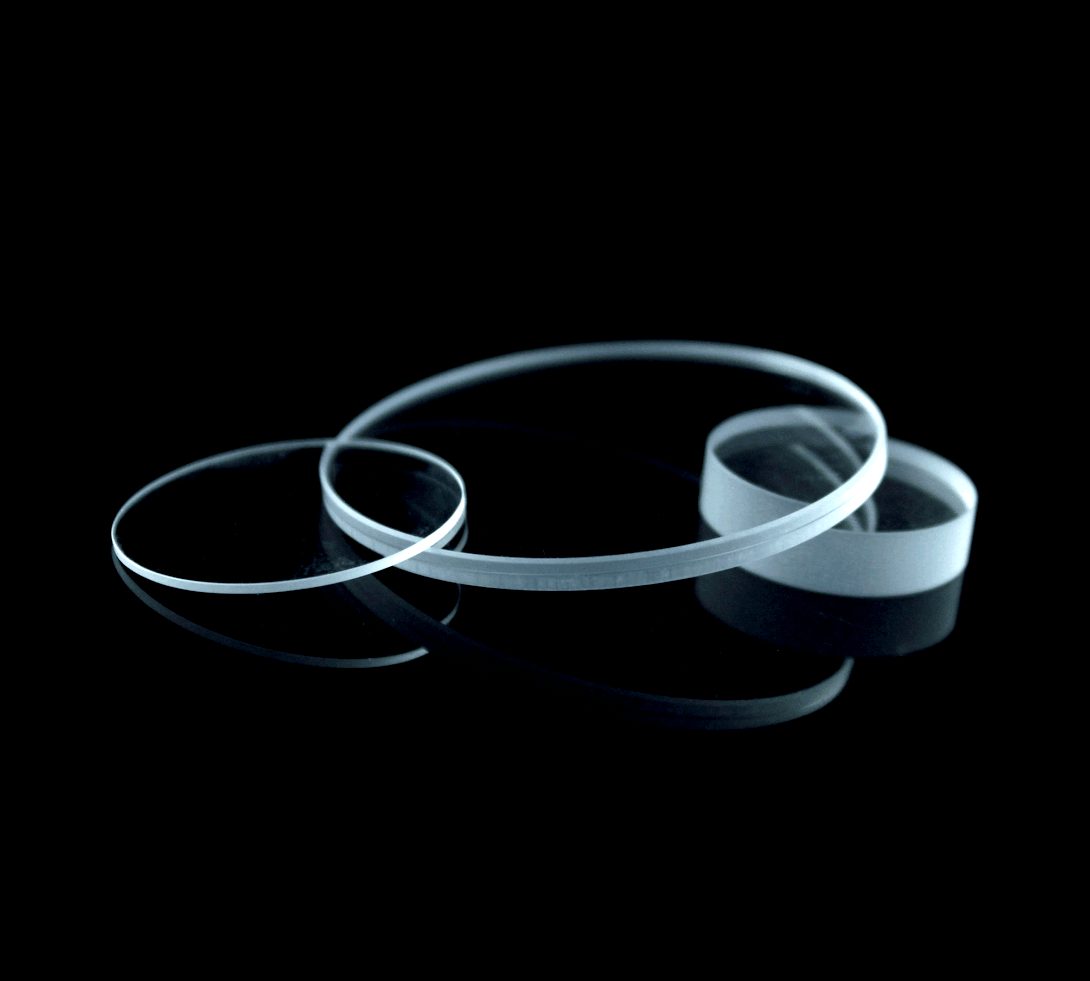

57x15 mm Glass Optical Window, AR Coated

Product description

This flat glass window is designed for thermal imaging applications, providing enhanced clarity and reduced glare through its anti-reflective coating. With a diameter of 57 mm and a thickness of 15 mm, it offers precise optical performance. The glass is suitable for environments requiring durability and consistent optical quality, making it an ideal choice for R&D and procurement engineers in IR imaging and related fields.

Key Features

Diameter: 57 mm, ensuring compatibility with standard thermal imaging systems.
Thickness: 15 mm, providing robust structural integrity.
Surface Flatness: Lambda/10, enhancing image clarity and reducing distortion.
Diameter Tolerance: +/- 0.1 mm, ensuring precise fit in applications.
Anti-Reflective Coating, minimizing glare for improved visibility.

Available Sizes

Diameter x Thickness (mm)
57 x 15
77 x 7

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Glass
Diameter	57 mm
Thickness	15 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Flat Glass
Warranty	1 Year
Weight	0.05
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+/-0.1mm
Surface Flatness	Lambda/10
Clear Aperture	80%~95%
Parallelism	+/- 3 '
Bevel	0.2x45

FAQ

Can I get custom sizes?

Yes, variant sizes include options of 57.0 mm x 15.0 mm and 77.0 mm x 7.0 mm.

What are the tolerances for this product?

Diameter tolerance is +/- 0.1 mm and thickness tolerance is also +/- 0.1 mm.
