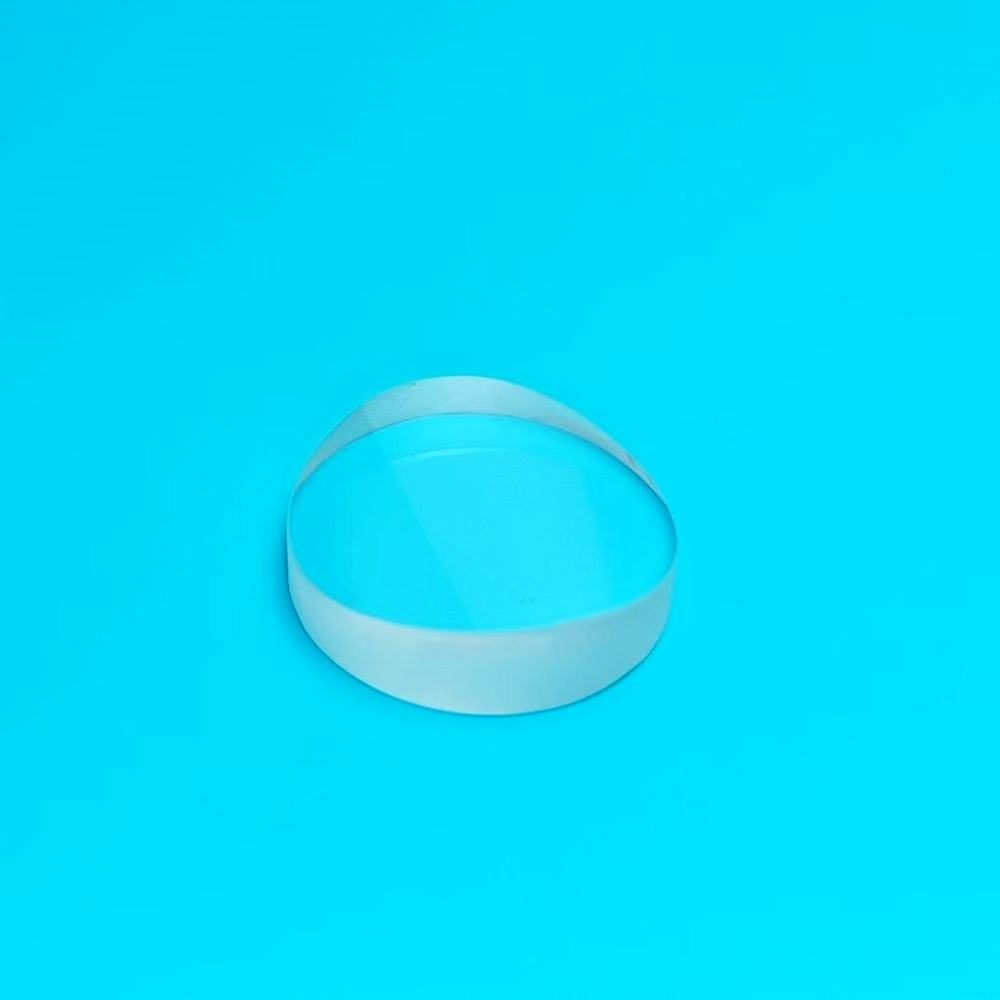

50x5 mm Glass Plano-concave Lens, AR Coated

Product description

The plano-concave lens is designed for applications requiring beam divergence and image reduction in the near-infrared spectrum, specifically within the 0.7-1.7 μm range. With a diameter of 50 mm and a focal length of 5 mm, this lens is suitable for various optical systems, including LIDAR and medical devices. Its high surface quality of 20/10 ensures minimal distortion, making it ideal for precision applications.

Key Features

Diameter: 50 mm for compatibility with standard optical systems.
Focal Length: 5 mm allows for effective beam divergence.
Surface Quality: 20/10 ensures high clarity and minimal distortion.
Coating: Anti-reflective (AR) coating enhances transmittance.
Customizable: Available in OEM and ODM options for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
50 x 5

Specification Summary

Item	Value
Material	Glass
Shape	Plano-concave
Diameter	50 mm
Focal Length	5 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Convex Lens, Plano Convex Lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.01
Dimension	1mm-300mm
Dimension Tolerance	±0.03

FAQ

What are the available custom sizes?

The lens is available in a diameter of 50 mm with a focal length of 5 mm, and can be customized between 1 mm to 300 mm.

What is the tolerance for dimensions?

The dimension tolerance for this lens is ±0.03 mm.
