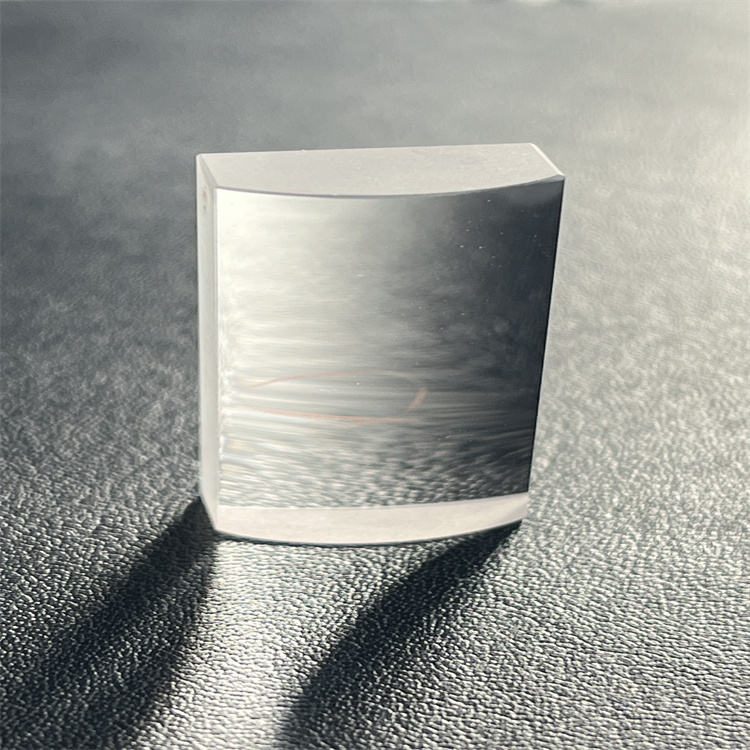

0.5x150 mm Glass Plano-convex Lens, AR Coated

Product description

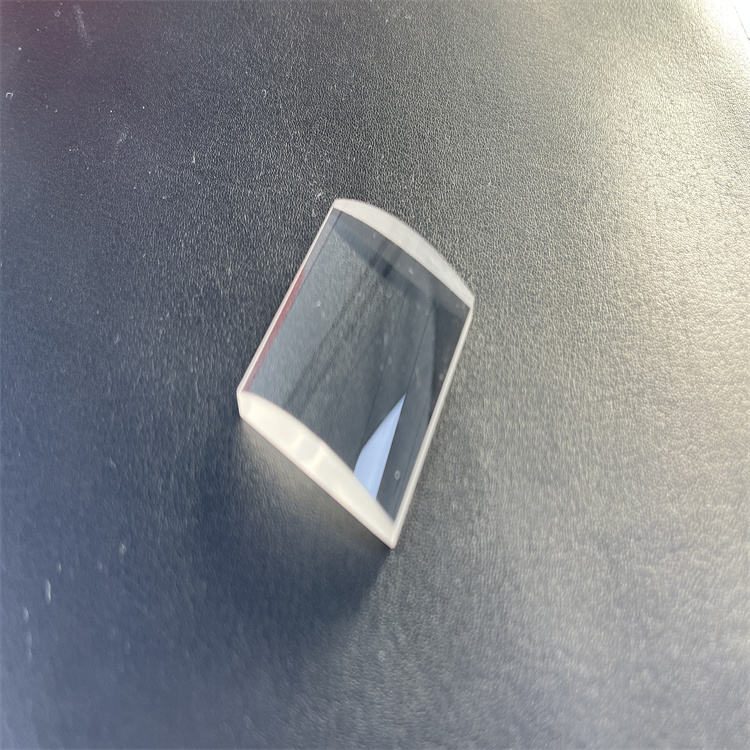

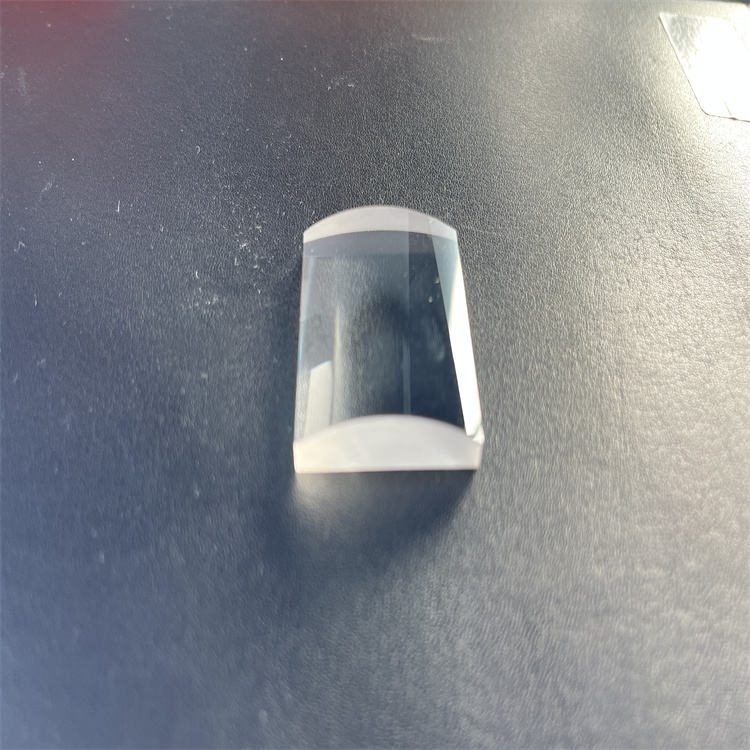

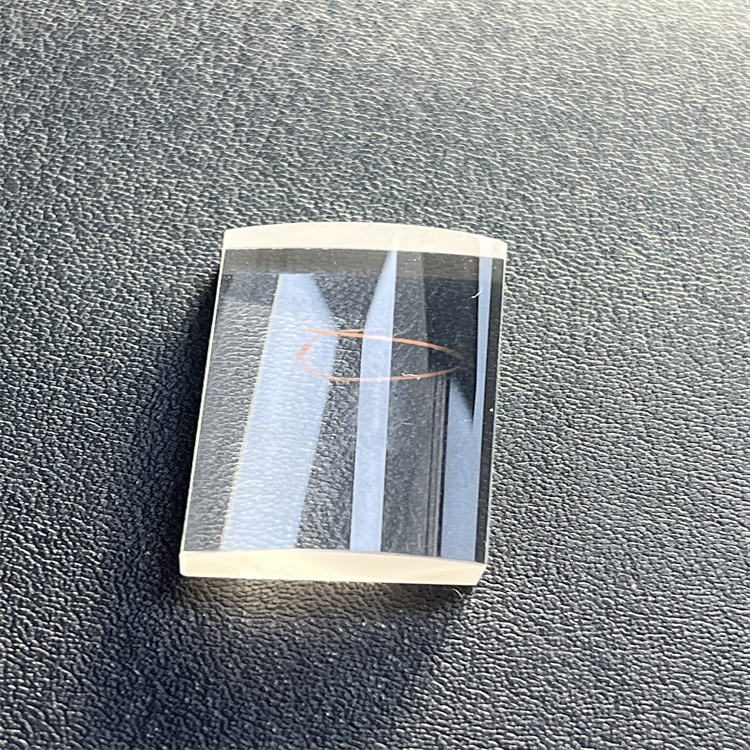

This plano-convex cylindrical lens is engineered for applications requiring precise one-dimensional light shaping, ideal for imaging systems. With a focal length of 150.0 mm and a diameter range from 0.45 mm to 400.0 mm, it effectively focuses light to generate laser lines or modify image aspect ratios. The lens features anti-reflective coatings and meets stringent surface quality standards of 40/20, ensuring high performance in demanding environments.

Key Features

Focal length of 150.0 mm for effective light focusing.
Diameter range from 0.45 mm to 400.0 mm, accommodating various applications.
Surface quality of 40/20 ensures minimal distortion in imaging.
Customizable with OEM and ODM support for tailored solutions.
Centration accuracy of <3 arc minutes for precise alignment.

Available Sizes

Diameter x Focal Length (mm)
200.2 x 150

Applications

Imaging

Specification Summary

Item	Value
Material	Glass
Shape	Plano-convex
Diameter	0.5 mm
Focal Length	150 mm
Surface Quality	40/20
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Cylindrical Lens
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.02
Design Wavelength	546.1nm or as request
Diameter Tolerance	±0.1mm
Centration	<3 arc minutes
Clear Aperture	> 90%
Flatness	L/4

FAQ

Can I get custom sizes for this lens?

Yes, the lens is customizable with variant sizes available, including 200.2 mm and 150.0 mm.

What are the tolerances for diameter?

The diameter tolerance for this lens is ±0.1 mm.
