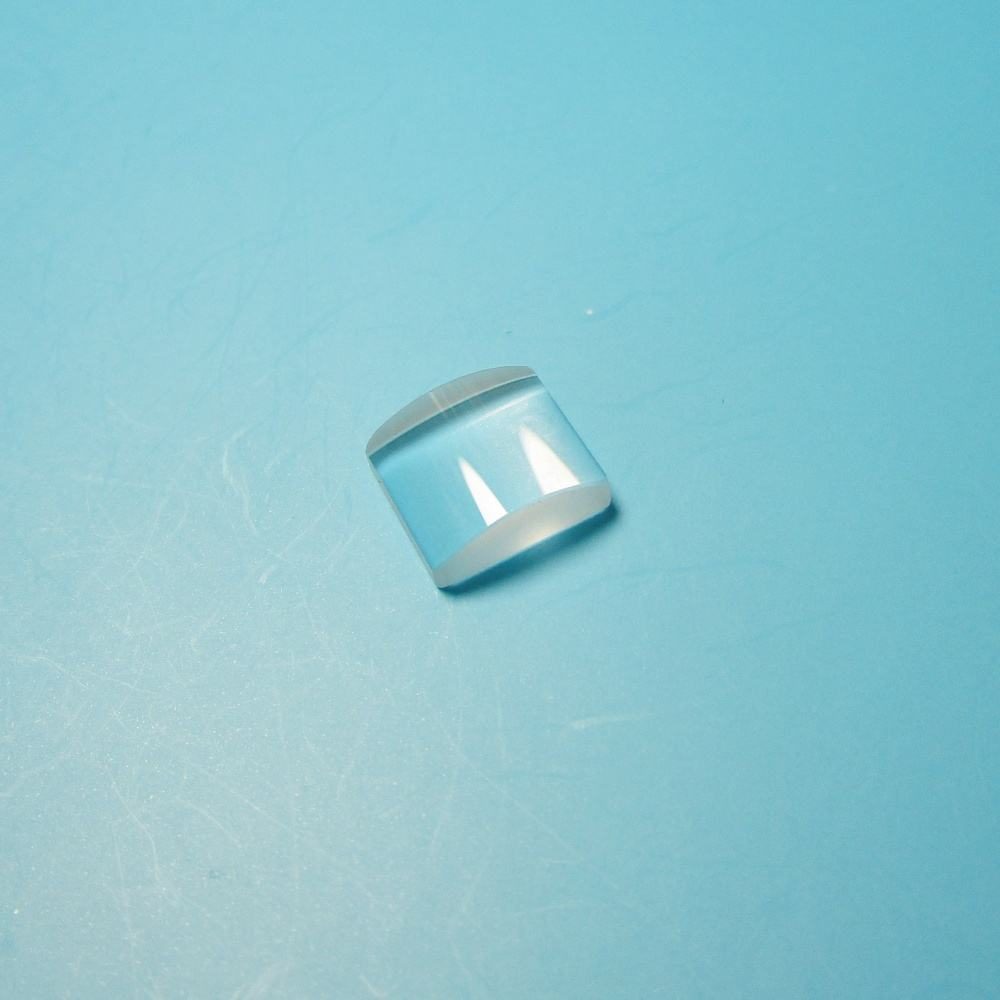

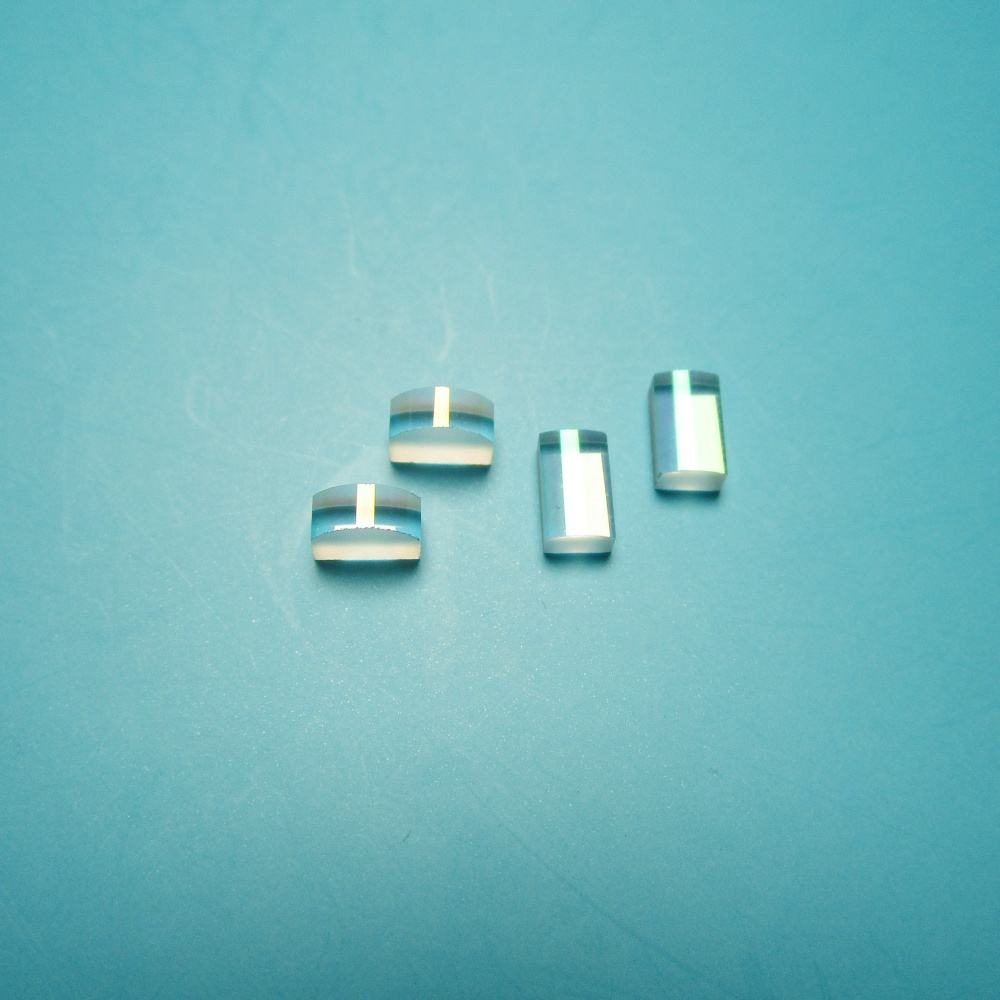

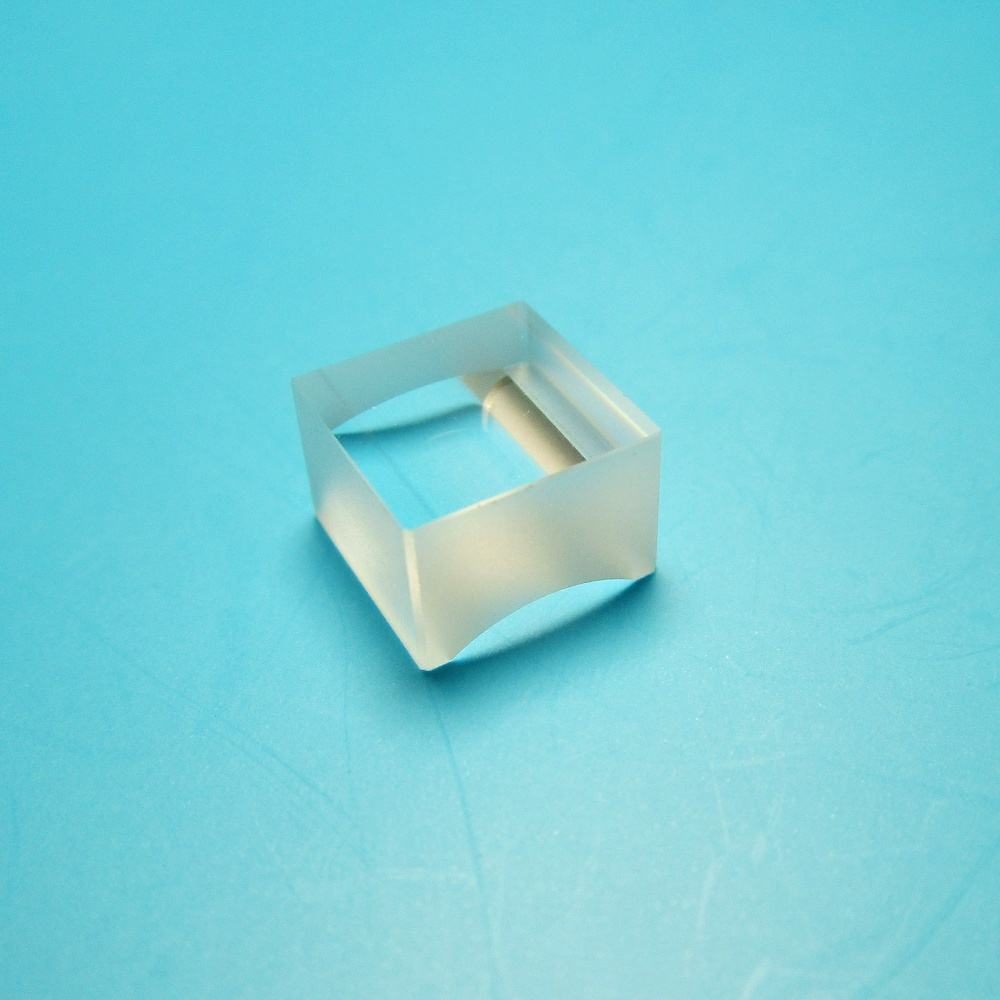

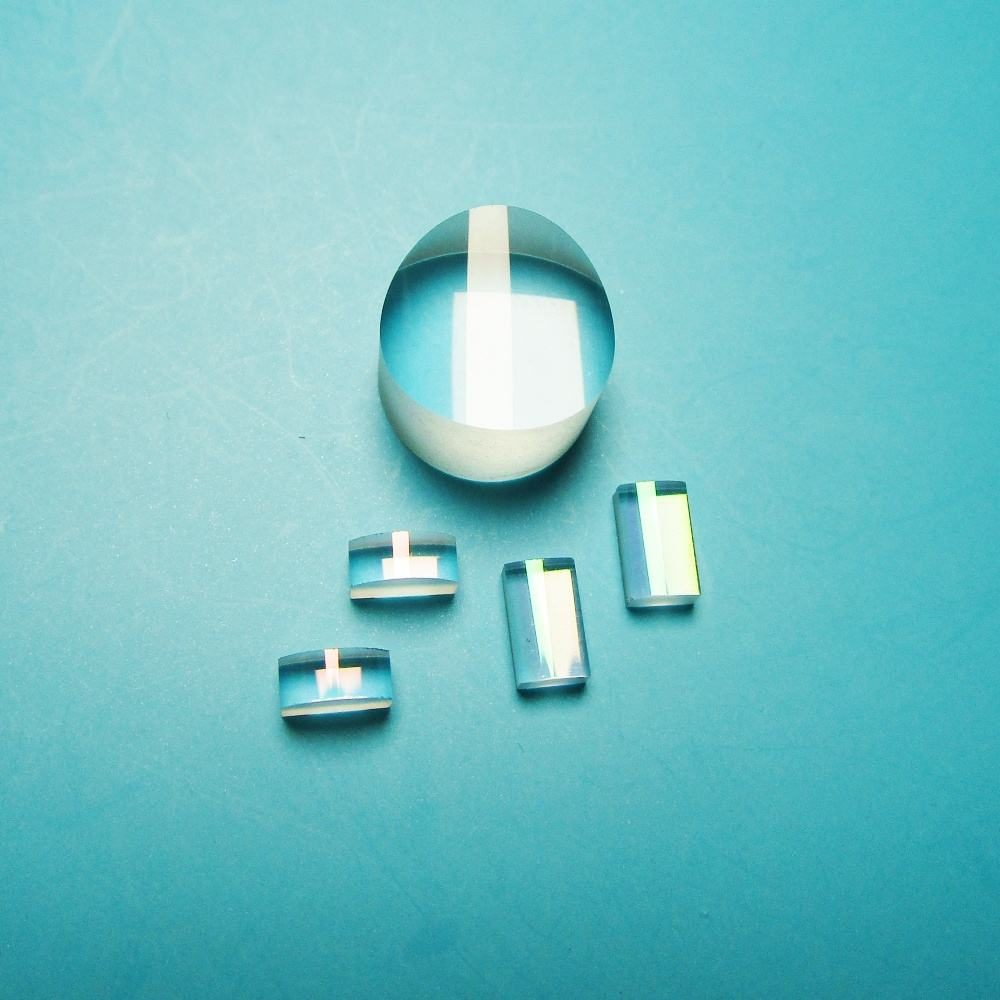

Custom Size Glass Plano-convex Lens, AR Coated
Plano-convex lens with AR coating, ideal for 0.7-1.7 μm and 400-700 nm applications. Custom sizes available.
Core attributes
- Material
- Glass
- Shape
- Plano-convex
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Glass
- Shape
- Plano-convex
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The plano-convex lens is designed for applications in the 0.7-1.7 μm and 400-700 nm wavelength ranges, making it ideal for optical equipment such as laser line lenses. Its anti-reflective coating minimizes glare and enhances clarity, ensuring optimal performance in various imaging and laser applications. With a focal length of 5.0 mm and high surface quality of 20/10, this lens meets the precision demands of R&D and procurement engineers.
Key Features
- Focal length of 5.0 mm for focused imaging applications.
- High surface quality (20/10) ensures precision and clarity.
- Anti-reflective coating reduces glare, enhancing image quality.

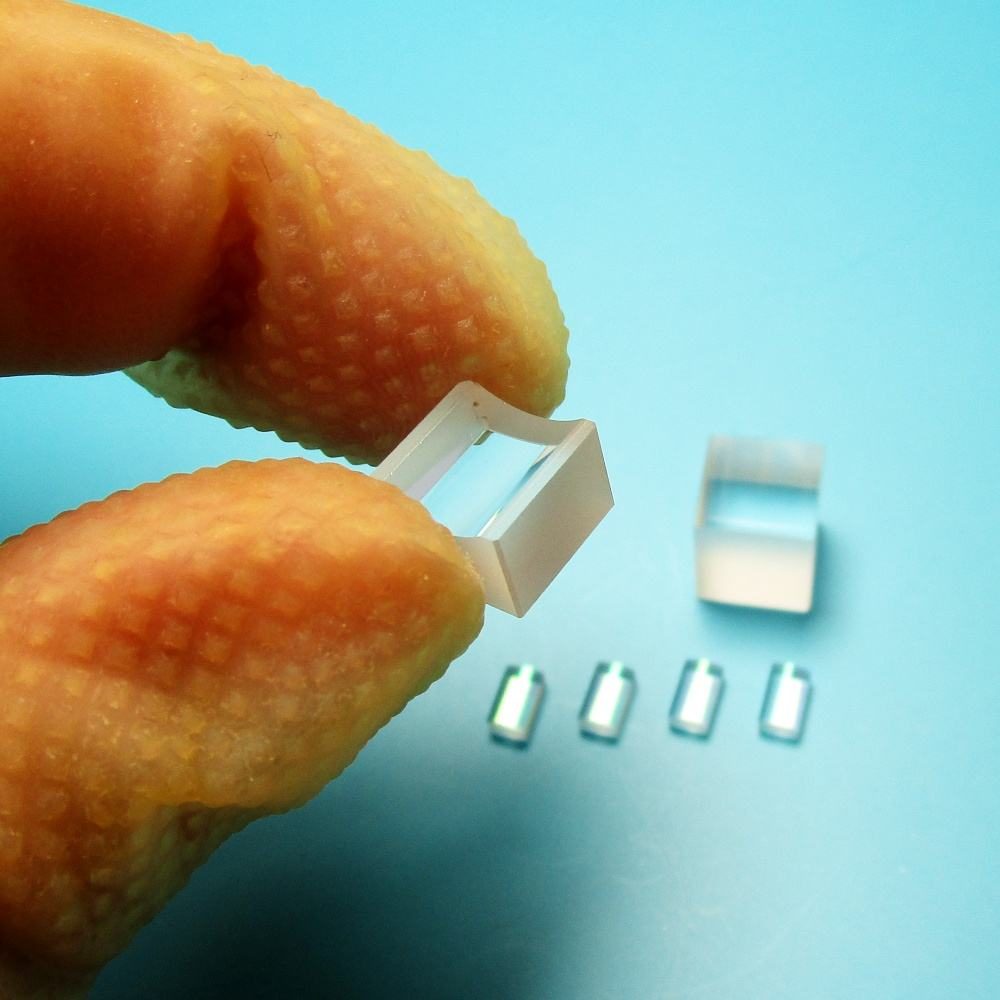

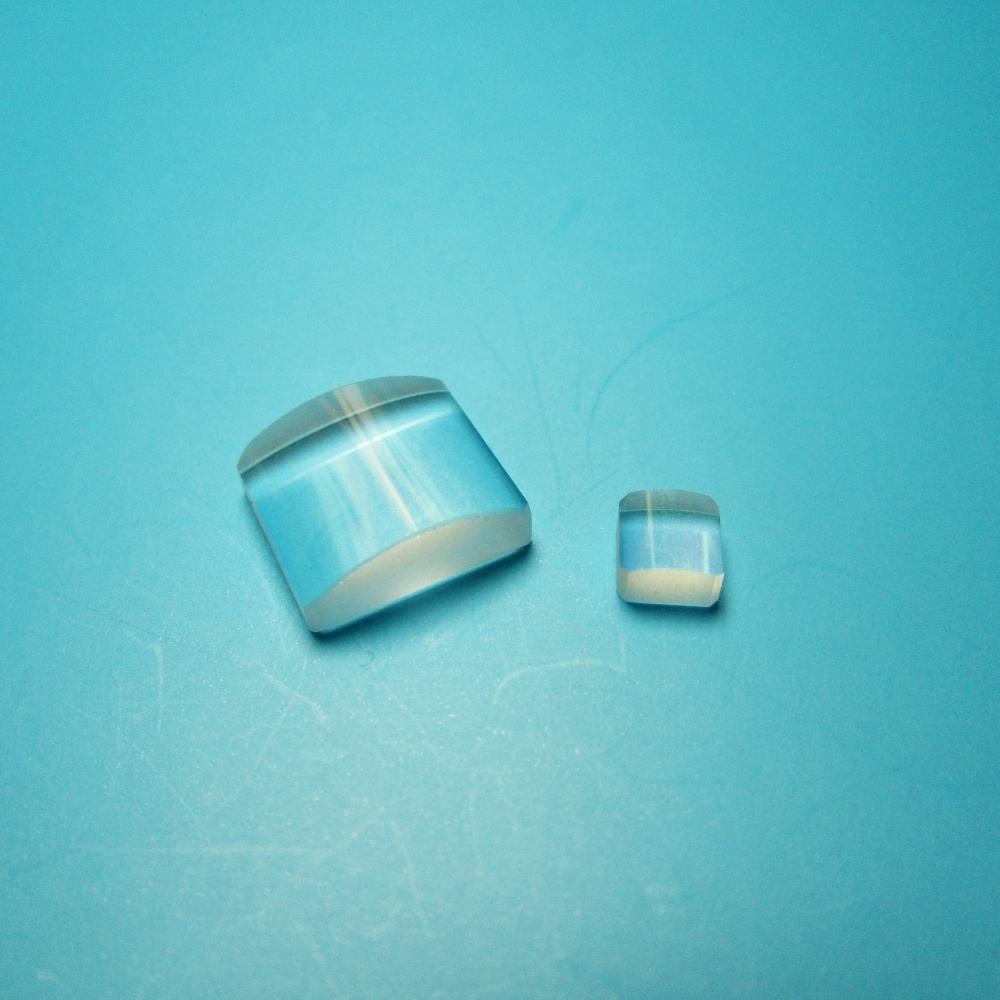

- Custom sizes available (1 mm - 300 mm) for tailored applications.
- Dimension tolerance of ±0.03 mm for reliable batch consistency.
Specification Summary
| Item | Value |
|---|---|
| Material | Glass |
| Shape | Plano-convex |
| Focal Length | 5 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Plano Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.01 |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
FAQ
What are the available custom sizes?
Custom sizes range from 1 mm to 300 mm.
What is the tolerance for dimensions?
The dimension tolerance is ±0.03 mm.
