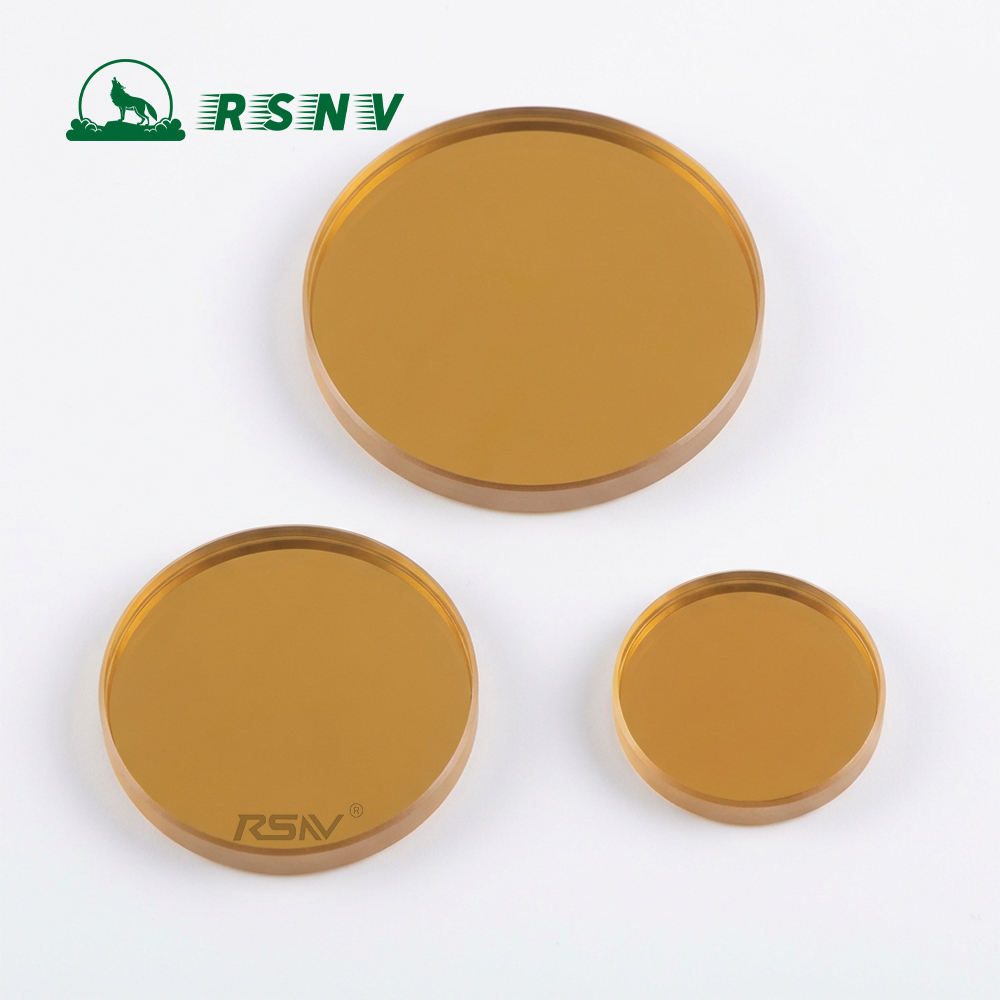

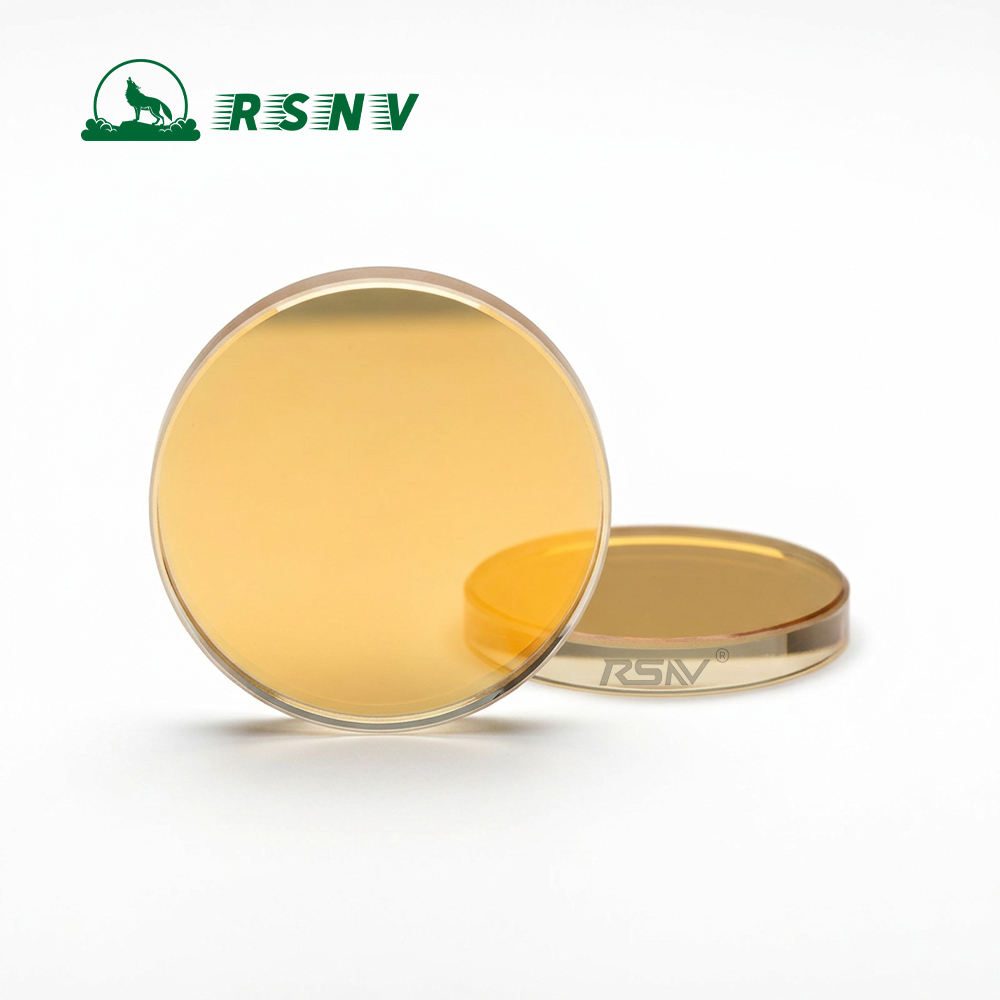

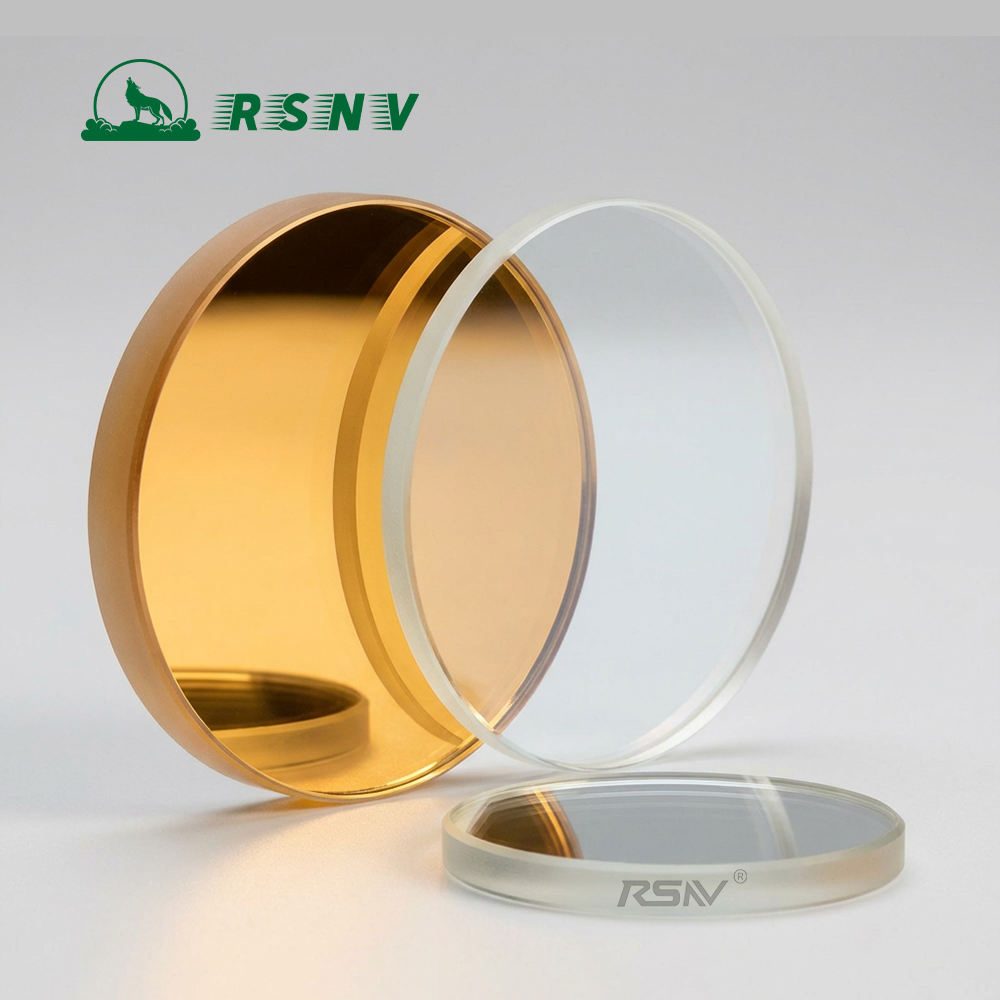

20 mm K9 Custom Optical Mirror, AR Coated

Product description

This K9 output mirror is engineered for optimal performance in laser and research applications, specifically designed for the 1064nm wavelength. With a reflectance of just 0.2% and advanced anti-reflection coatings, it minimizes back-reflections, enhancing laser efficiency and beam quality. Its dual-wavelength optimization ensures precision for both the 1064nm working beam and 650nm pilot light, making it ideal for accurate machine calibration. Custom sizes are available to meet specific project needs.

Key Features

Reflectance of 0.2% minimizes unwanted back-reflections, protecting sensitive components.
AR coating ensures high transmission rates, enhancing laser output efficiency.
Custom sizes available, allowing for tailored solutions for diverse applications.
Optimized for dual wavelengths (1064nm and 650nm) for precise beam alignment.
Constructed from K9 glass for high thermal stability and damage resistance.

Applications

Laser, Research

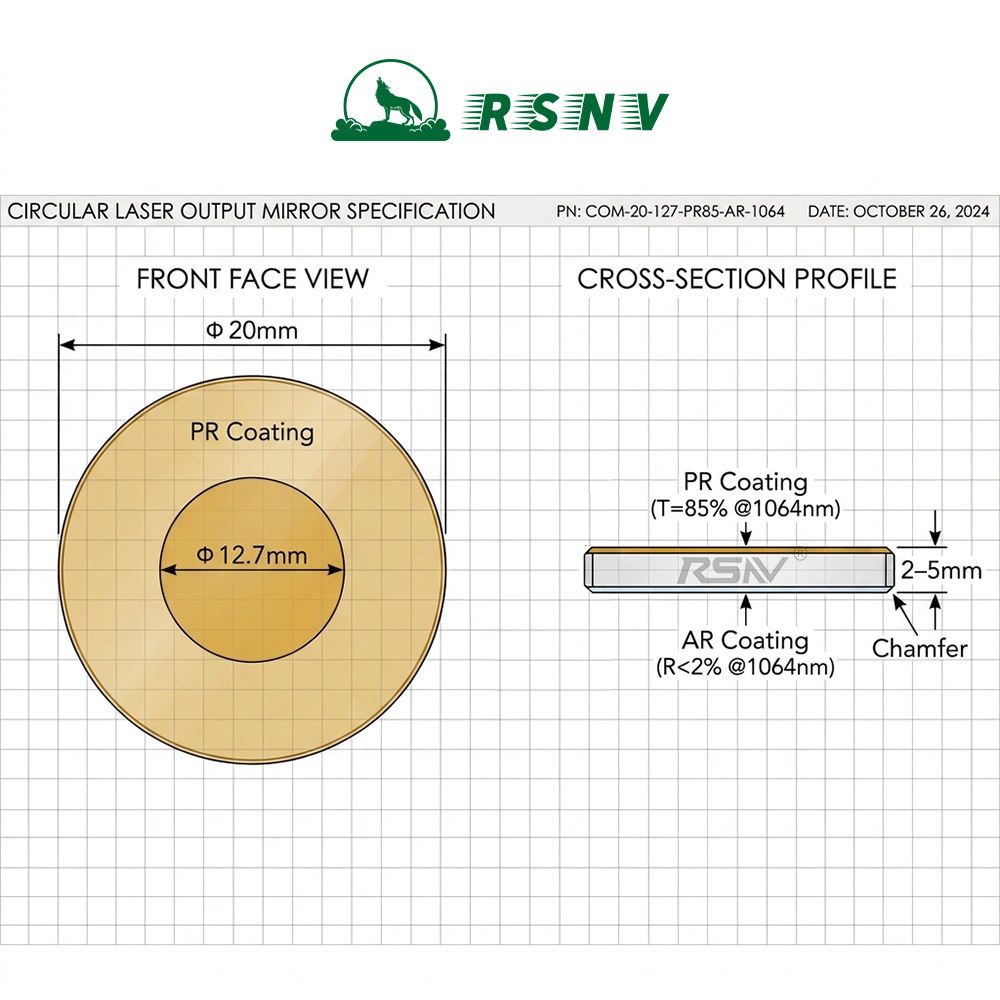

Specification Summary

Item	Value
Material	K9
Shape	Custom
Size	20 mm
Thickness	Custom
Reflectance	0.2%
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Output Mirror
Customized Support	OEM, ODM
Warranty	25 Days
Weight	5g

FAQ

Can I get custom sizes?

Yes, full customization services for all dimensions and optical indicators are available.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible procurement options.
