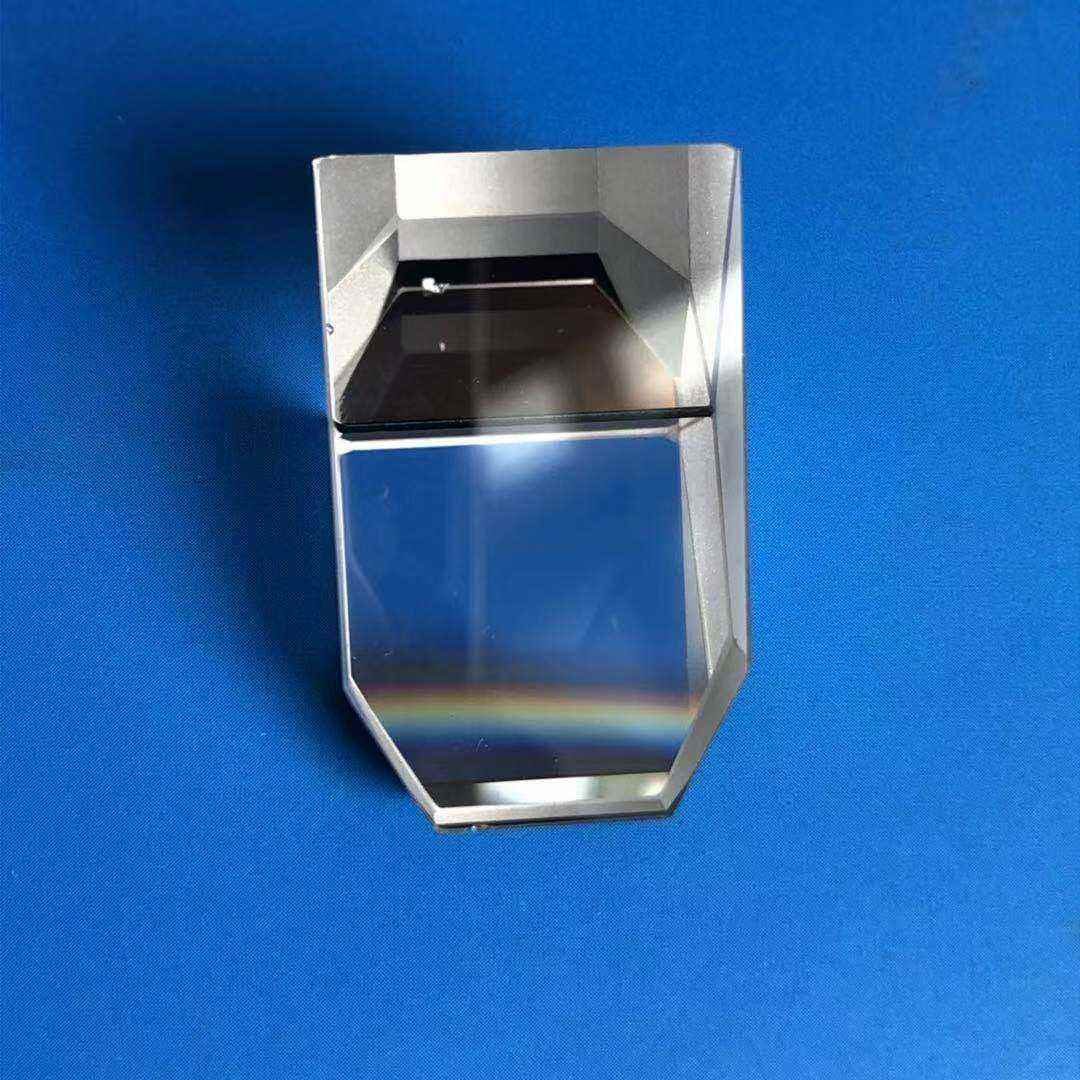

Custom Size K9 Custom Optical Prism, AR Coated

Product description

This custom K9 prism is designed for projection applications, providing high-quality optical performance with a surface quality of 40/20. It supports various geometries and can be tailored to fit specific optical paths, ensuring optimal alignment and beam deviation. With a flatness of <1/4 @ 632.8nm and a clear aperture of >90%, it meets the stringent demands of R&D and engineering projects.

Key Features

Customizable dimensions to fit specific optical paths
Surface quality of 40/20 for superior wavefront integrity
Flatness of <1/4 @ 632.8nm for precise optical performance
Clear aperture greater than 90% for maximum light transmission
Angle tolerance available upon request for application-specific needs

Applications

Projection

Specification Summary

Item	Value
Material	K9
Shape	Custom
Size	Custom
Thickness	Custom
Surface Quality	40/20
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Materail	BK7
Dimension Tolerance	±0.2mm
Flatness	<1/4 @ 632.8nm
Clear Aperture	>90%
Bevel	Protection
Angle Tolerance	See the Table

FAQ

Can I get custom sizes for this prism?

Yes, this prism can be customized to fit specific dimensions as required.

What is the dimension tolerance for this prism?

The dimension tolerance for this prism is ±0.2mm.
