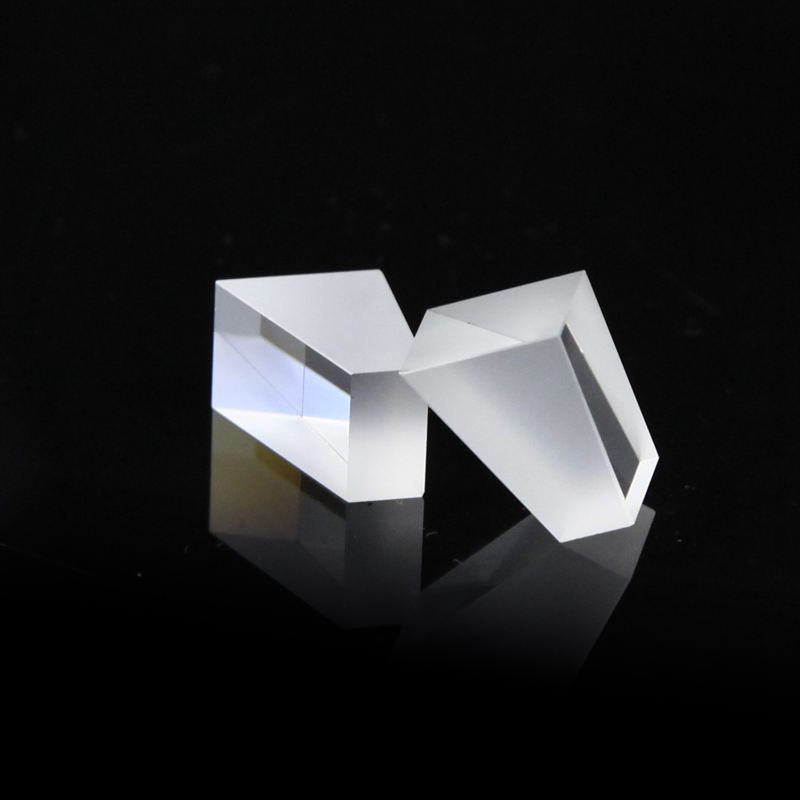

Custom Size K9 Custom Optical Prism, AR Coated

Product description

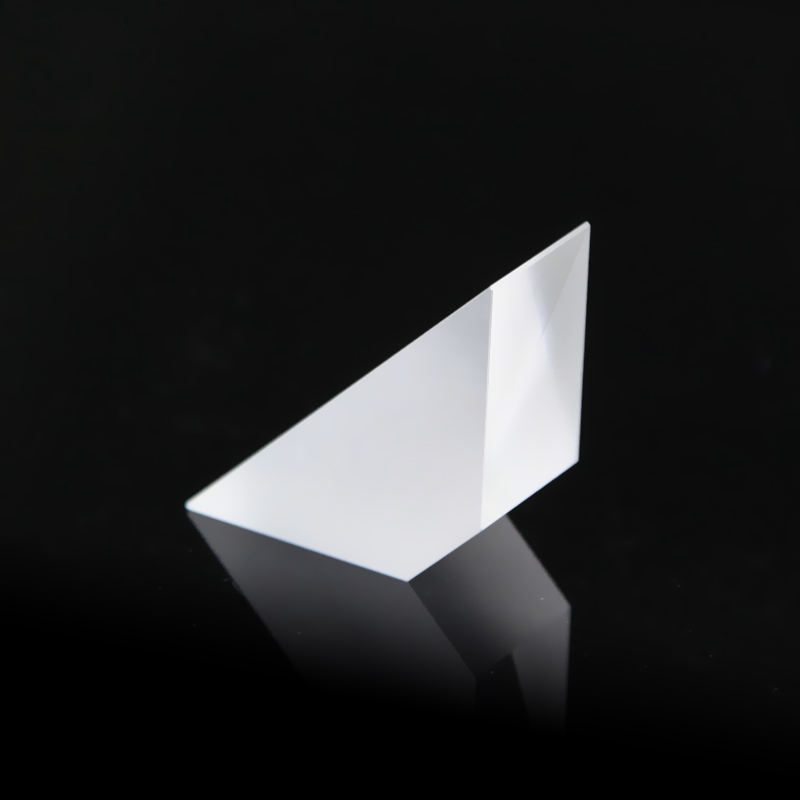

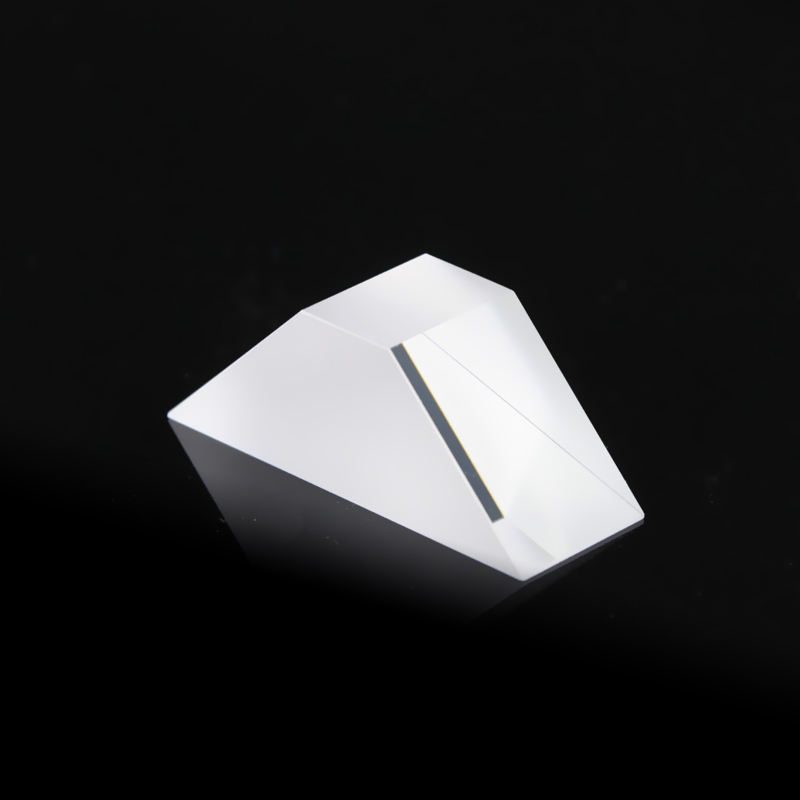

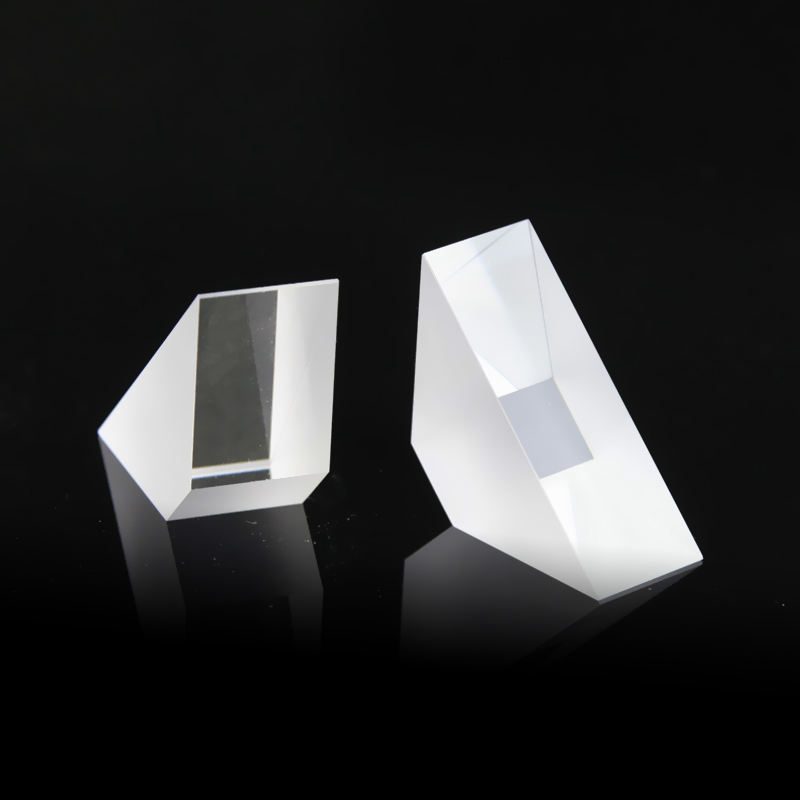

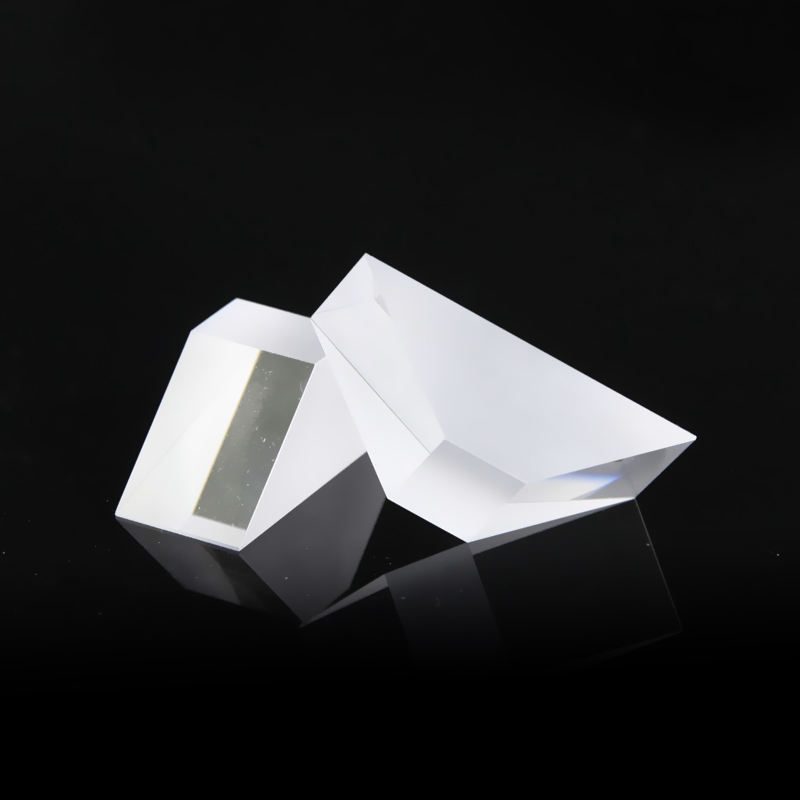

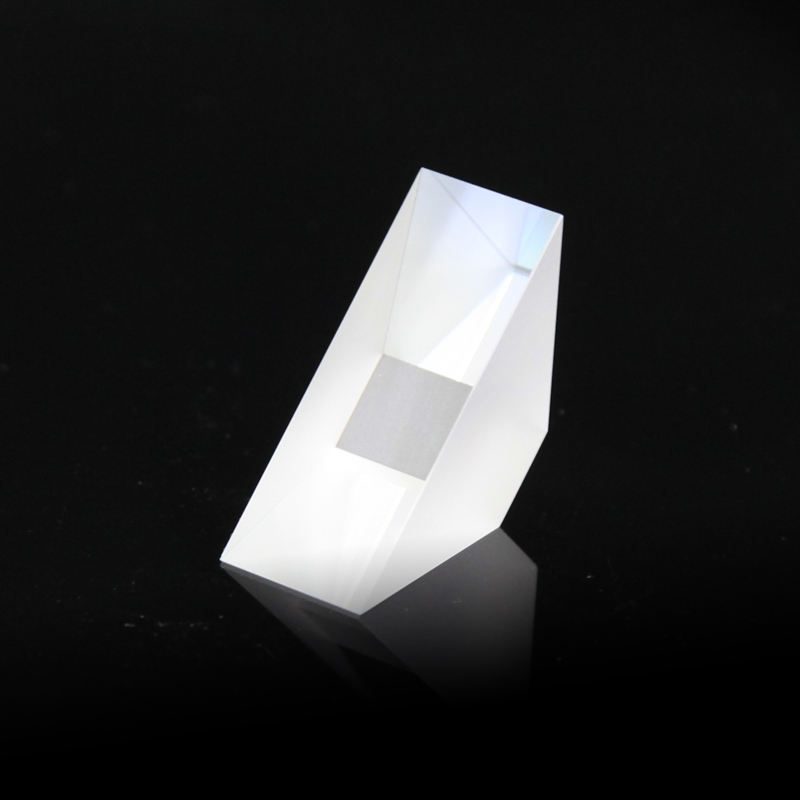

The Trapezoidal Prism made from optical-grade K9 glass is designed for applications requiring high precision and clarity. Its unique geometry allows for effective manipulation of light paths in various scientific and engineering fields. With a surface quality rating of 80/50, this prism ensures minimal distortion and high performance. Custom sizes and OEM/ODM support are available to meet specific project needs.

Key Features

Trapezoidal geometry provides versatility in optical path manipulation.
Surface quality of 80/50 ensures minimal distortion for accurate light transmission.
Customizable options available for tailored solutions to meet specific requirements.
Diameter and size tolerance of ±0.05 mm for precise fitting in optical assemblies.
Single packaging ensures safe delivery and handling.

Specification Summary

Item	Value
Material	K9
Shape	Custom
Size	Custom
Thickness	Custom
Surface Quality	80/50
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Trapezoidal Prism
Customized Support	OEM, ODM
Warranty	None
Size Tolerance	±0.05
Brand	JLGD
Diameter Tolerance	±0.05
Package	single package
Bevel	0.2*45°
Payment	100% payment
Color	transparent

FAQ

What are the size tolerances for this prism?

The size tolerance is ±0.05 mm, ensuring a precise fit in your optical systems.

Can I request custom sizes for this prism?

Yes, customizable support is available, including OEM and ODM options.
