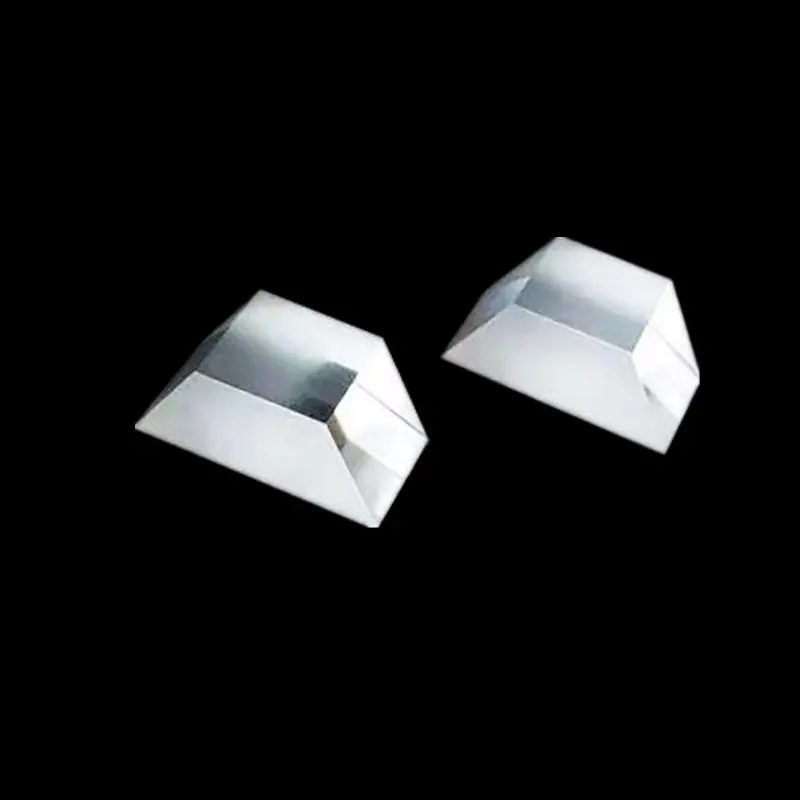

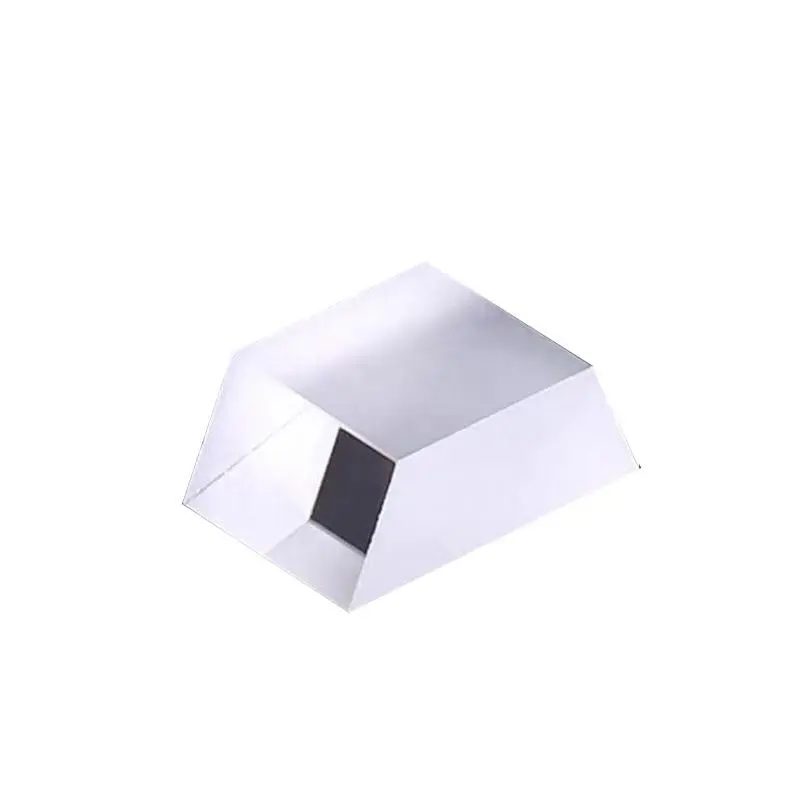

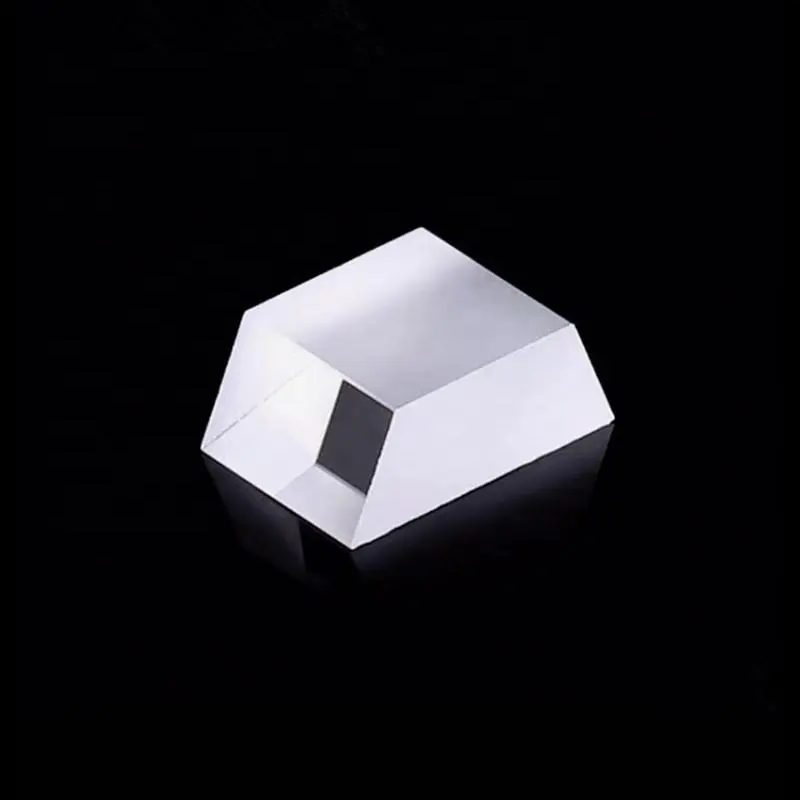

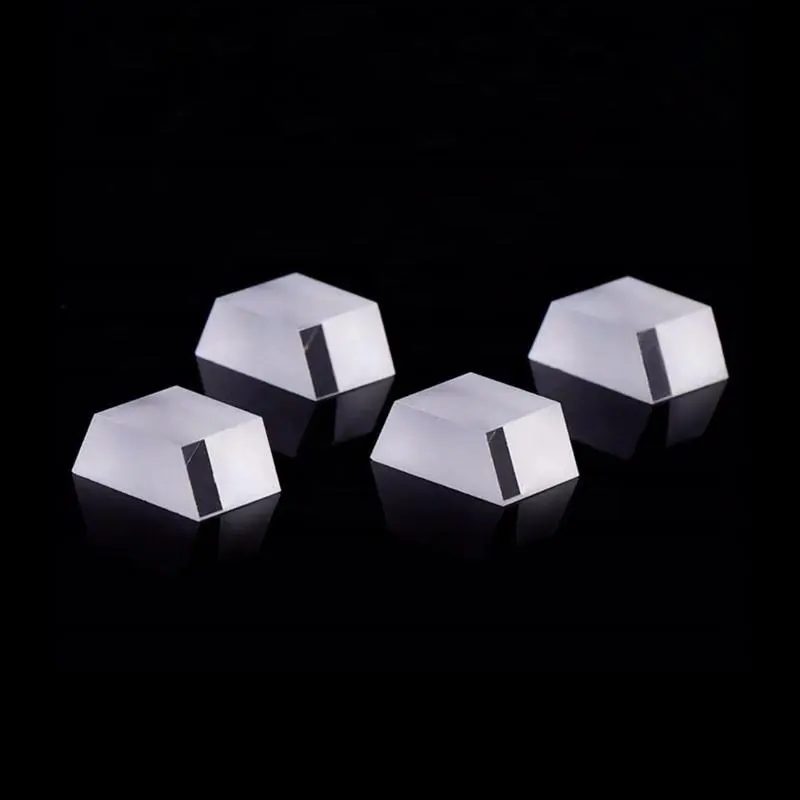

Custom Size K9 Dove Optical Prism
Dove Prism with right angle design, 90% clear aperture, and ±0.1mm tolerance for precise optical applications.
Core attributes
- Material
- K9
- Shape
- Dove
- Size
- Custom
- Thickness
- Custom
Product facts
Key attributes
- Material
- K9
- Shape
- Dove
- Size
- Custom
- Thickness
- Custom
Product description
The Dove Prism is designed for applications requiring beam deviation and image inversion. Its geometry is ideal for optical paths needing precise angular adjustments. With a clear aperture greater than 90%, it ensures minimal loss of light, making it suitable for various optical setups.
Key Features
- Right Angle Prism design allows for effective beam deviation, enhancing optical path efficiency.
- Size tolerance of ±0.1mm ensures precise fitting in optical assemblies.
- Clear aperture greater than 90% maximizes light transmission, improving overall system performance.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Dove |
| Size | Custom |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Size Tolerance | ±0.1mm |
| Clear Aperture | >90% |
FAQ
Is custom sizing available for the Dove Prism?
Custom sizing is not available for this prism.
What is the size tolerance for this prism?
The size tolerance for the Dove Prism is ±0.1mm.
