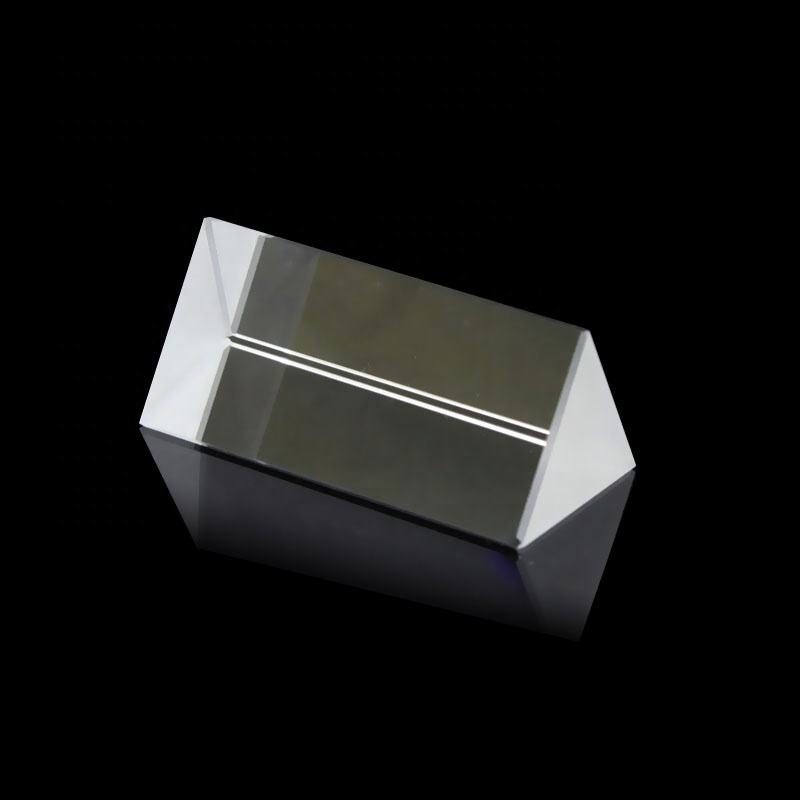

30 mm K9 Equilateral Optical Prism
Equilateral K9 prism with 60/40 surface quality and 3'' to 5'' angle tolerance for precise optical applications.
Core attributes
- Material
- K9
- Shape
- Equilateral
- Size
- 30 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- K9
- Shape
- Equilateral
- Size
- 30 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
The equilateral prism made from K9 glass is designed for precise light manipulation in various optical applications. With a surface quality of 60/40 and an angle tolerance of 3’’ to 5’’, this prism ensures reliable performance in beam deviation and optical path alignment. It is suitable for applications requiring high accuracy in light transmission and reflection.
Key Features
- Equilateral geometry provides uniform light splitting for consistent optical performance.
- Surface quality of 60/40 ensures minimal distortion for high wavefront integrity.
- Angle tolerance of 3’’ to 5’’ supports accurate beam deviation in critical applications.
- Transparent K9 material offers excellent optical clarity for various wavelengths.
- Customizable options available through OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Equilateral |
| Size | 30 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Triangular Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Flatness | 1/4 |
| Angle Tolerance | 3’’~5'' |
| Type | triangular |
| Color | transparent |
FAQ
What is the angle tolerance for this prism?
The angle tolerance for this equilateral prism is between 3’’ and 5’'.
What is the surface quality of the prism?
The surface quality of the prism is rated at 60/40.
