1 / 6Optical Filters

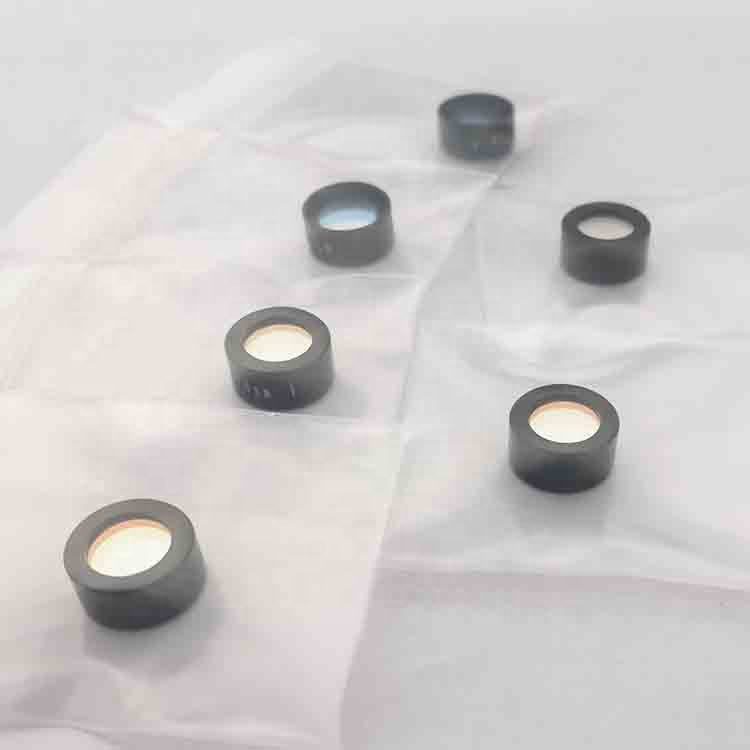

12.5 mm K9 Mounted Optical Filter
K9 bandpass filter with 80% transmittance and 10 nm FWHM for precise optical applications.
Core attributes
- Material
- K9
- Shape
- Mounted
- Size
- 12.5 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 80%
- Filter Type
- bandpass
- Fwhm
- 10nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Shape
- Mounted
- Size
- 12.5 mm
- Thickness
- Custom
- Surface Quality
- 80/50
- Transmittance
- 80%
- Filter Type
- bandpass
- Fwhm
- 10nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This K9 bandpass filter is designed for applications requiring precise light transmission within the 400-700 nm range. With a 10 nm full width at half maximum (FWHM) and 80% transmittance, it effectively isolates specific wavelengths while blocking unwanted light. The hard-coated surface ensures durability, making it suitable for various environments. Ideal for fluorescence microscopy and machine vision, this filter provides reliable performance for demanding optical applications.
Key Features
- 80% transmittance ensures effective wavelength isolation for enhanced imaging.
- 10 nm FWHM allows for precise spectral selection, fitting various light sources.
- Hard-coat coating enhances environmental durability, ensuring long-lasting performance.
- Surface quality of 80/50 guarantees minimal distortion for accurate results.
- Tolerance of +0/-0.1 mm provides reliable compatibility with optical systems.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Mounted |
| Size | 12.5 mm |
| Thickness | Custom |
| Surface Quality | 80/50 |
| Transmittance | 80% |
| Filter Type | bandpass |
| Fwhm | 10nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 80%; 70%; >=75% |
| Customized Support | OEM |
| Warranty | 3 months |
| Tolerance | +0/-0.1mm |
| Fwhm | 8nm/10nm/25nm |
| Blocking | OD6 OD4 |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM support.
What are the tolerances for this filter?
The tolerance for this filter is +0/-0.1 mm.
