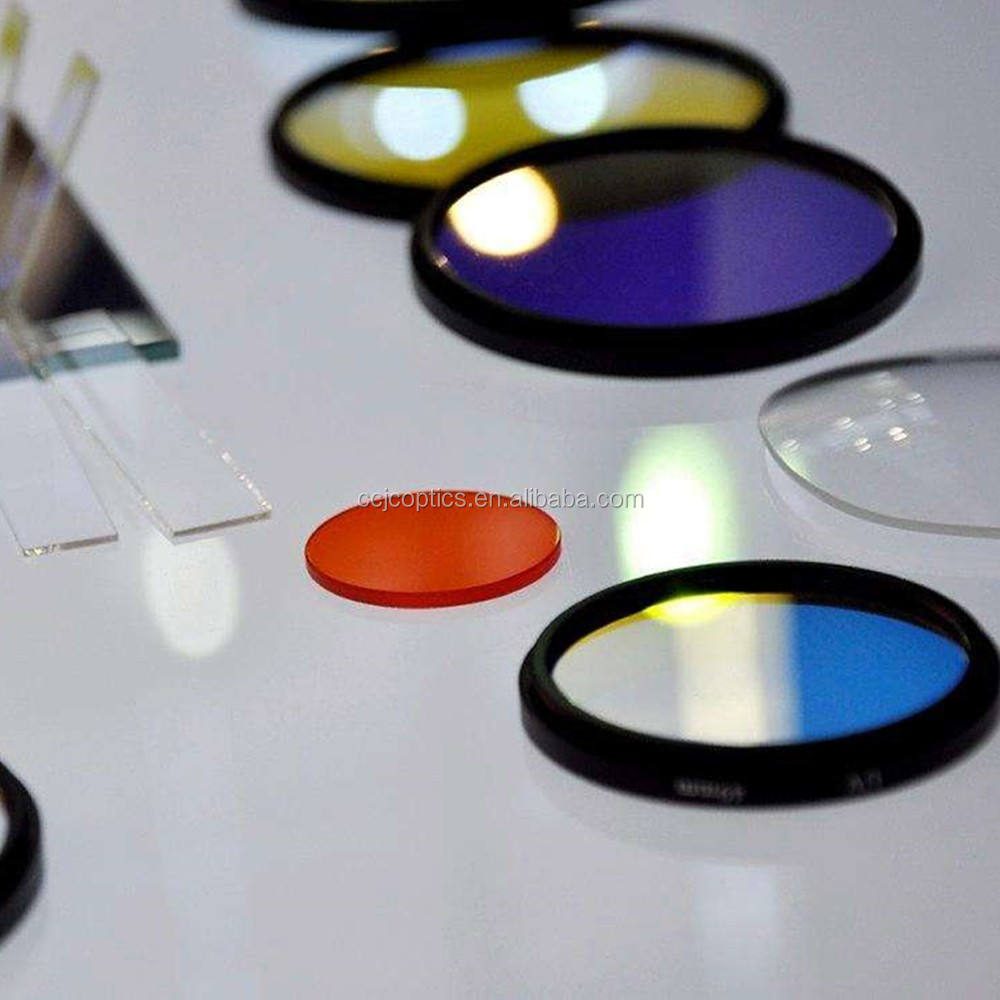

1 mm K9 Optical Filter, AR Coated
High-performance optical filter with 99.8% transmittance, customizable sizes, and a wavelength range of 200-2000 nm.
Core attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 99.8%
- Cwl
- 1100nm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 99.8%
- Cwl
- 1100nm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This optical filter is designed to enhance the performance of optical instruments by providing high transmittance and tailored wavelength ranges. With a center wavelength of 1100 nm and a transmittance of 99.8%, it effectively meets the needs of applications in fluorescence microscopy, machine vision, and life sciences. The filter supports a broad wavelength range from 200 to 2000 nm, making it suitable for various light sources and detectors.
Key Features
- Transmittance of 99.8% ensures minimal loss of light, enhancing image quality.
- Customizable dimensions from 1.0 mm to 80.0 mm for specific application needs.
- Supports OEM and ODM options for tailored solutions.
- Wavelength range of 200-2000 nm accommodates diverse applications.
- FWHM of 10 +/- 2 nm provides precise filtering capabilities.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 1 mm |
| Thickness | Custom |
| Transmittance | 99.8% |
| Cwl | 1100nm |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | Fifty Percent; 99.8% |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Dimension | 1.0mm-80.0 mm |
| Wavelength Range | 200-2000nm |
| Fwhm | 10+/-2nm |
| Transmission | 90% |
| Use | Optical Instruments |
FAQ
Can I get custom sizes?
Yes, dimensions can be customized from 1.0 mm to 80.0 mm.
What is the minimum order quantity?
The minimum order quantity is not specified.
