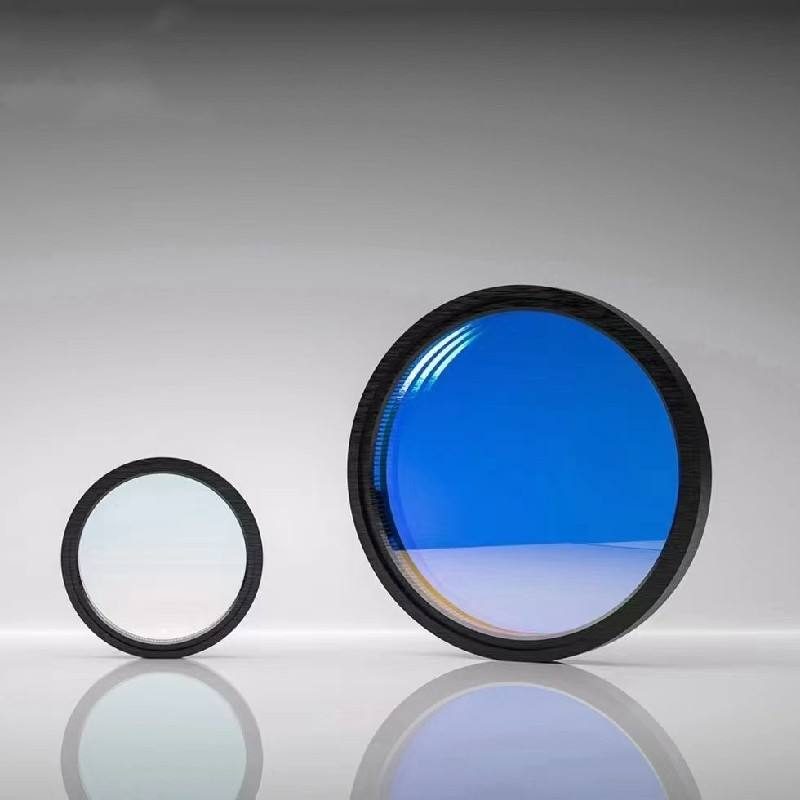

1 mm K9 Optical Filter, AR Coated
Explore our optical filter with a 1% transmittance and customizable sizes from 1.0 mm to 80.0 mm for various applications.
Core attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 1%
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Transmittance
- 1%
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This optical filter is designed to enhance the performance of instruments operating across a wide wavelength range from 200 to 2000 nm. With a transmittance of 1% and a customizable size range from 1.0 mm to 80.0 mm, it is suitable for applications in fluorescence microscopy, machine vision, and other optical instruments. The filter’s hard coating ensures durability in various environments, making it a reliable choice for demanding applications.
Key Features
- Transmittance of 1% ensures minimal light loss for optimal performance.
- Wavelength range of 200-2000 nm accommodates diverse applications.
- Custom sizes from 1.0 mm to 80.0 mm available to fit specific needs.
- FWHM of 10 +/- 2 nm provides precise spectral performance.
- AR coatings enhance transmission efficiency and reduce glare.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 1 mm |
| Thickness | Custom |
| Transmittance | 1% |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 1%; 99.85 |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Dimension | 1.0mm-80.0 mm |
| Wavelength Range | 200-2000nm |
| Fwhm | 10+/-2nm |
| Transmission | 90% |
| Use | Optical Instruments |
FAQ
Can I get custom sizes?
Yes, custom sizes are available ranging from 1.0 mm to 80.0 mm.
What is the minimum order quantity?
The minimum order quantity is not specified; please inquire for details.
