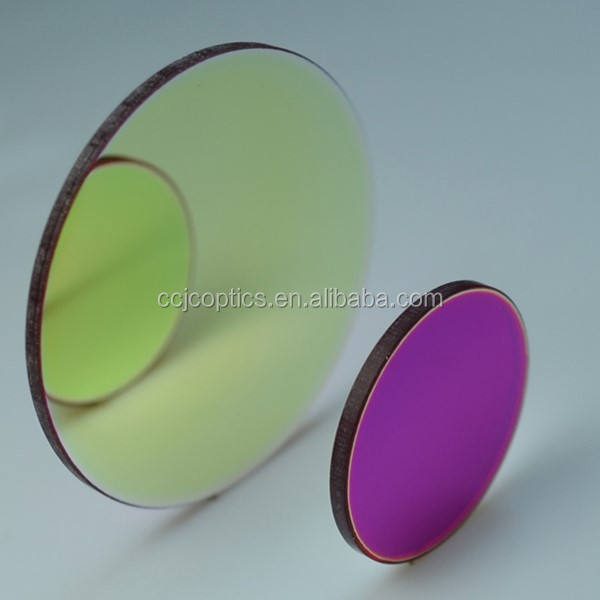

1 mm K9 Optical Filter
K9 bandpass filter with 95% transmittance and 3 nm FWHM for optical instruments. Custom sizes available.
Core attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Transmittance
- 95%
- Filter Type
- bandpass
- Fwhm
- 3nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Transmittance
- 95%
- Filter Type
- bandpass
- Fwhm
- 3nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This K9 bandpass filter is designed to enhance optical performance in applications requiring precise wavelength selection within the 0.7-1.7 μm range. With a high transmittance of 95% and a narrow FWHM of 3 nm, it effectively isolates specific wavelengths while minimizing unwanted light. Ideal for use in optical instruments, it supports various customization options to meet specific project needs.
Key Features
- High transmittance of 95% ensures maximum light throughput.
- Narrow FWHM of 3 nm provides precise wavelength selection.
- Custom sizes available from 1.0 mm to 200.0 mm to fit various applications.
- Dimension tolerance of +0.0/-0.1 mm ensures reliable fit in optical systems.
- Clear aperture greater than 90% allows for optimal light capture.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Transmittance | 95% |
| Filter Type | bandpass |
| Fwhm | 3nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 99.8% |
| Customized Support | OEM, ODM |
| Dimension | 1.0mm-200.0 mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Clear Aperture | >90% |
| Use | Optical Instruments |
FAQ
What are the available custom sizes?
Custom sizes range from 1.0 mm to 200.0 mm.
What is the dimension tolerance for this filter?
The dimension tolerance is +0.0/-0.1 mm.
