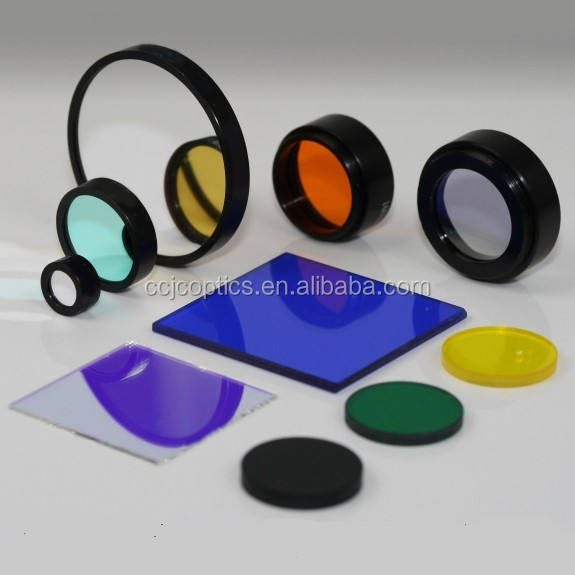

1 mm K9 Optical Filter
Dichroic filter at 850nm with 95% transmittance, customizable sizes from 1.0mm to 200.0mm, ideal for optical instruments.
Core attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Transmittance
- 95%
- Filter Type
- dichroic
- Cwl
- 850nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 1/4
- Transmittance
- 95%
- Filter Type
- dichroic
- Cwl
- 850nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This 850nm dichroic filter is designed to efficiently separate wavelengths in the 0.7-1.7 μm range, making it ideal for applications in optical instruments. With a high transmittance of 95%, it ensures minimal loss of light while effectively blocking unwanted wavelengths. The filter’s surface quality is rated at 1/4, enhancing optical performance. Custom sizes from 1.0mm to 200.0mm are available, catering to specific application needs.
Key Features
- High transmittance of 95% ensures optimal light throughput.
- Dichroic filter type for effective wavelength separation.
- Custom dimensions available from 1.0mm to 200.0mm for tailored applications.
- Surface quality rated at 1/4 for superior optical clarity.
- Dimension tolerance of +0.0/-0.1mm for precise fitting.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Transmittance | 95% |
| Filter Type | dichroic |
| Cwl | 850nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 99.8% |
| Customized Support | OEM, ODM, OBM |
| Dimension | 1.0mm-200.0 mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Clear Aperture | >90% |
| Use | Optical Instruments |
FAQ
What are the available custom sizes?
Custom sizes can be provided from 1.0mm to 200.0mm.
What is the dimension tolerance for this filter?
The dimension tolerance is +0.0/-0.1mm.
