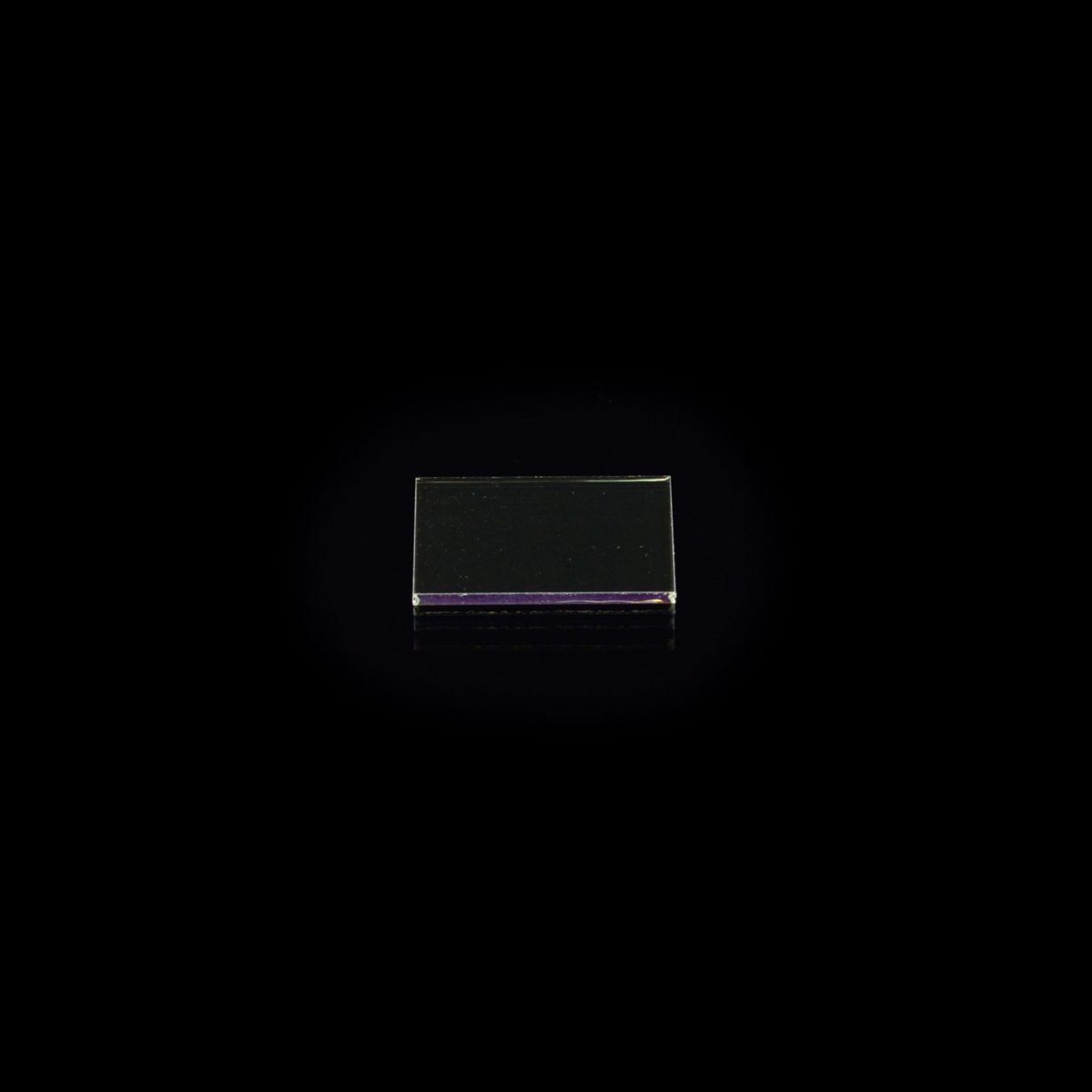

25 mm K9 Optical Filter
High-quality Longpass filter (550nm, 95% transmittance) for medical applications. Custom sizes and low MOQ available.
Core attributes
- Material
- K9
- Size
- 25 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Transmittance
- 95%
- Filter Type
- longpass
- Cwl
- 550nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 piece for sapphire window
Product facts
Key attributes
- Material
- K9
- Size
- 25 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Transmittance
- 95%
- Filter Type
- longpass
- Cwl
- 550nm
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 piece for sapphire window
Product description
The Longpass filter is designed for applications in the medical field, effectively allowing wavelengths above 550 nm to pass while blocking shorter wavelengths. With a transmittance of 95%, this filter ensures high light throughput, making it suitable for fluorescence microscopy and other optical applications. Its robust K9 glass construction provides durability, while the 20/10 surface quality ensures minimal distortion. Originating from Zhejiang, this filter can be sourced with low minimum order quantities, making it an ideal choice for both prototyping and bulk needs.
Key Features
- Transmittance of 95% ensures optimal light passage for medical applications.
- Longpass filter type effectively blocks wavelengths below 550 nm.
- Surface quality rated at 20/10 for minimal optical distortion.
- Available with a minimum order quantity of just 1 piece.
- Customizable support including OEM, ODM, and OBM options.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 25 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Transmittance | 95% |
| Filter Type | longpass |
| Cwl | 550nm |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 piece for sapphire window |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; >80%~90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Name | Longpass filter |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece for sapphire window |
| Bevel | 0.1-0.5mm |
| Tolerance | ±0.05 |
FAQ
What is the minimum order quantity?
The minimum order quantity is 1 piece for the sapphire window.
What is the tolerance for this filter?
The tolerance for this filter is ±0.05.
