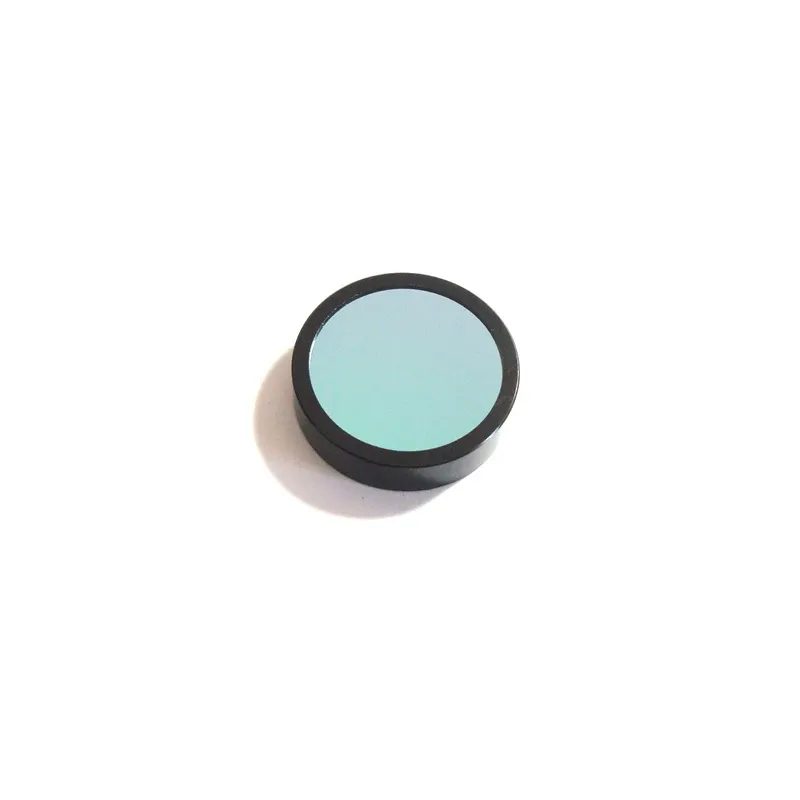

5x0.5 mm K9 Optical Filter, AR Coated

Product description

This bandpass filter is designed to meet the precise needs of applications requiring high transmittance and effective wavelength selection. With a FWHM of 5 nm, it ensures optimal performance for fluorescence microscopy and other optical applications. The filter provides over 90% transmittance at key wavelengths of 450 nm, 530 nm, and 650 nm, making it suitable for a variety of light sources and detectors. Its robust K9 glass construction, combined with anti-reflective coatings, enhances durability and performance in demanding environments.

Key Features

High transmittance of >90% at 450nm, 530nm, and 650nm for superior light throughput.
FWHM of 5 nm allows for precise wavelength selection, enhancing imaging quality.
OD of 2 ensures effective blocking of unwanted wavelengths, improving signal clarity.
Custom sizes available from 5.0 mm to 200.0 mm, accommodating various application needs.
Thickness options from 0.5 mm to 10.0 mm provide flexibility for integration.

Available Sizes

Size x Thickness (mm)
102.5 x 5.2

Specification Summary

Item	Value
Material	K9
Size	5 mm
Thickness	0.5 mm
Surface Quality	60/40
Transmittance	90%
Filter Type	bandpass
Fwhm	5nm
Od	2
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Transmittance	as request; >90% @450nm & 530nm & 650nm
Customized Support	OEM, ODM
Warranty	1 Year
Fwhm	5- 100 nm
Transmission	>90%
Od	2-6

FAQ

Can I get custom sizes?

Yes, custom sizes are available ranging from 5.0 mm to 200.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexibility in ordering.
