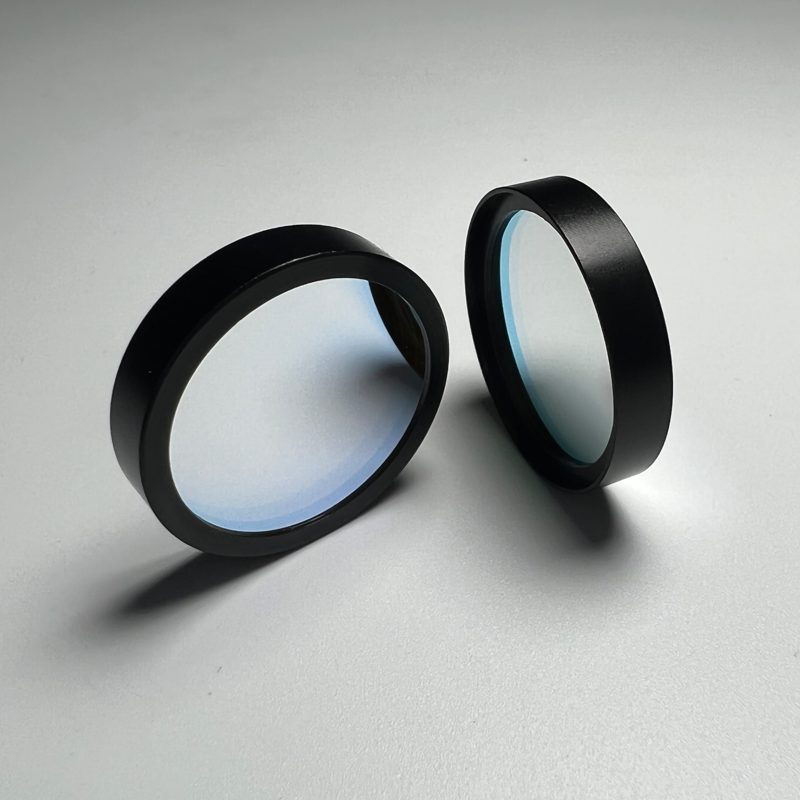

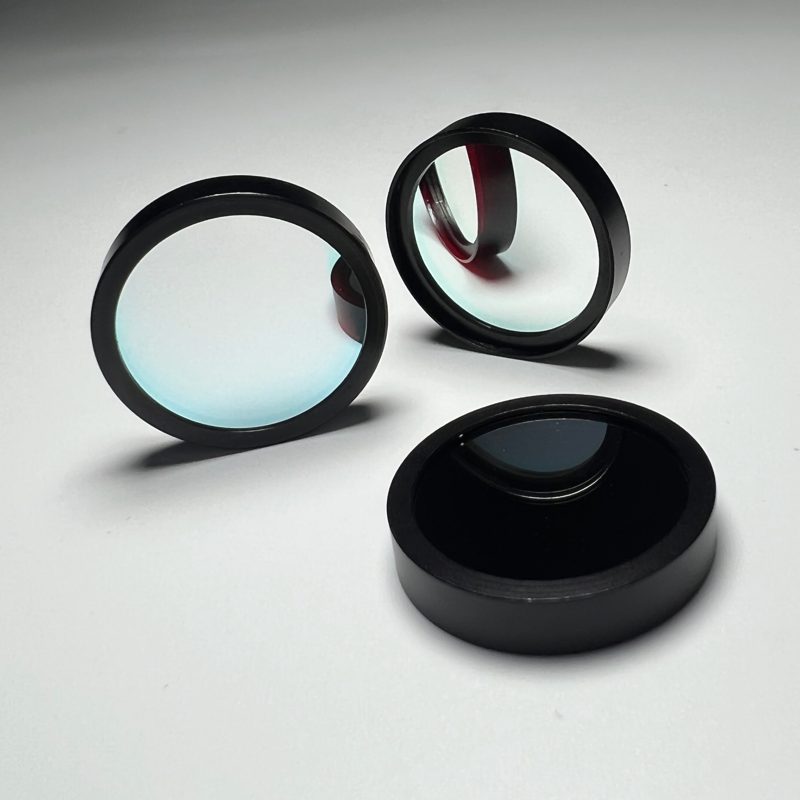

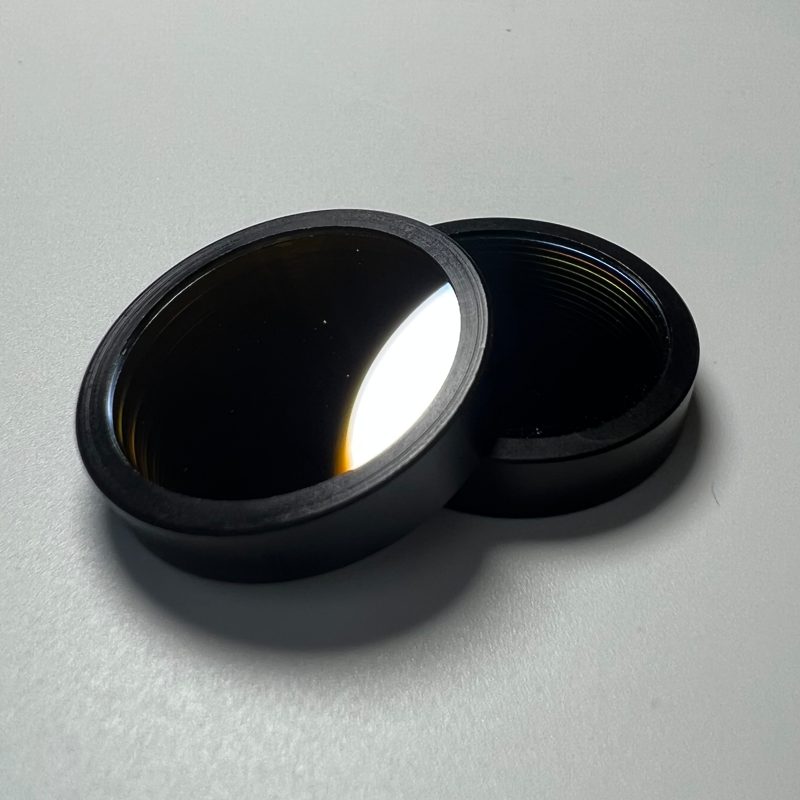

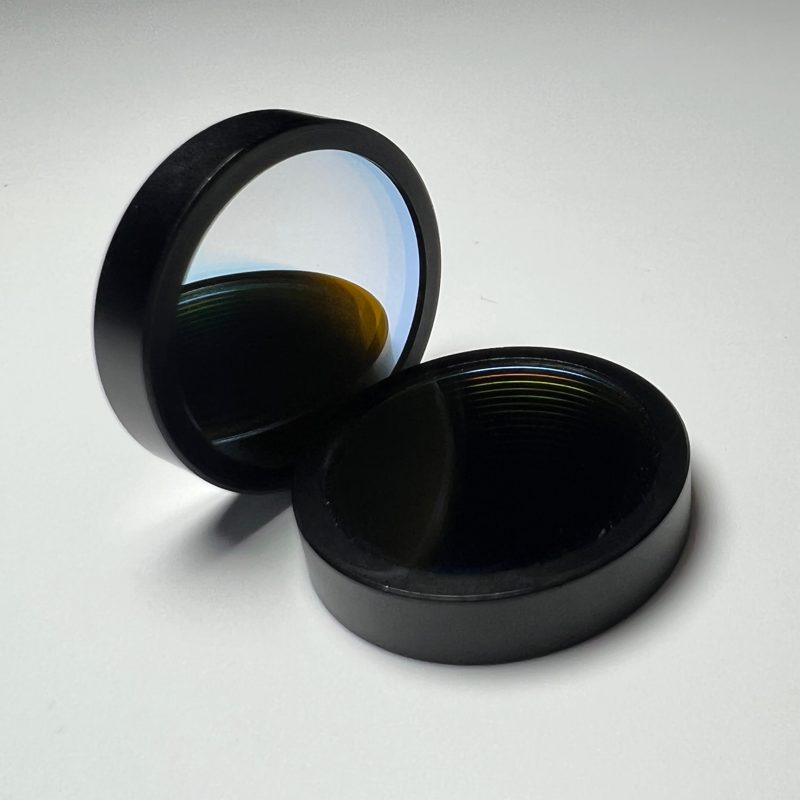

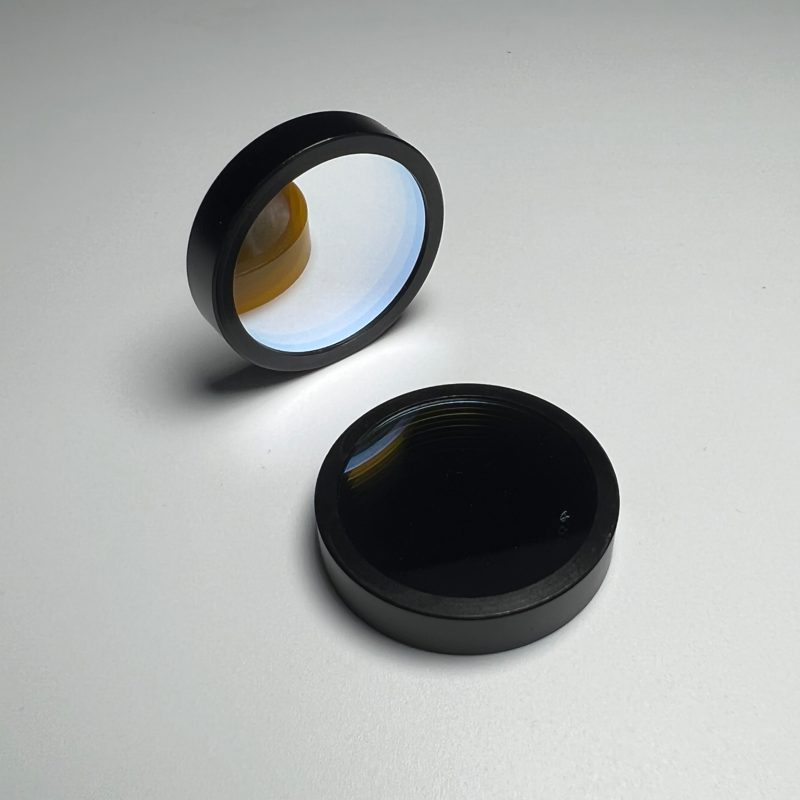

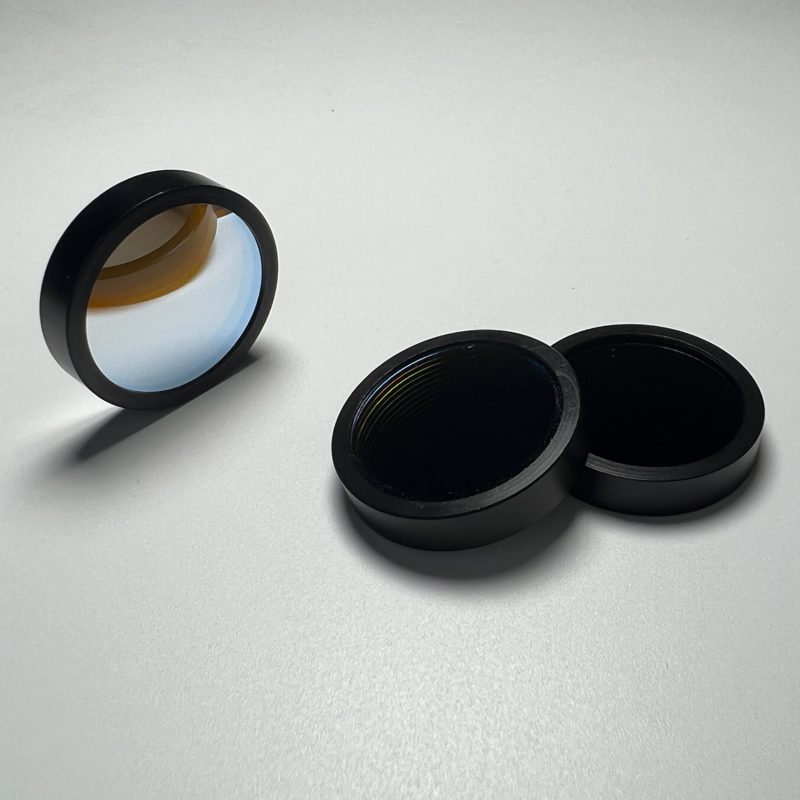

Custom Size K9 Optical Filter

Product description

This 400 nm bandpass filter is designed to effectively transmit light in the 400-700 nm range while blocking wavelengths below 400 nm. With a high transmittance of 96% and a clear aperture of 99%, it is ideal for applications in fluorescence microscopy and other optical systems requiring precise wavelength selection. The filter’s metallic coating enhances durability, making it suitable for various environmental conditions.

Key Features

High transmittance of 96% ensures optimal light throughput for enhanced imaging.
Bandpass filter type effectively isolates desired wavelengths from unwanted light.
Clear aperture of 99% maximizes the usable area for improved performance.
Available thicknesses from 0.5 mm to 50 mm accommodate diverse application needs.
Metallic coating provides added durability against environmental factors.

Specification Summary

Item	Value
Material	K9
Size	Custom
Thickness	0.5 mm
Transmittance	96%
Filter Type	bandpass
Cwl	400nm
Coating	metallic
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Transmittance	96; 96%
Clear Aperture	99%

FAQ

Can I get custom sizes for this filter?

Custom sizes are not specified, but the filter is available in thicknesses ranging from 0.5 mm to 50 mm.

What is the minimum order quantity (MOQ) for this filter?

The minimum order quantity (MOQ) is not specified in the provided data.
