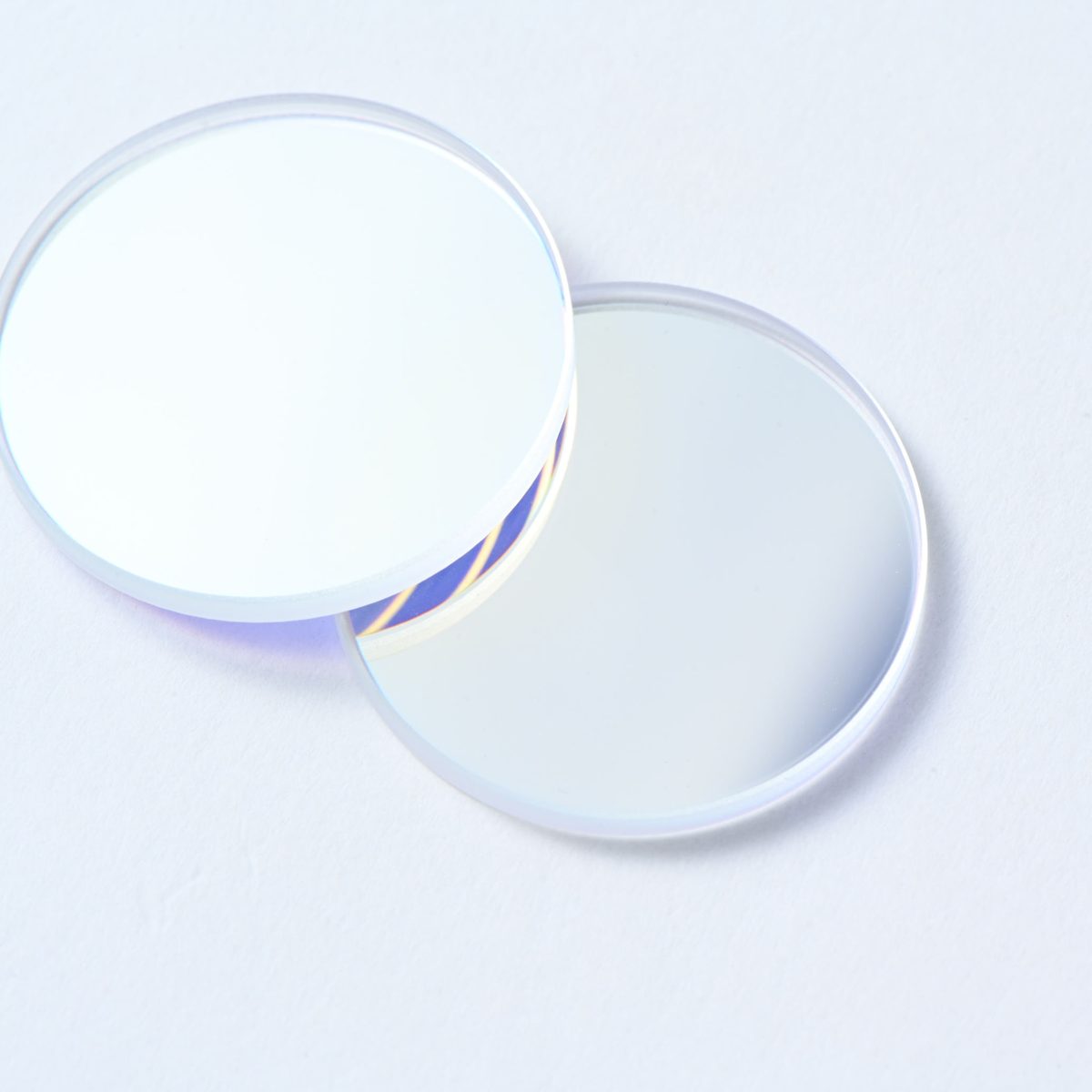

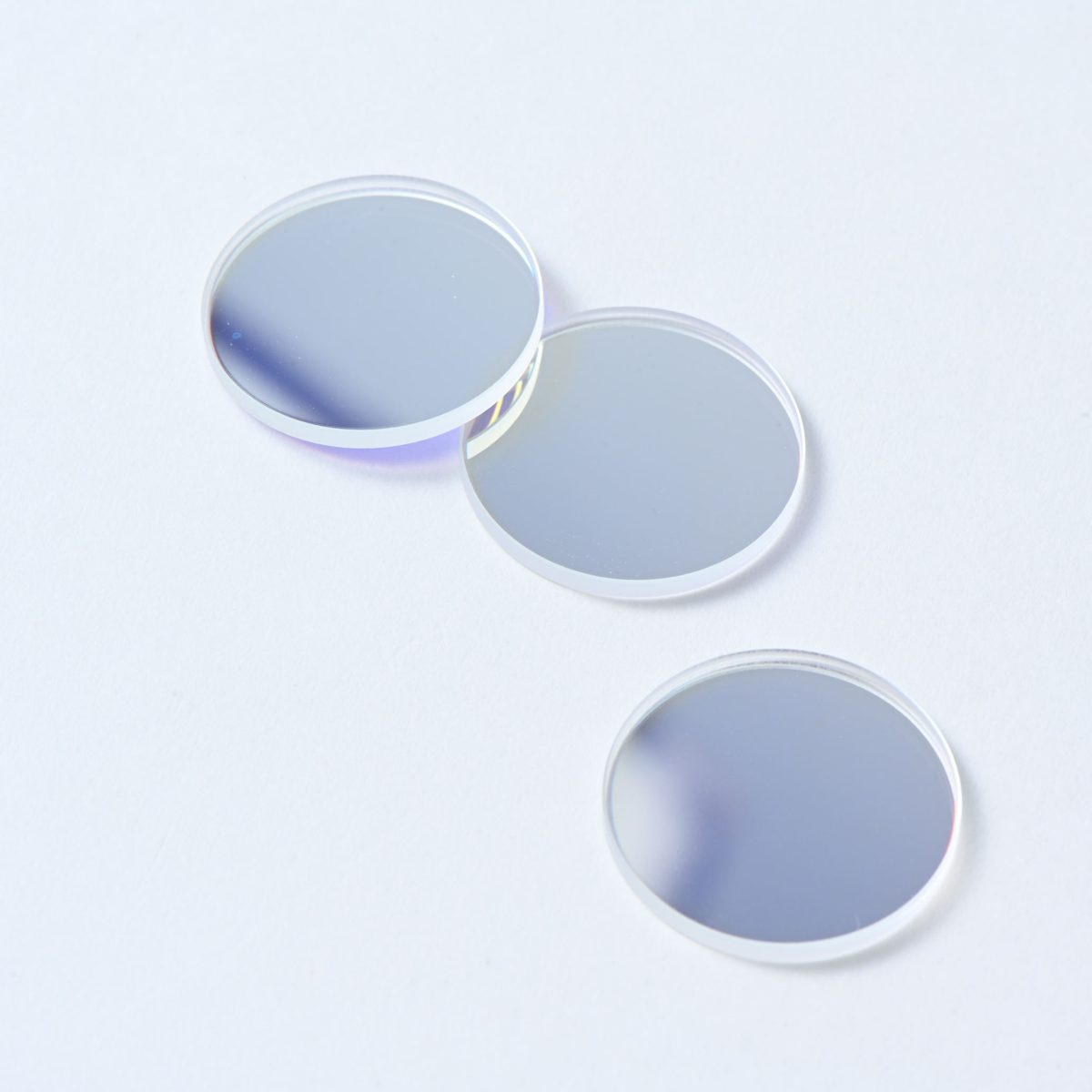

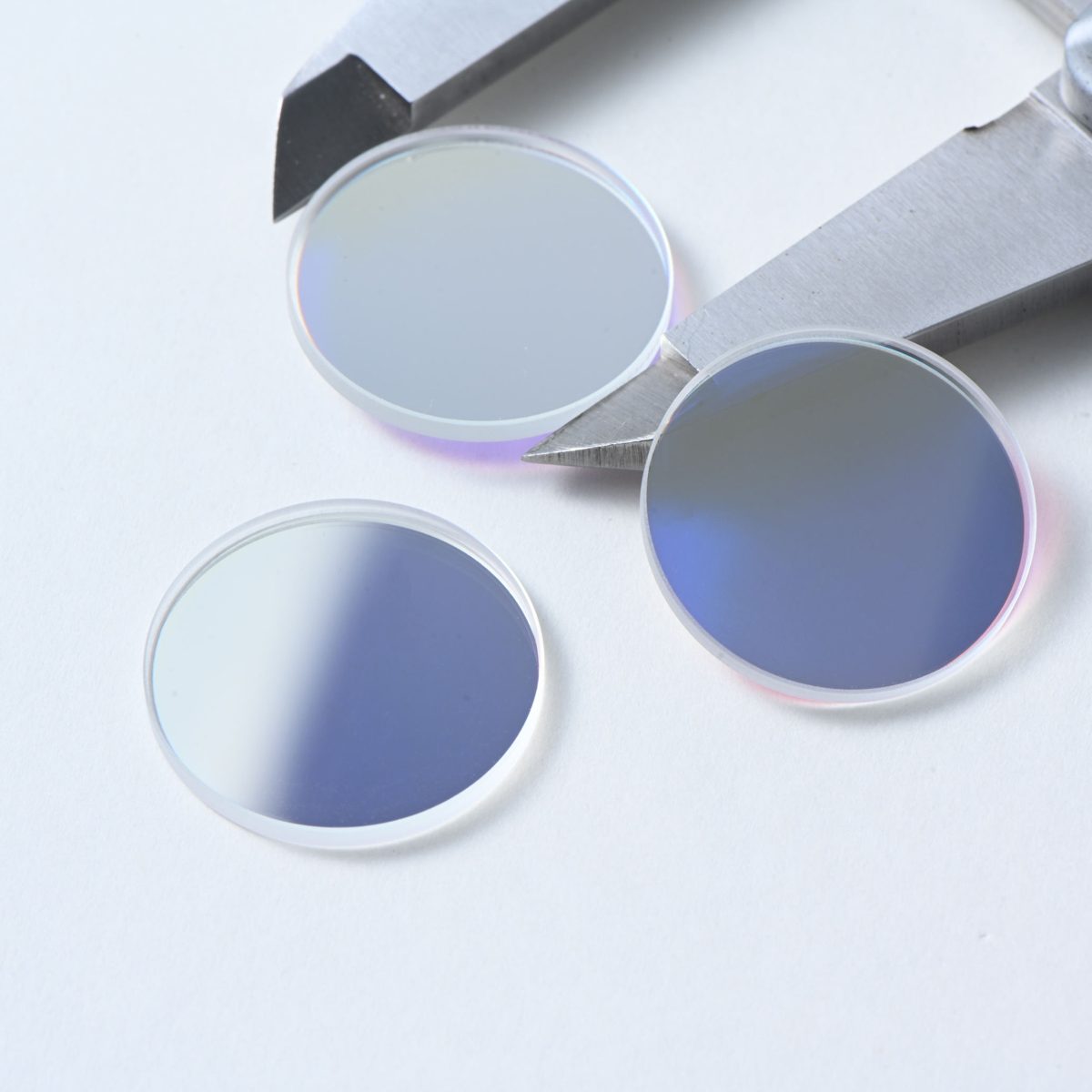

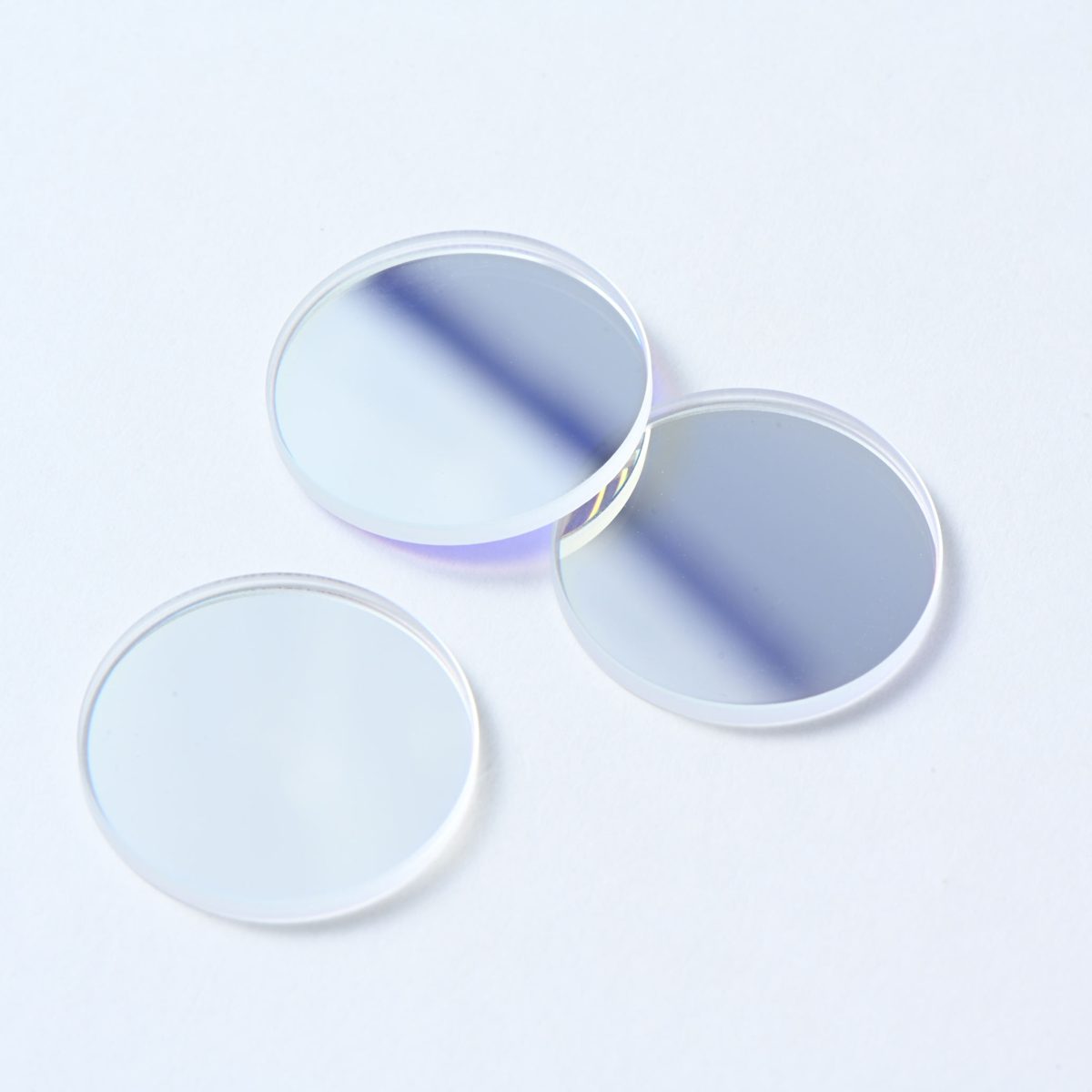

Custom Size K9 Optical Filter, AR Coated
High-performance bandpass filter with 95% transmittance at 700 nm, customizable sizes, and durable AR coating.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 700nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 700nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance and precise wavelength selection. With a center wavelength of 700 nm and a transmission rate of 95%, it effectively isolates desired wavelengths while blocking unwanted light. Ideal for fluorescence microscopy and other optical applications, this filter can be customized for various sizes and thicknesses, ensuring compatibility with different systems and light sources.
Key Features
- Center wavelength at 700 nm for optimal performance in targeted applications.
- High transmittance of 95% ensures maximum light throughput.
- Available thickness options from 1.0 mm to 50.0 mm for application flexibility.

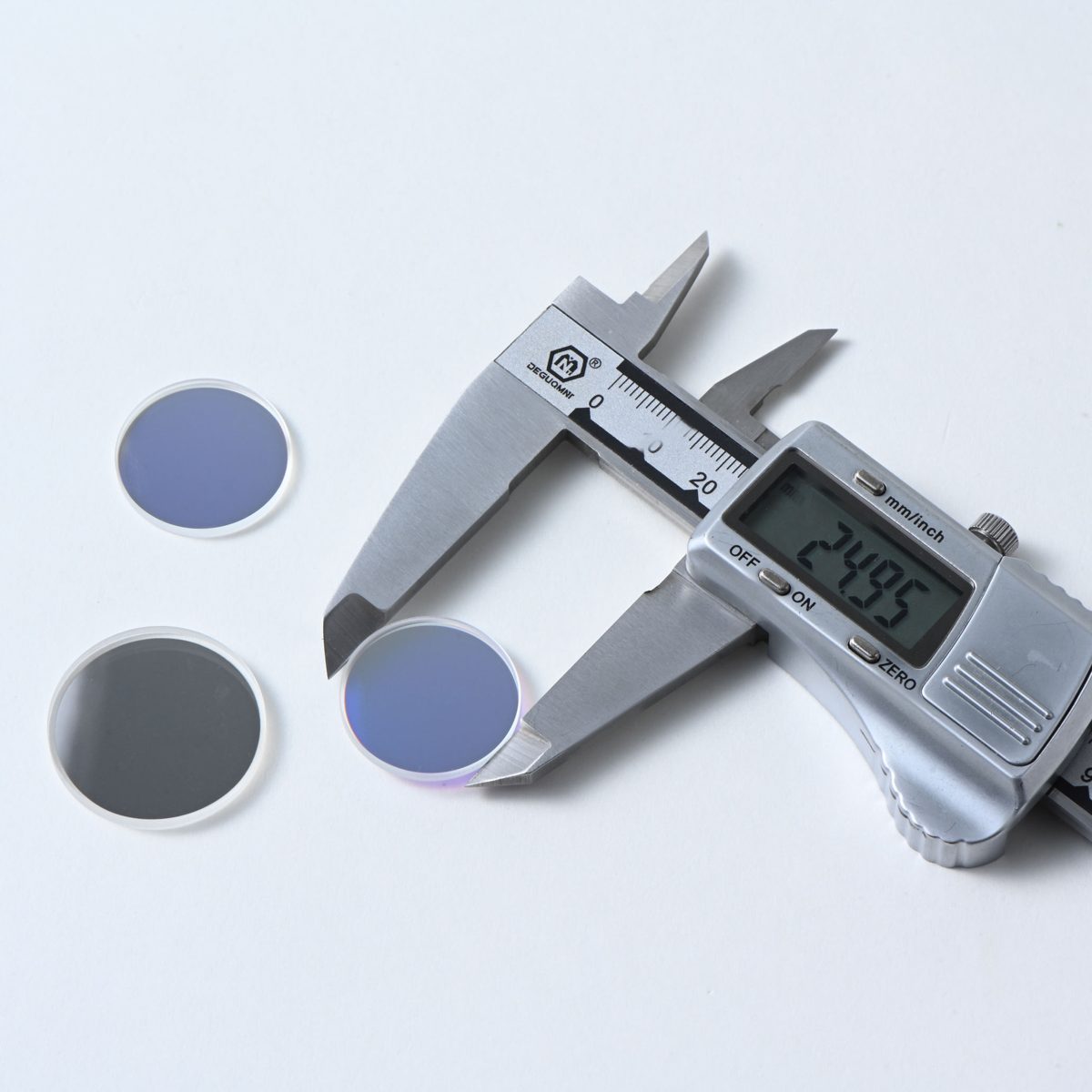

- Customizable sizes with a diameter tolerance of +0/-0.1 mm for precise fitting.
- Durable AR coating enhances performance and extends filter lifespan.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | 1 mm |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 700nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 96% |
| Customized Support | OEM, ODM, OBM; OBM OEM ODM |
| Warranty | 3 Years |
| Diameter Tolerance | +0/-0.1mm |
| Wavelength | 200-1200nm /Custom |
| Thickness Tolerance | ±0.1mm |
| Fwhm | 10nm |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available to fit specific application needs.
What are the thickness tolerances for this filter?
The thickness tolerance is ±0.1 mm, ensuring precise specifications.
