1 / 6Optical Filters

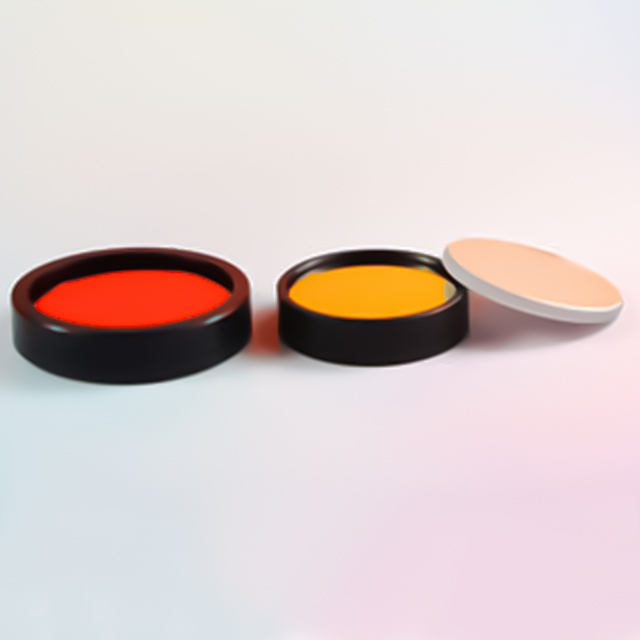

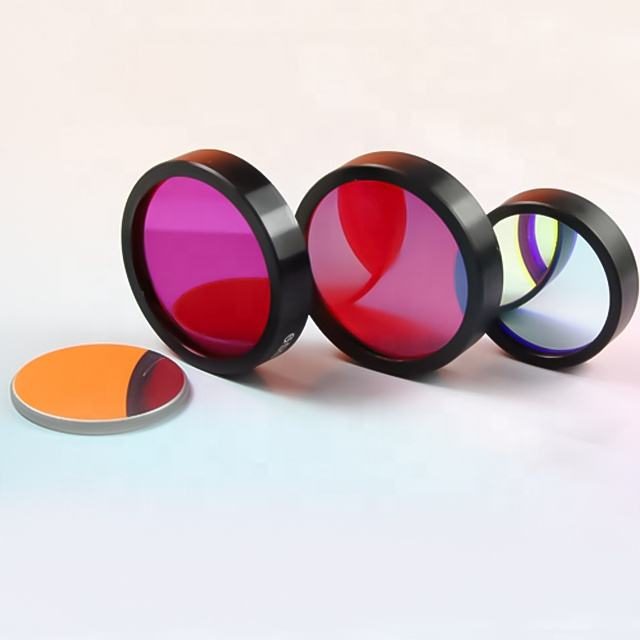

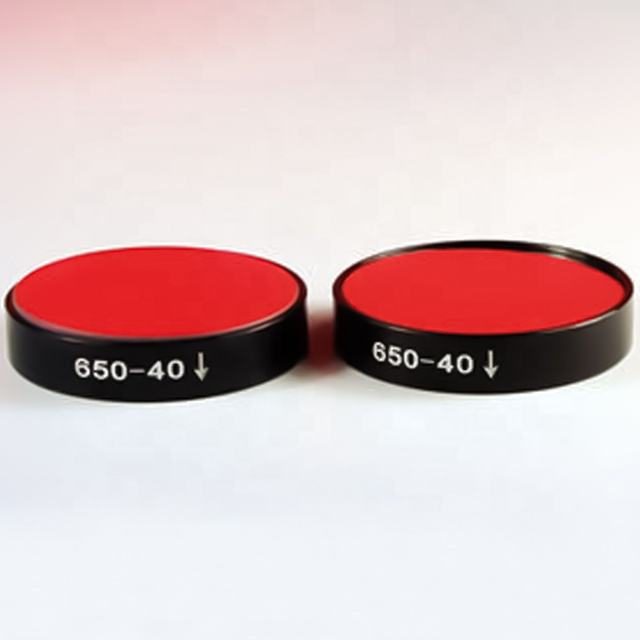

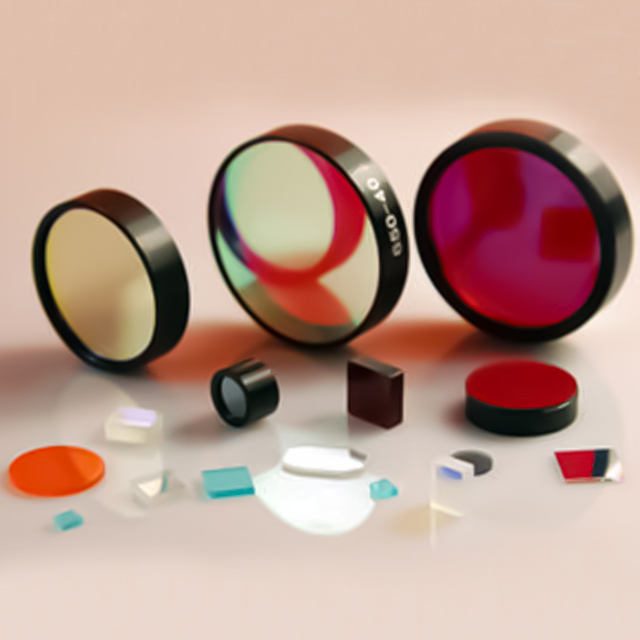

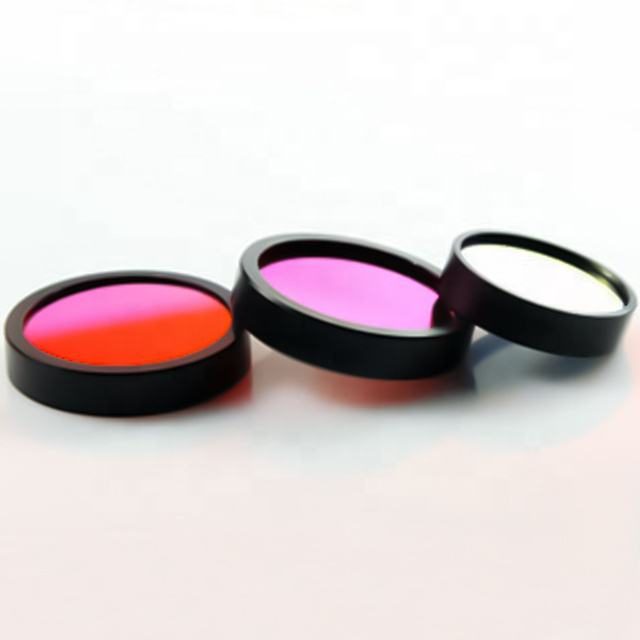

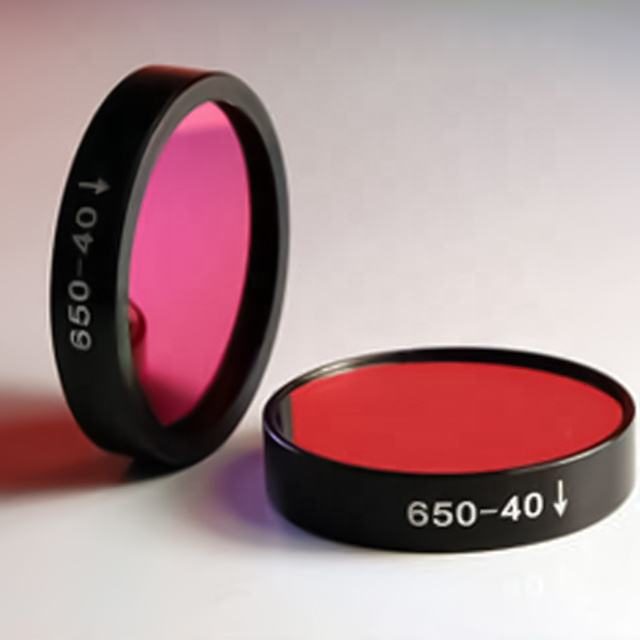

Custom Size K9 Optical Filter
Explore K9 shortpass filters with a center wavelength of 800 nm, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Filter Type
- shortpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Filter Type
- shortpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The K9 shortpass filter is designed to effectively block wavelengths longer than 800 nm, making it ideal for applications in fluorescence microscopy and other optical systems requiring precise wavelength selection. With a center wavelength of 800 nm and a robust iad-pvd coating, this filter ensures high performance in demanding environments. It is available in thicknesses of 1.0 mm and 5.0 mm, catering to various application needs.
Key Features
- Center wavelength of 800 nm +/- 1 nm for precise spectral fit.
- Shortpass filter type effectively blocks longer wavelengths, enhancing application performance.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- Available thicknesses of 1.0 mm and 5.0 mm for versatile application compatibility.
- Manufactured with double-sided polishing for superior optical performance.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Filter Type | shortpass |
| Cwl | 800nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | Fused Silica,B270,K9 |
| Manufacture | Double sided polishing |
| Center Wavelength | 800nm+/-1nm |
| Tolerance | +/-0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are supported with OEM, ODM, and OBM options available.
What is the tolerance for this filter?
The filter has a tolerance of +/- 0.10 mm.
