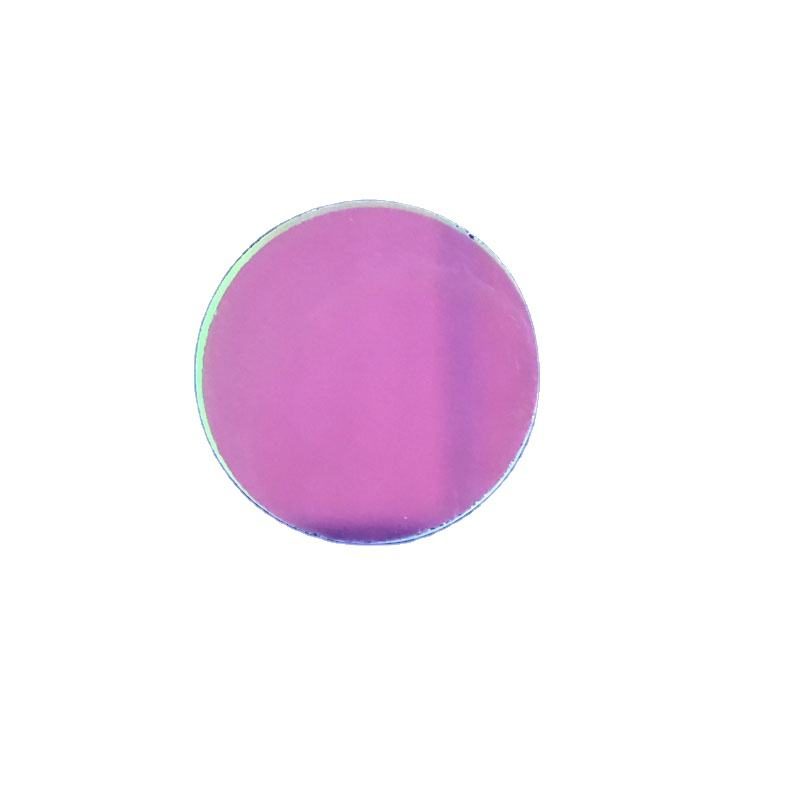

Custom Size K9 Optical Filter
Explore our 1600 nm bandpass filter with 90% transmittance, ideal for laser applications and customizable for specific needs.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1600nm
- Transmission bands
- MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 1600nm
- Transmission bands
- MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for laser applications, effectively transmitting light at the center wavelength of 1600 nm while blocking wavelengths from 350 to 2000 nm, ensuring optimal performance in fluorescence and other laser-based systems. With a high transmittance of 90% and a customizable thickness of 1.0 mm, it meets the needs of various optical setups. This filter is suitable for applications requiring precise spectral control and can be tailored to fit specific requirements.
Key Features
- High transmittance of 90% ensures efficient light transmission.
- Blocks wavelengths from 350 to 2000 nm, enhancing signal clarity.
- Customizable thickness of 1.0 mm for specific application needs.
- Designed for use at 0° or 45° angle of incidence for versatile integration.
- Compatible with a wide wavelength range of 200-3000 nm.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | 1 mm |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 1600nm |
| Transmission bands | MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 98% |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Principle | Cut-off Filter |
| Color | transparent |
| Angle Of Incidence | 0°or 45 degree |
| Fwhm | 36nm ~100nm |
| Wavelength | 200~3000nm |
| Blocking | 350-2000nm except for transmission band |
FAQ
Can I get custom sizes or thicknesses?
Yes, the filter is customizable with a thickness of 1.0 mm.
What is the minimum order quantity?
The minimum order quantity is not specified.
