1 / 6Optical Filters

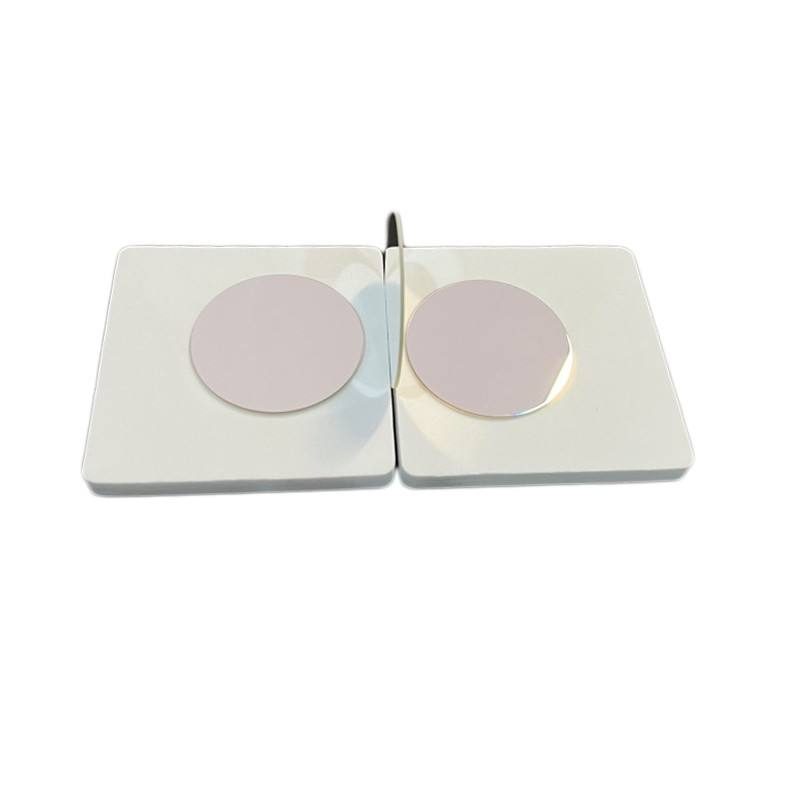

Custom Size K9 Optical Filter, AR Coated
K9 optical filter for fluorescence applications with 90% transmittance at 840 nm, customizable options available.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Cwl
- 840nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Cwl
- 840nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This K9 optical filter is designed for fluorescence applications, specifically optimized for a center wavelength of 840 nm within the 0.7-1.7 μm band. With a high transmittance of 90%, it effectively allows the desired wavelengths to pass while blocking unwanted light. The filter’s durable AR coating enhances performance, making it suitable for various environments. It is ideal for R&D and procurement engineers seeking reliable spectral performance in their optical systems.
Key Features
- Transmittance of 90% ensures effective light passage for fluorescence applications.
- Center wavelength of 840 nm tailored for optimal spectral fit.
- Durable AR coating enhances environmental durability.
- Customizable options available for OEM, ODM, and OBM support.
- OD range from OD3 to OD5 provides versatility in blocking unwanted wavelengths.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Cwl | 840nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 85%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Od | OD3 to OD5 |
| Fwhm | MIN 5nm |
| Certification | Reach |
FAQ
Can I get custom sizes?
Custom sizes are supported through OEM, ODM, and OBM options.
What is the minimum order quantity?
Minimum order quantity (MOQ) details are not specified.
