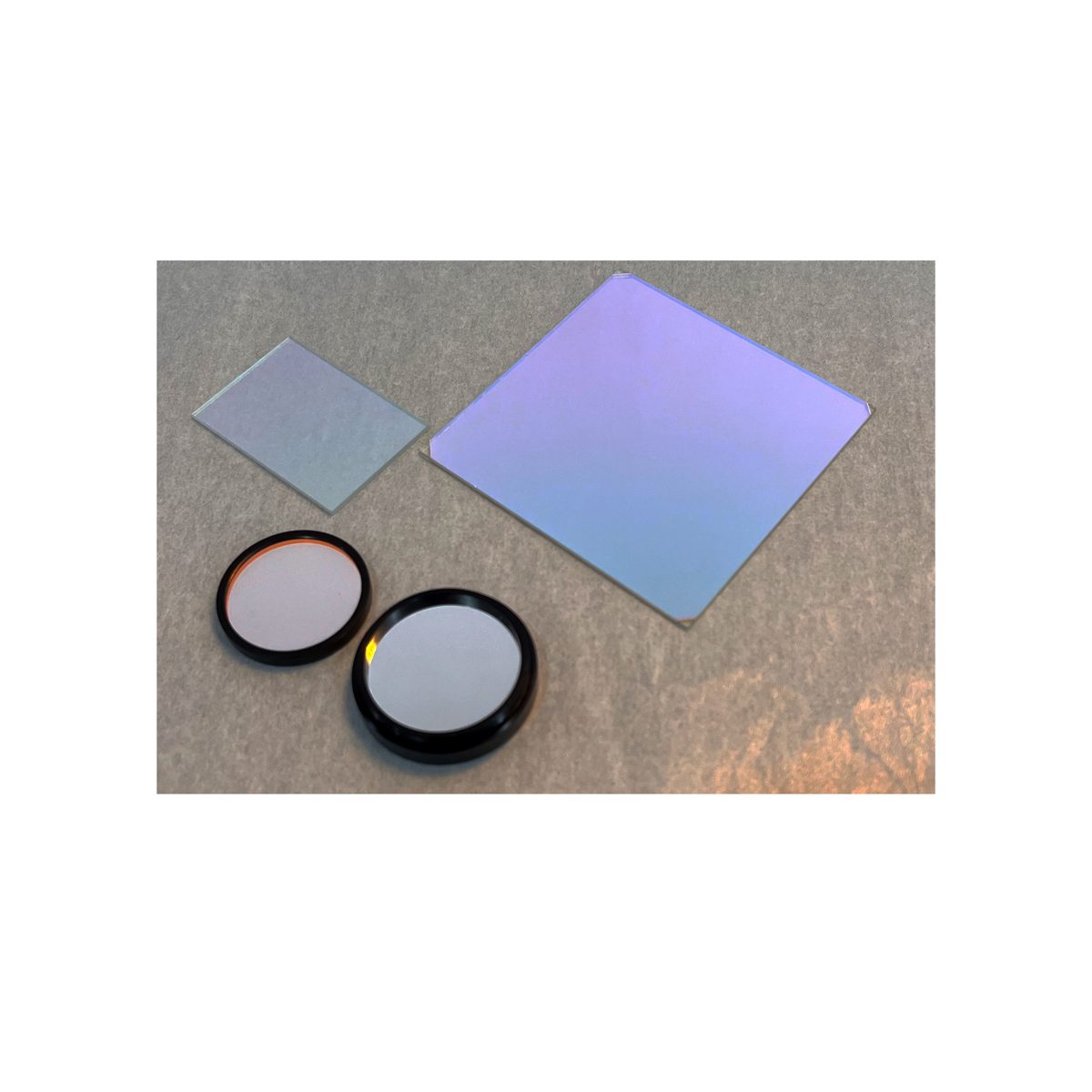

Custom Size K9 Optical Filter, AR Coated
High-performance bandpass filter with 90% transmittance at 630 nm, ideal for fluorescence applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 630nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 630nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the 630 nm wavelength range, making it ideal for fluorescence microscopy and other optical applications. With a transmittance of 90% and a clear aperture of 80%-95%, it ensures efficient light transmission while effectively filtering out unwanted wavelengths. The filter’s K9 material and anti-reflective coating enhance durability and performance across various environments.
Key Features
- Transmittance of 90% ensures optimal light throughput for enhanced imaging.
- Bandpass filter type specifically targets the 630 nm center wavelength for precise applications.
- Surface quality of 40/20 guarantees minimal distortion and high clarity.
- Clear transparent color and high clear aperture improve visibility and performance.
- Customizable options available for OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 630nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 80%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
FAQ
Can I get custom sizes?
Yes, customizable options are available for OEM, ODM, and OBM.
What is the surface quality specification?
The surface quality is specified as 40/20.
