1 / 6Optical Filters

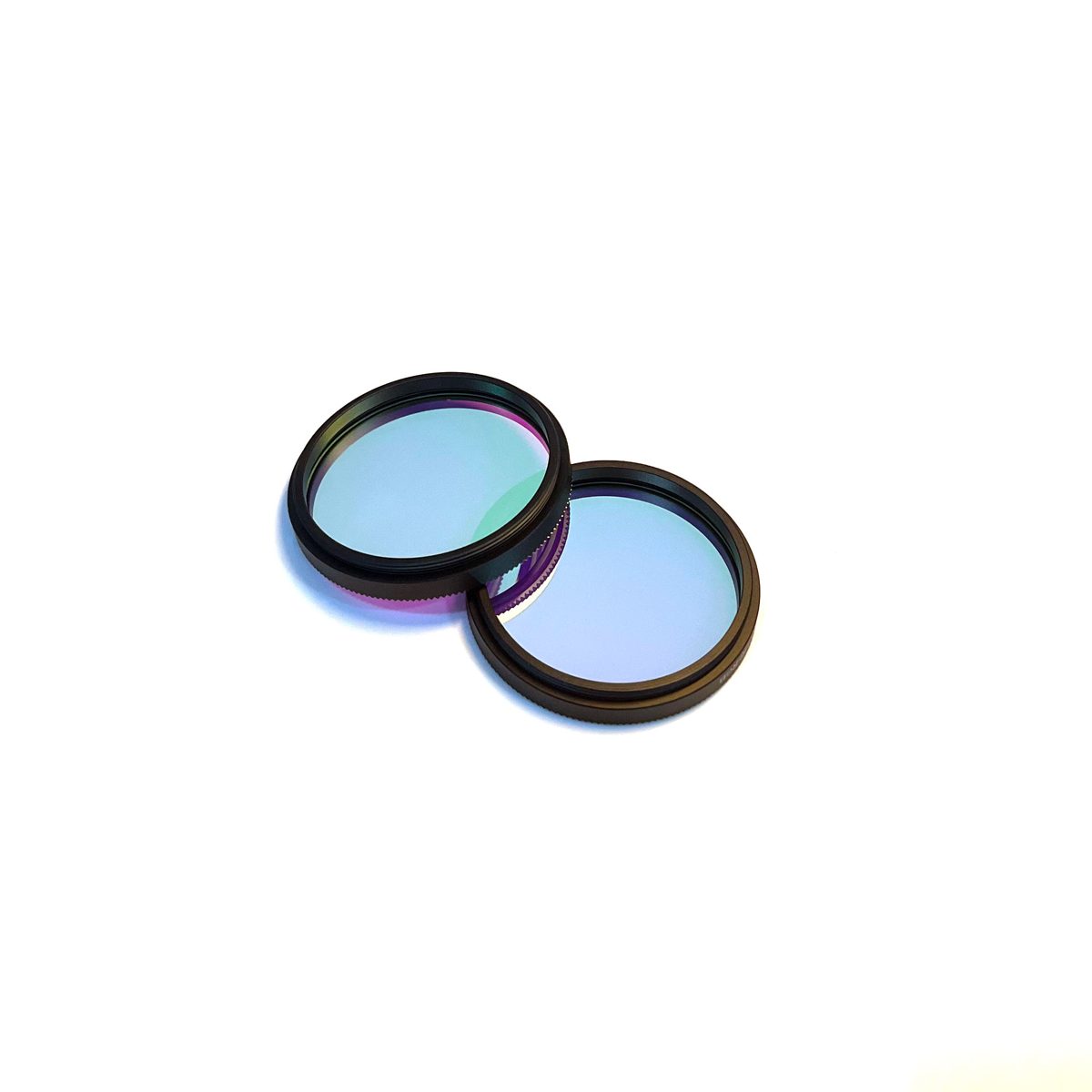

Custom Size K9 Optical Filter, AR Coated
High-performance bandpass filter (860 nm) with 90% transmittance for optical applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 860nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 860nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The Bandpass Filter is designed to selectively transmit wavelengths between 0.7-1.7 μm, making it ideal for applications in fluorescence microscopy and life sciences. With a center wavelength of 860 nm and a high transmittance of 90%, this filter ensures optimal performance in various optical setups. Its durable K9 material and anti-reflective coatings enhance environmental resilience, providing reliable operation in demanding conditions.
Key Features
- Transmittance of 90% ensures maximum light throughput for enhanced imaging.
- Designed for the 0.7-1.7 μm range, suitable for various applications.
- K9 material with anti-reflective coatings for improved durability.
- Clear aperture of 80%~95% allows for effective light transmission.
- Customizable options available for OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 860nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 85%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Name | Bandpass Filter |
| Clear Aperture | 80%~95% |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
