1 / 6Optical Filters

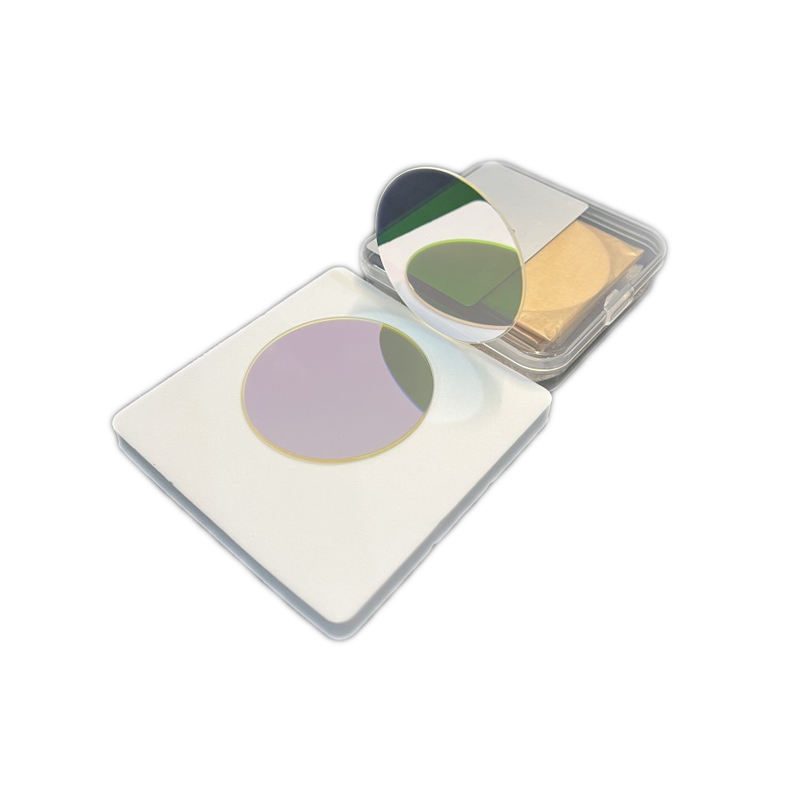

Custom Size K9 Optical Filter, AR Coated
High-performance bandpass filter for fluorescence and microscopy with 90% transmittance at 920 nm.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 920nm
- Fwhm
- 10nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 920nm
- Fwhm
- 10nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications in fluorescence and microscopy, effectively transmitting light in the range of 0.7-1.7 μm with a center wavelength of 920 nm and a full width at half maximum (FWHM) of 10 nm. With a high transmittance of 90%, it ensures optimal performance for precise imaging and analysis. The filter’s hard coating enhances its durability, making it suitable for various environmental conditions, ensuring reliability in critical applications.
Key Features
- High transmittance of 90% for superior light throughput.
- Center wavelength of 920 nm tailored for fluorescence applications.
- FWHM of 10 nm for precise spectral selection.
- Durable AR coating for enhanced environmental resistance.
- Surface quality of 40/20 ensures minimal distortion.
Applications
Fluorescence, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 920nm |
| Fwhm | 10nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 85%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
FAQ
Can I get custom sizes?
Custom sizes are not specified, but OEM and ODM support is available.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not provided.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
