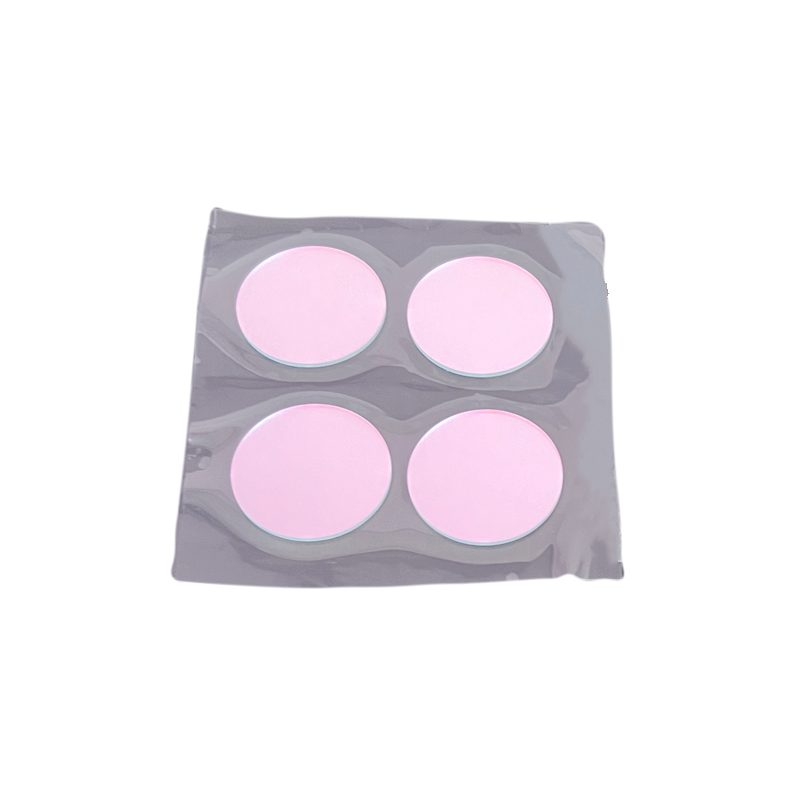

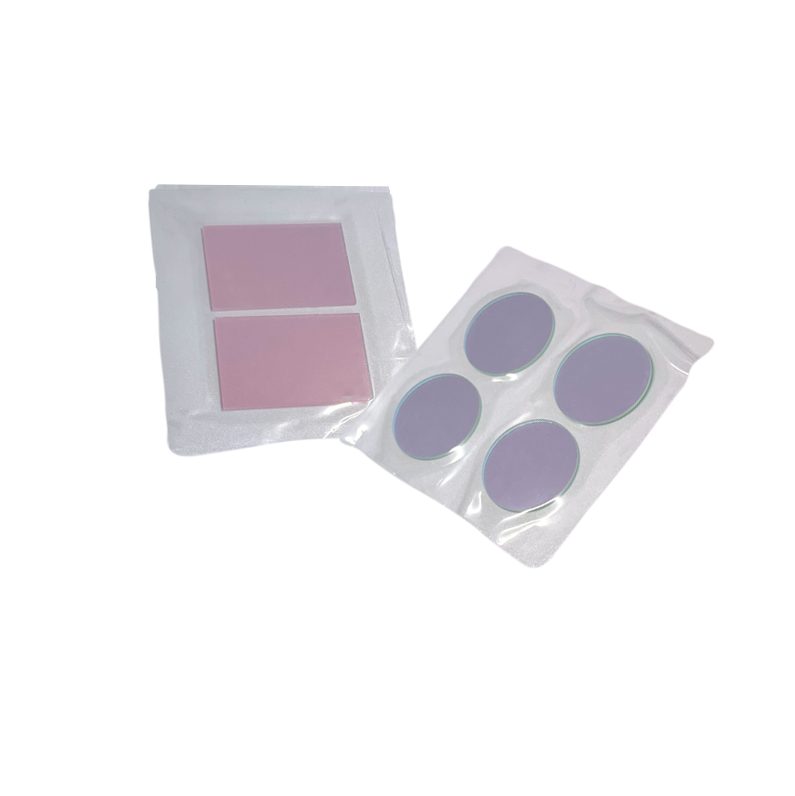

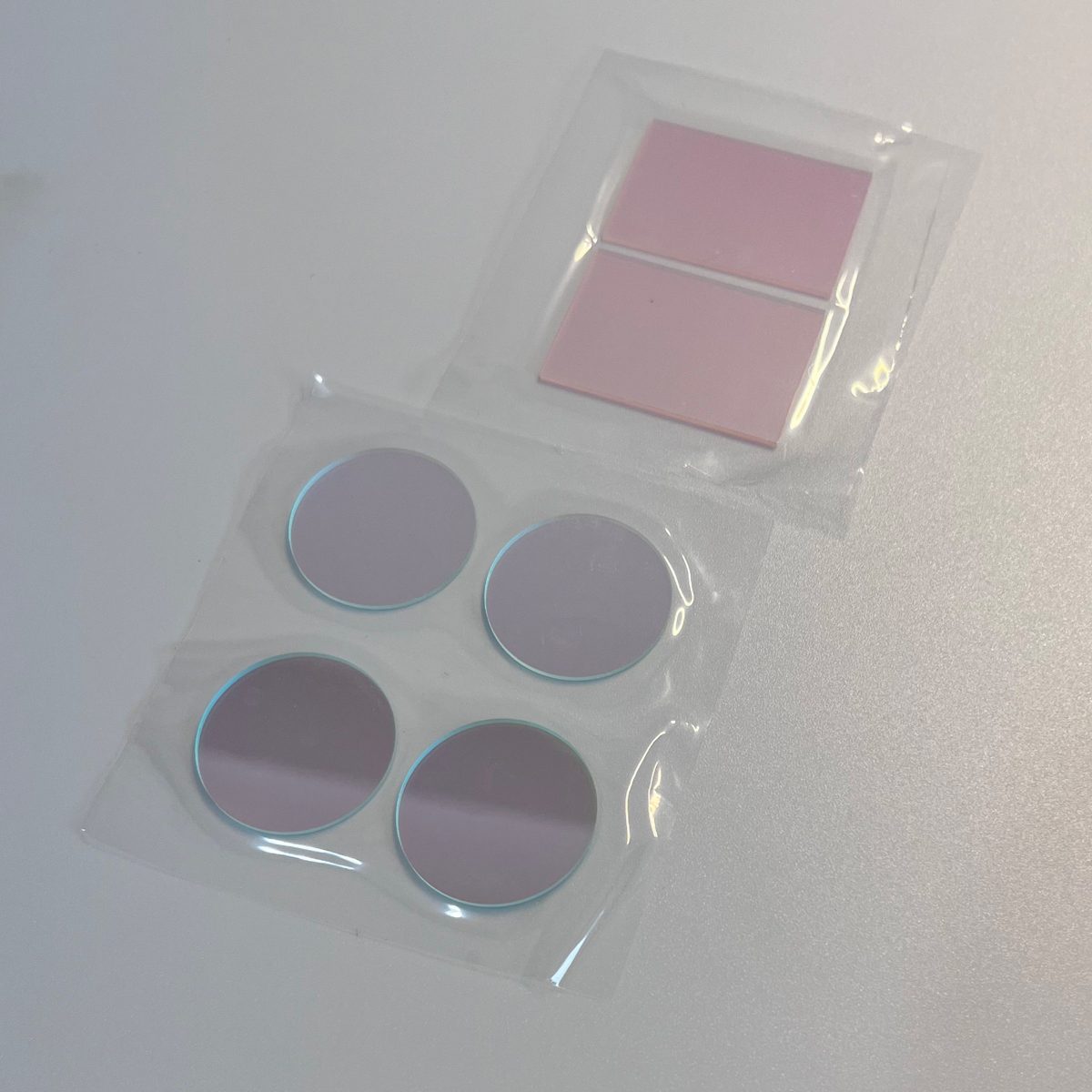

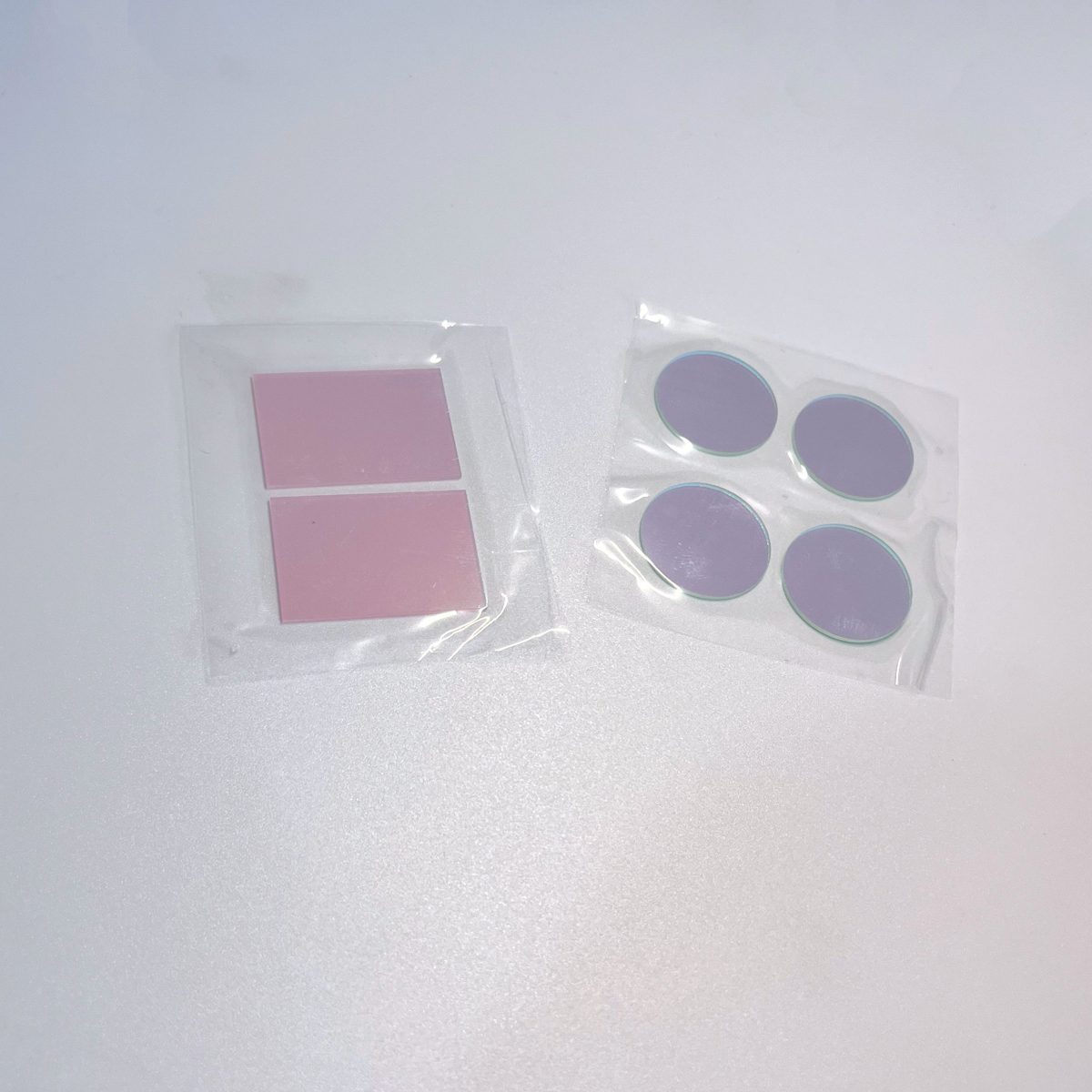

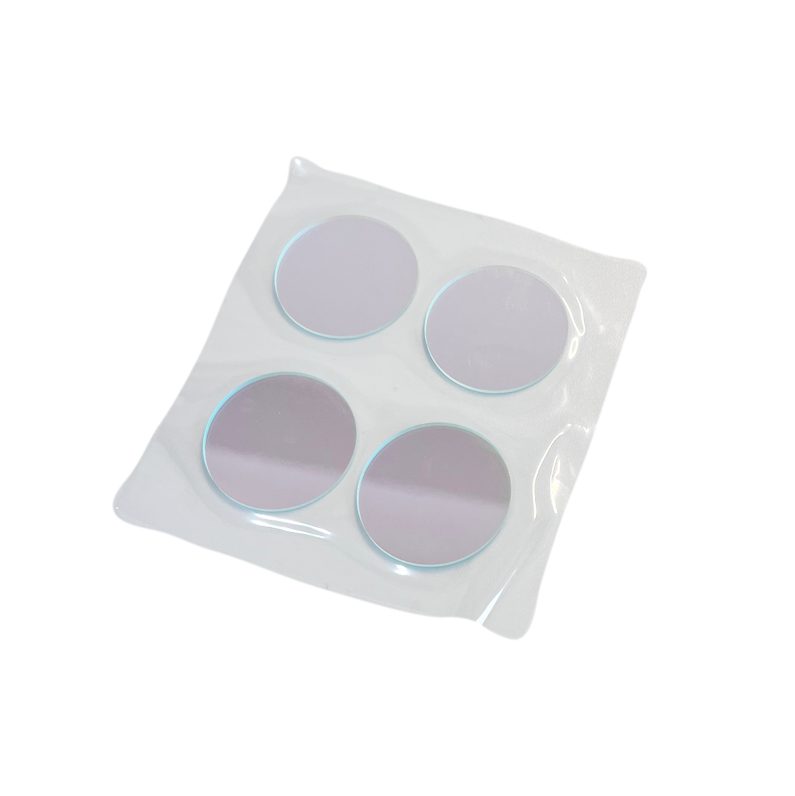

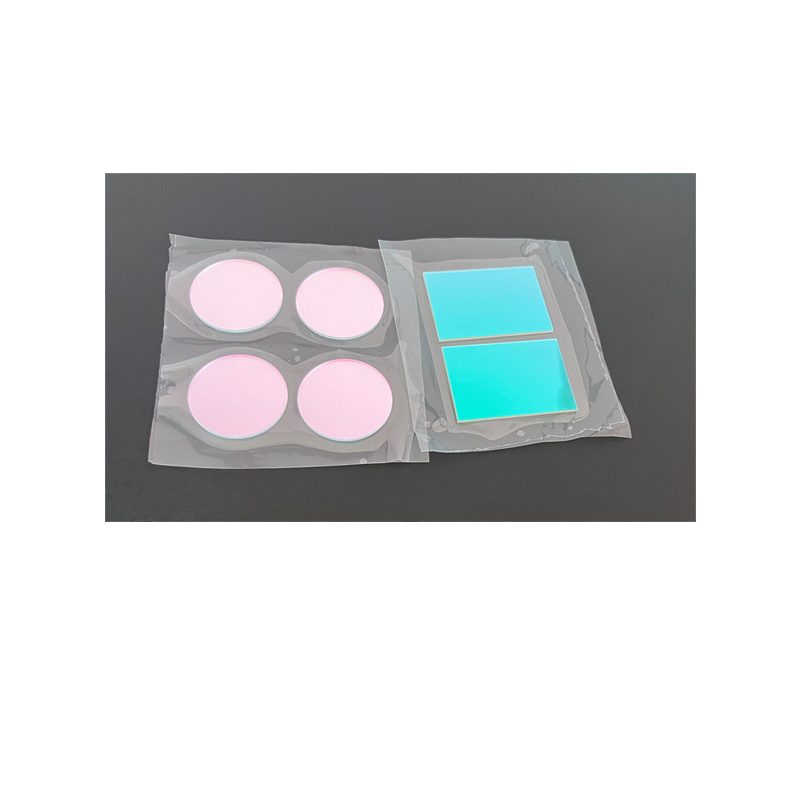

Custom Size K9 Optical Filter, AR Coated
High-performance optical filter for fluorescence microscopy with 95% transmittance and customizable options.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This optical filter is designed for applications in fluorescence microscopy, providing high transmittance across the 400-700 nm range and effective blocking of wavelengths below 400 nm. With a transmittance rate of 95%, it ensures optimal light delivery for precise imaging. The filter’s clear transparent color and excellent surface quality (40/20) enhance its performance in various scientific and industrial applications.
Key Features
- 95% transmittance ensures maximum light throughput for accurate fluorescence imaging.
- AR coating enhances performance by reducing reflections, improving overall efficiency.
- Surface quality of 40/20 guarantees minimal distortion for high-resolution applications.
- Clear aperture of 85%-95% allows for effective light passage, optimizing imaging quality.
- Customizable options available for OEM, ODM, and OBM support to meet specific project needs.
Applications
Fluorescence, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 95% |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 80%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | Clear Transparent |
| Clear Aperture | 85%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
FAQ
Can I get custom sizes?
Yes, customizable options are available for OEM, ODM, and OBM support.
What is the surface quality of the filter?
The filter has a surface quality of 40/20, ensuring minimal distortion.
