1 / 6Optical Filters
Custom Size K9 Optical Filter, AR Coated
K9 bandpass filter with 90% transmittance, 480 nm center wavelength, ideal for fluorescence applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 480nm
- Fwhm
- 10nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 480nm
- Fwhm
- 10nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description

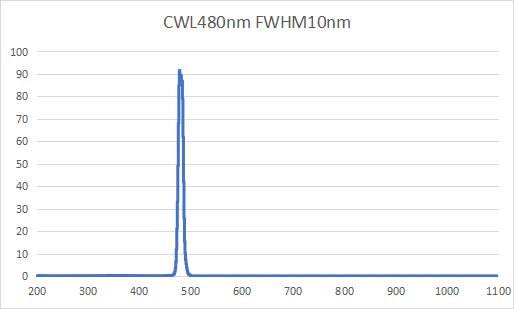

This K9 bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 480 nm and a full width at half maximum (FWHM) of 10 nm, it ensures high transmittance of 90%, making it ideal for fluorescence microscopy and other optical applications. Its anti-reflective coating enhances performance, while a surface quality of 40/20 guarantees minimal distortion.
Key Features
- 90% transmittance ensures optimal light throughput for enhanced imaging.
- Center wavelength of 480 nm tailored for specific fluorescence applications.
- FWHM of 10 nm provides precise filtering to reduce background noise.
- Surface quality of 40/20 minimizes optical distortion for clear images.
- OEM, ODM, and OBM support available for customized solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 480nm |
| Fwhm | 10nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 85%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 years |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What is the surface quality tolerance?
The surface quality is specified at 40/20.
