1 / 6Optical Filters

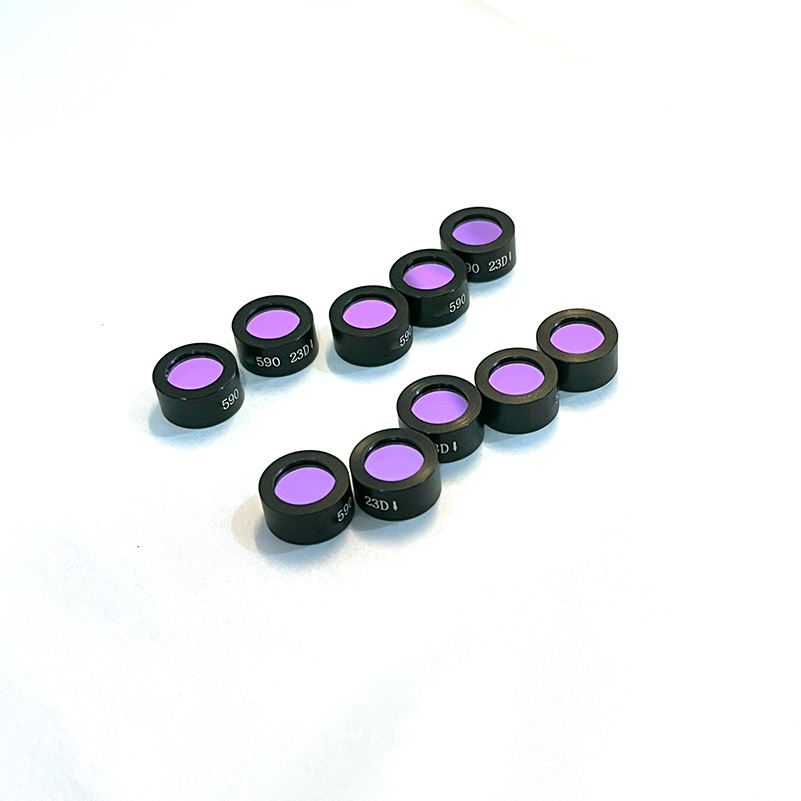

Custom Size K9 Optical Filter, AR Coated
K9 bandpass filter with 590 nm center wavelength and 56% transmittance, ideal for optical instruments.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 56%
- Filter Type
- bandpass
- Cwl
- 590nm
- Fwhm
- 8nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 56%
- Filter Type
- bandpass
- Cwl
- 590nm
- Fwhm
- 8nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
The K9 bandpass filter is designed to enhance optical instrument performance by selectively transmitting light within the 400-700 nm range, centered at 590 nm with a narrow FWHM of 8 nm. With a transmittance of 56%, this filter effectively blocks unwanted wavelengths, making it ideal for applications in fluorescence microscopy and other optical setups. Its AR coating ensures minimal reflection, enhancing overall light throughput.
Key Features
- Center Wavelength: 590 nm for optimal spectral fit in various applications.
- FWHM of 8 nm ensures precise wavelength selection, enhancing image clarity.
- Transmittance of 56% maximizes light capture while blocking undesired wavelengths.
- Surface Quality of 40/20 provides excellent optical performance.
- Customizable options available for OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 56% |
| Filter Type | bandpass |
| Cwl | 590nm |
| Fwhm | 8nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | Fifty Percent; 56% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
| Use | for optical instruments |
FAQ
Can this filter be customized in size?
Custom sizes are available through OEM, ODM, and OBM support.
What are the tolerances for this filter?
Radius tolerance is +/-0.5% and centration is <3 Arcmin.
