1 / 6Optical Filters

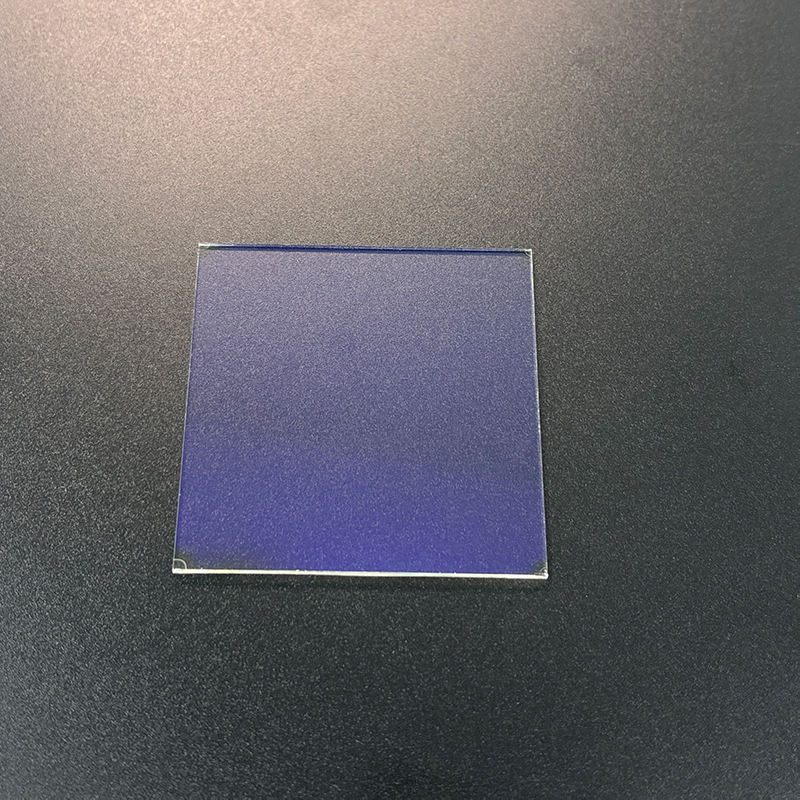

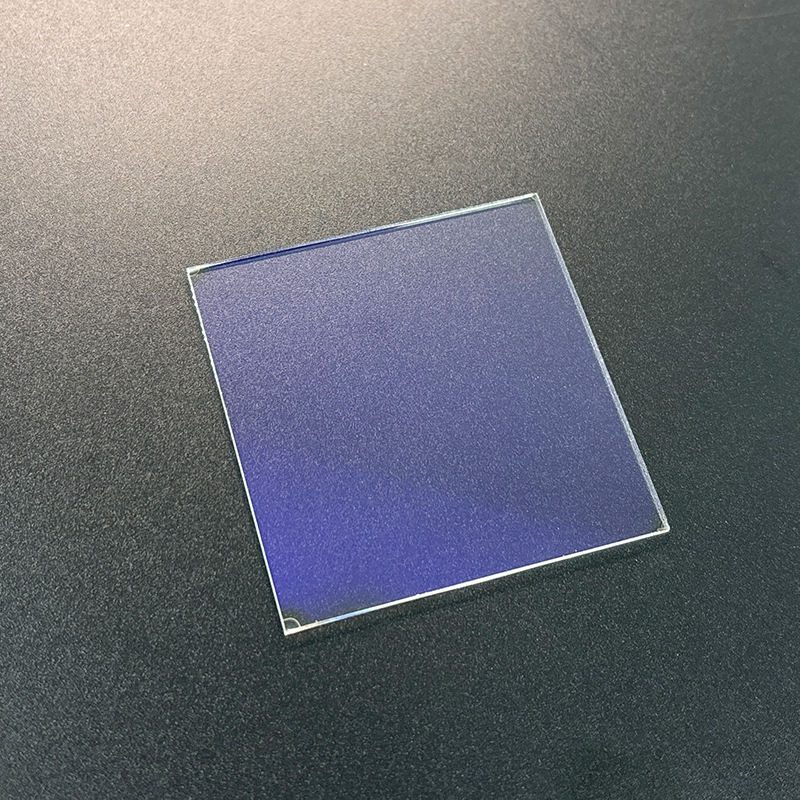

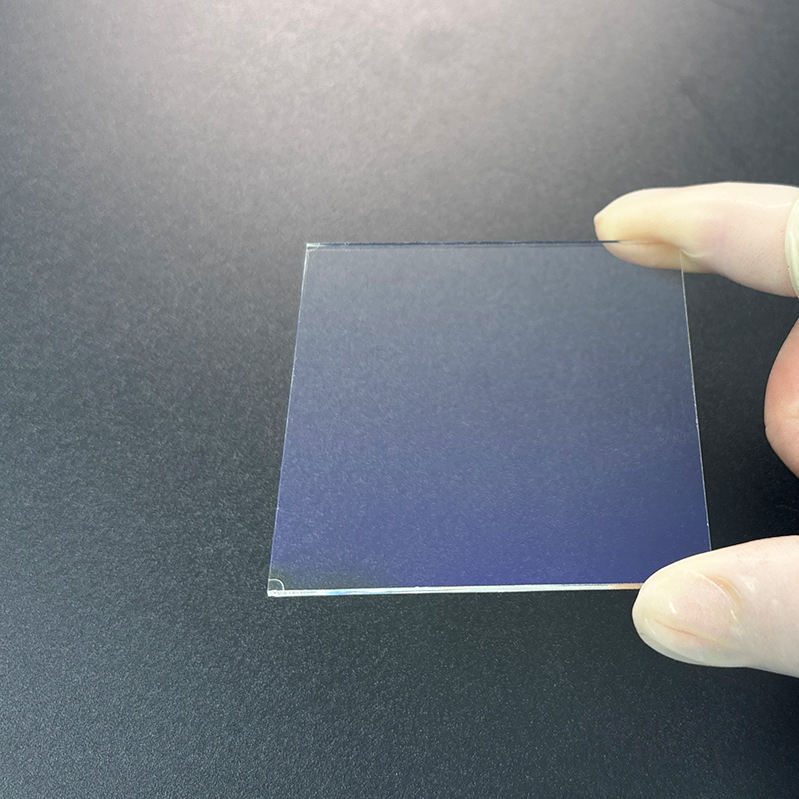

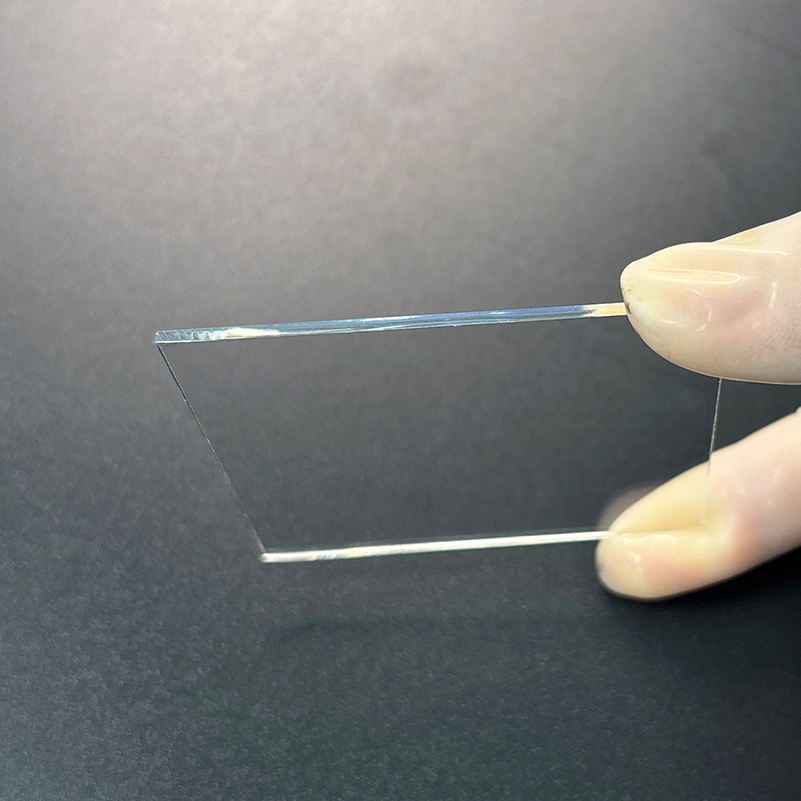

Custom Size K9 Optical Filter, AR Coated
High-performance longpass filter for medical applications with 95% transmittance and customizable options.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- longpass
- Cwl
- 450nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- longpass
- Cwl
- 450nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description

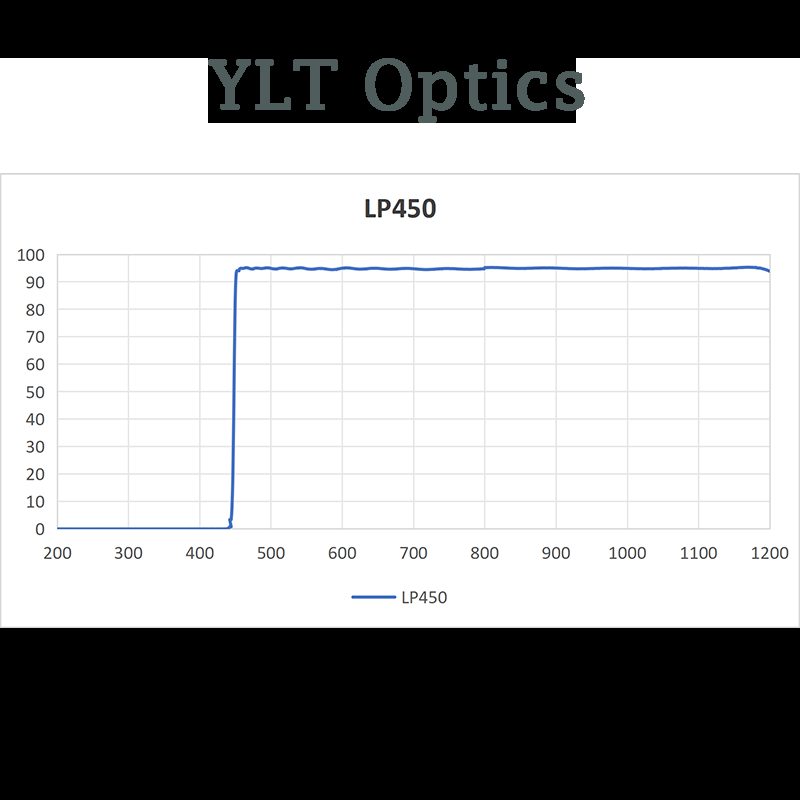

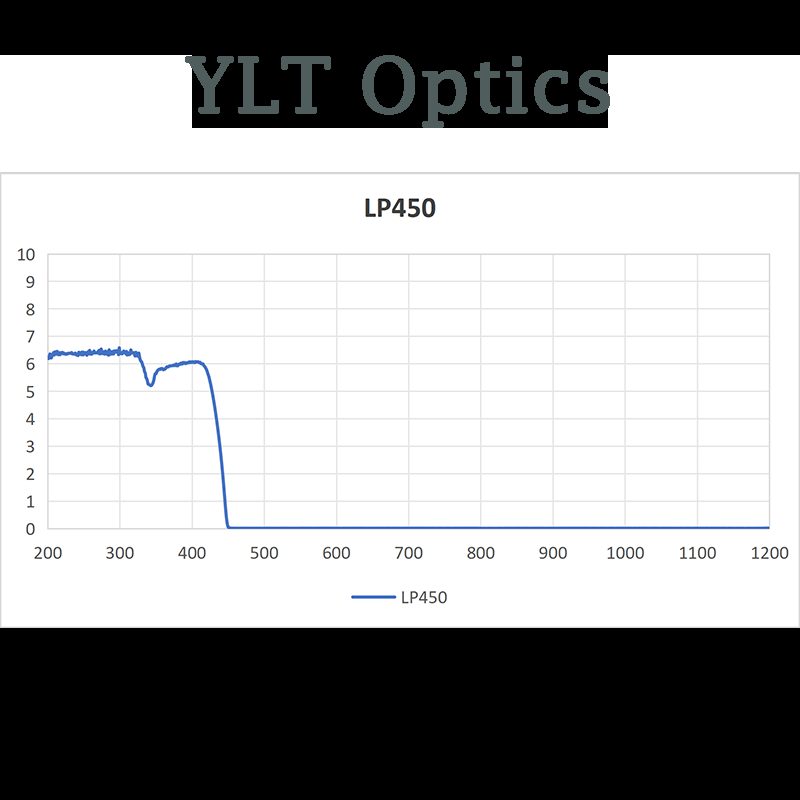

This longpass filter is designed for medical applications, effectively transmitting wavelengths above 450 nm while blocking shorter wavelengths. With a high transmittance of 95%, it ensures optimal light delivery for fluorescence microscopy and other imaging techniques. Constructed from K9 glass and featuring anti-reflective coatings, this filter offers durability and reliable performance in demanding environments.
Key Features
- Transmittance of 95% ensures maximum light throughput for enhanced imaging.
- Longpass filter type effectively blocks unwanted shorter wavelengths, improving signal clarity.
- Surface quality rated at 40/20 provides minimal distortion for precise optical performance.
- Clear transparent color allows for accurate color representation in medical applications.
- Radius tolerance of +/-0.5% ensures consistent performance across batches.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 95% |
| Filter Type | longpass |
| Cwl | 450nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 80%~95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Radius Tolerance | +/-0.5% |
| Centration | <3 Arcmin |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What is the minimum order quantity?
Minimum order quantity details are not specified; please inquire for specifics.
