1 / 6Optical Filters

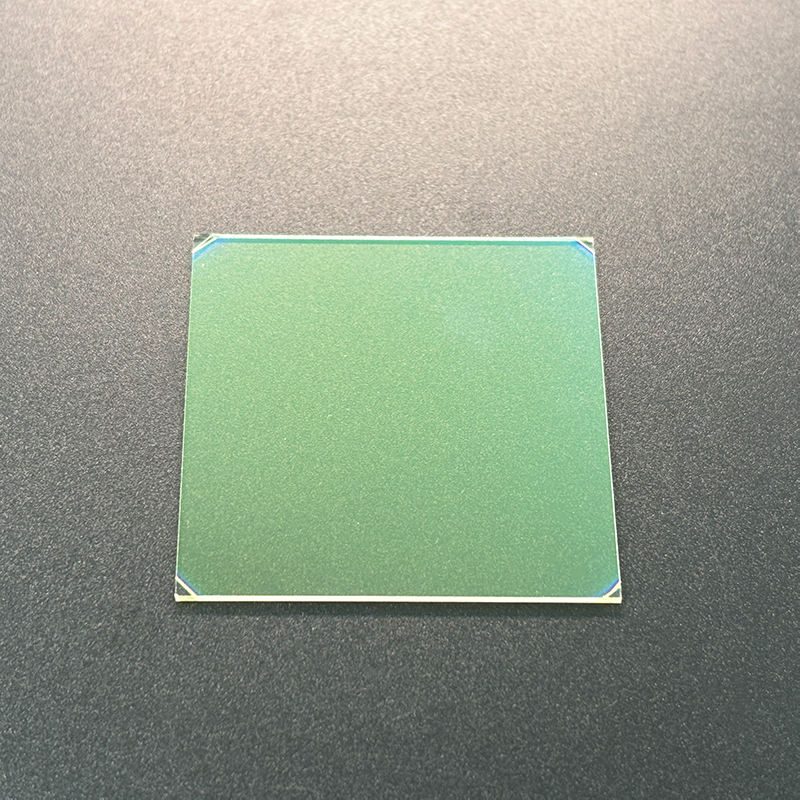

Custom Size K9 Optical Filter, AR Coated
Shortpass filter with 90% transmittance, ideal for fluorescence applications. Custom sizes available.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- shortpass
- Cwl
- 600nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- shortpass
- Cwl
- 600nm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description

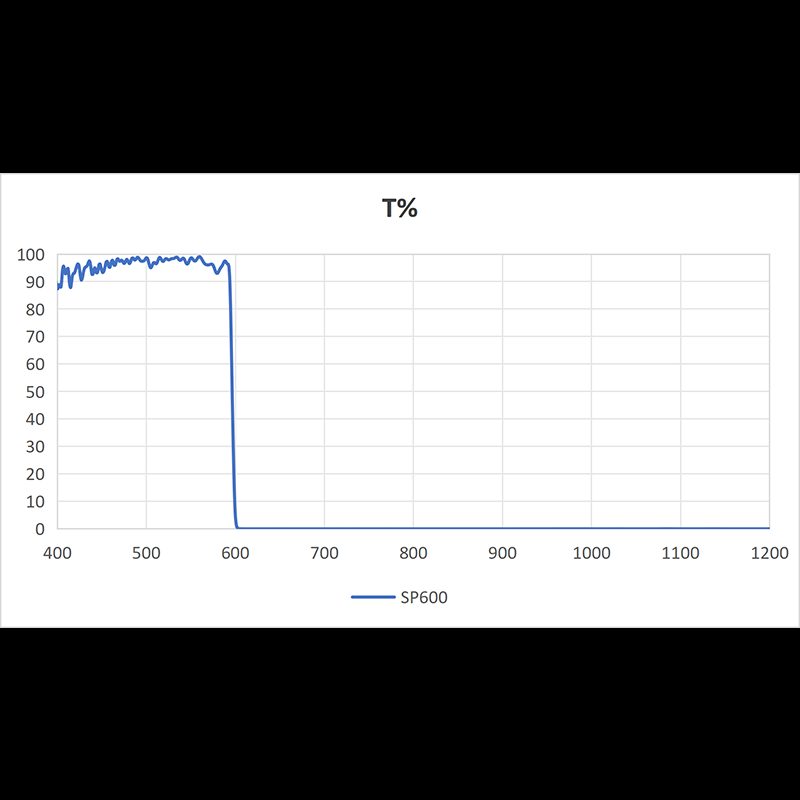

This shortpass filter is designed for fluorescence applications, effectively blocking wavelengths above 600 nm while allowing transmission of shorter wavelengths (400-595 nm) with a high transmittance of 90%. Ideal for enhancing signal clarity in fluorescence microscopy, it ensures optimal performance when paired with appropriate light sources and detectors. The filter is made from K9 material and features an anti-reflective coating for improved transmission efficiency.
Key Features
- Transmittance of 90% ensures high light throughput for enhanced imaging.
- Shortpass design effectively blocks wavelengths above 600 nm, ideal for fluorescence applications.
- Optical coating minimizes reflections, improving overall filter performance.
- Compatible with custom OEM, ODM, and OBM solutions for tailored applications.
- Surface quality rated at 40/20 for minimal distortion and high clarity.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | shortpass |
| Cwl | 600nm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Transmission | 400-595 |
| Coating Type | Optical Coating |
| Clear Aperture | 80%~95% |
| Substrate | Fused Silica |
| Aoi | O degree |
FAQ
Can I get custom sizes for this filter?
Custom sizes are supported through OEM, ODM, and OBM options.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
