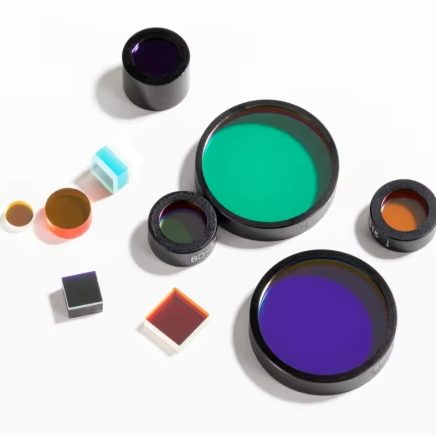

Custom Size K9 Optical Filter
High-performance optical filter with 90% transmittance and 523 nm center wavelength, ideal for fluorescence applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Cwl
- 523nm
- Fwhm
- 20nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Cwl
- 523nm
- Fwhm
- 20nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- VIS (400-700 nm)
- MOQ
- 1 Piece
Product description
This optical filter is designed for applications requiring high transmittance and precise wavelength selection. With a center wavelength of 523 nm and a full width at half maximum (FWHM) of 20 nm, it effectively isolates specific spectral bands, making it ideal for fluorescence microscopy and other optical applications. The filter’s hard coating ensures durability, while its high transmission rate of 90% maximizes light efficiency.
Key Features
- Transmittance > 90% for optimal light efficiency.
- Center wavelength of 523 nm for precise spectral fit.
- FWHM of 20 nm for effective band isolation.
- OD6 blocking from 200-900 nm for minimal interference.
- Available in multiple sizes (8-30 mm) with custom options.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Cwl | 523nm |
| Fwhm | 20nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | VIS (400-700 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | T>90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Center Wavelength | 523nm |
| Fwhm | 20nm |
| Blocking | OD6 @200-900 |
| Size(Mm) | 8,10,12,12.5,12.7,20,25,25.4,30 or Custom |
| Moq | 1 Piece |
FAQ
What is the minimum order quantity?
The minimum order quantity is 1 piece.
Are custom sizes available?
Yes, custom sizes can be provided along with standard sizes.
