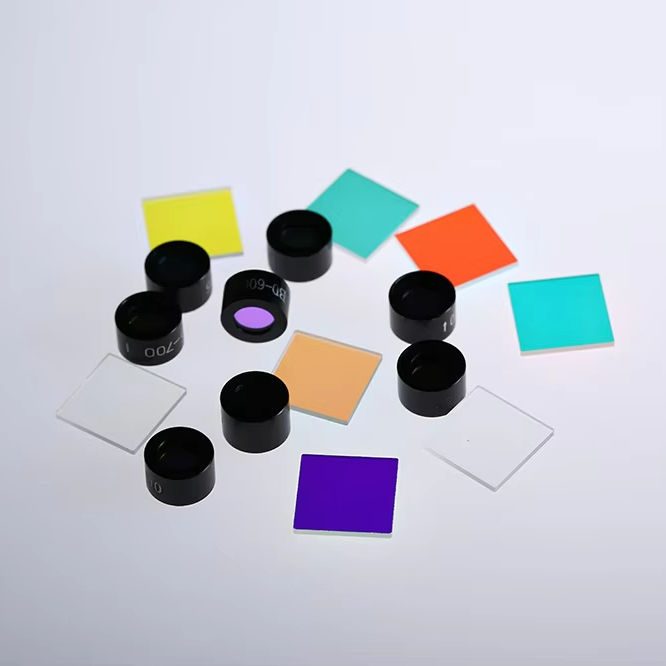

Custom Size K9 Optical Filter

Product description

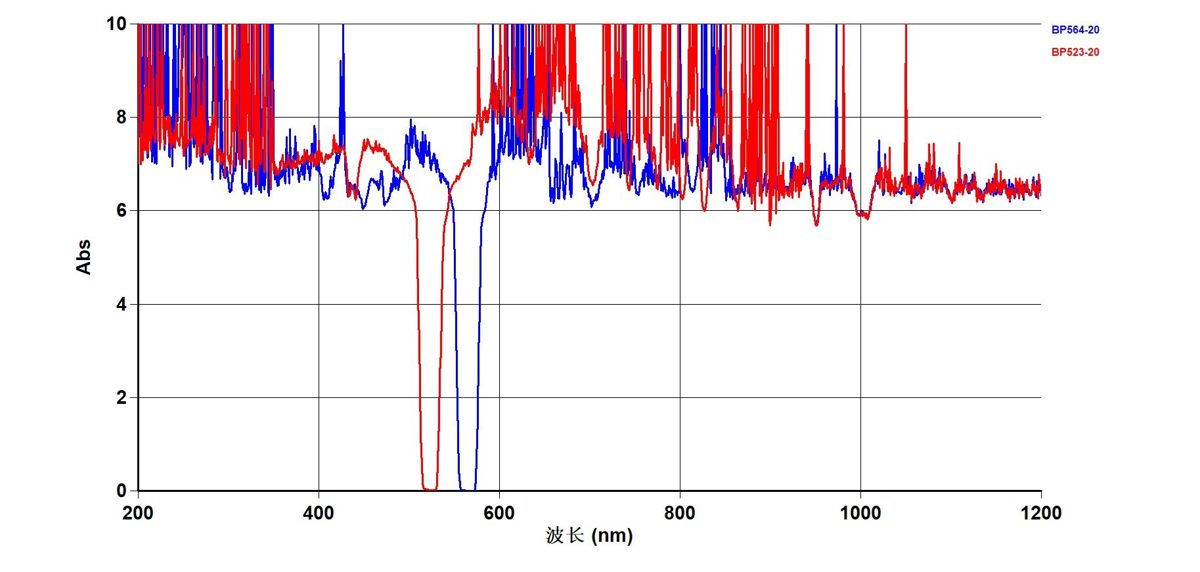

This bandpass filter is designed for fluorescence applications, specifically targeting a center wavelength of 564 nm with a full width at half maximum (FWHM) of 20 nm. With a high transmittance of over 90%, it ensures optimal light transmission while effectively blocking unwanted wavelengths (OD6 from 200-900 nm). The filter is suitable for various setups, providing reliable performance in demanding environments.

Key Features

High transmittance (T>90%) for enhanced signal clarity.
Center wavelength at 564 nm tailored for fluorescence applications.
Effective blocking (OD6) from 200-900 nm to minimize interference.
Custom sizes available (8-30 mm or custom dimensions) to fit specific needs.
Durable hard-coat finish for environmental resilience.

Applications

Fluorescence

Specification Summary

Item	Value
Material	K9
Size	Custom
Thickness	Custom
Transmittance	90%
Cwl	564nm
Coating	hard-coat
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	T>90%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Center Wavelength	564nm
Fwhm	20nm
Blocking	OD6 @200-900
Size(Mm)	8,10,12,12.5,12.7,20,25,25.4,30 or Custom
Moq	1 Piece

FAQ

What are the available sizes for this filter?

Sizes include 8, 10, 12, 12.5, 12.7, 20, 25, 25.4, and 30 mm, with options for custom dimensions.

What is the minimum order quantity?

The minimum order quantity is 1 piece.
