1 / 6Optical Filters

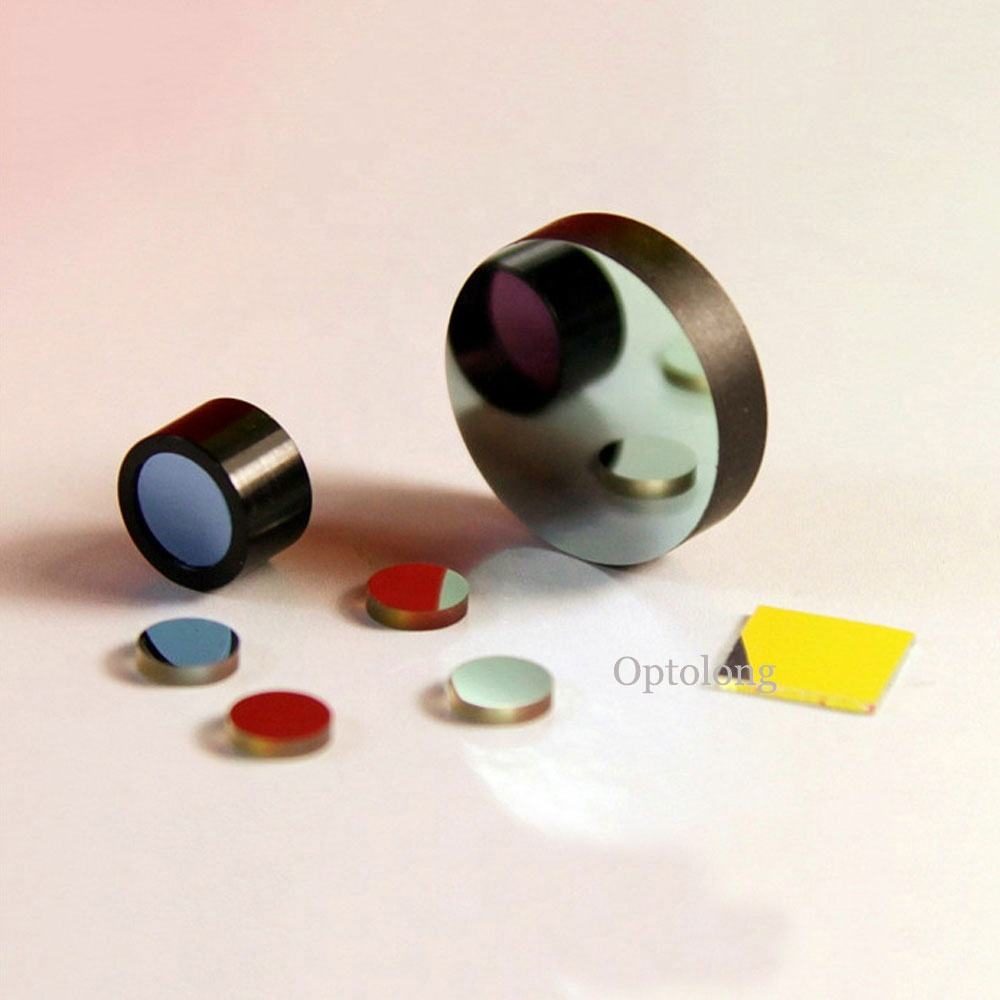

Custom Size K9 Optical Filter
K9 bandpass filter with 650 nm center wavelength and 85% transmittance, ideal for fluorescence microscopy applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 650nm
- Fwhm
- 50nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 650nm
- Fwhm
- 50nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This K9 bandpass filter is designed for applications requiring precise wavelength selection within the 400-700 nm range. With a center wavelength of 650 nm and a full width at half maximum (FWHM) of 50 nm, it effectively transmits 85% of the desired light while blocking out unwanted wavelengths. The hard-coated surface enhances durability, making it suitable for various environments in fluorescence microscopy and other optical applications.
Key Features
- Center Wavelength: 650 nm for optimal spectral fit in targeted applications.
- FWHM: 50 nm ensures precise bandwidth selection.
- Transmittance: 85% allows for high light throughput.
- Durable hard-coat for enhanced environmental resistance.
- Custom support available for OEM, ODM, and OBM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 650nm |
| Fwhm | 50nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | Fused Silica,B270,K9 |
| Center Wavelength | 650nm (select available) |
| Certification | RoHS,ISO9001,EPR |
FAQ
Can I get custom sizes?
Custom sizes are supported under OEM, ODM, and OBM options.
What is the minimum order quantity?
Minimum order quantity details are not specified.
