1 / 6Optical Mirrors

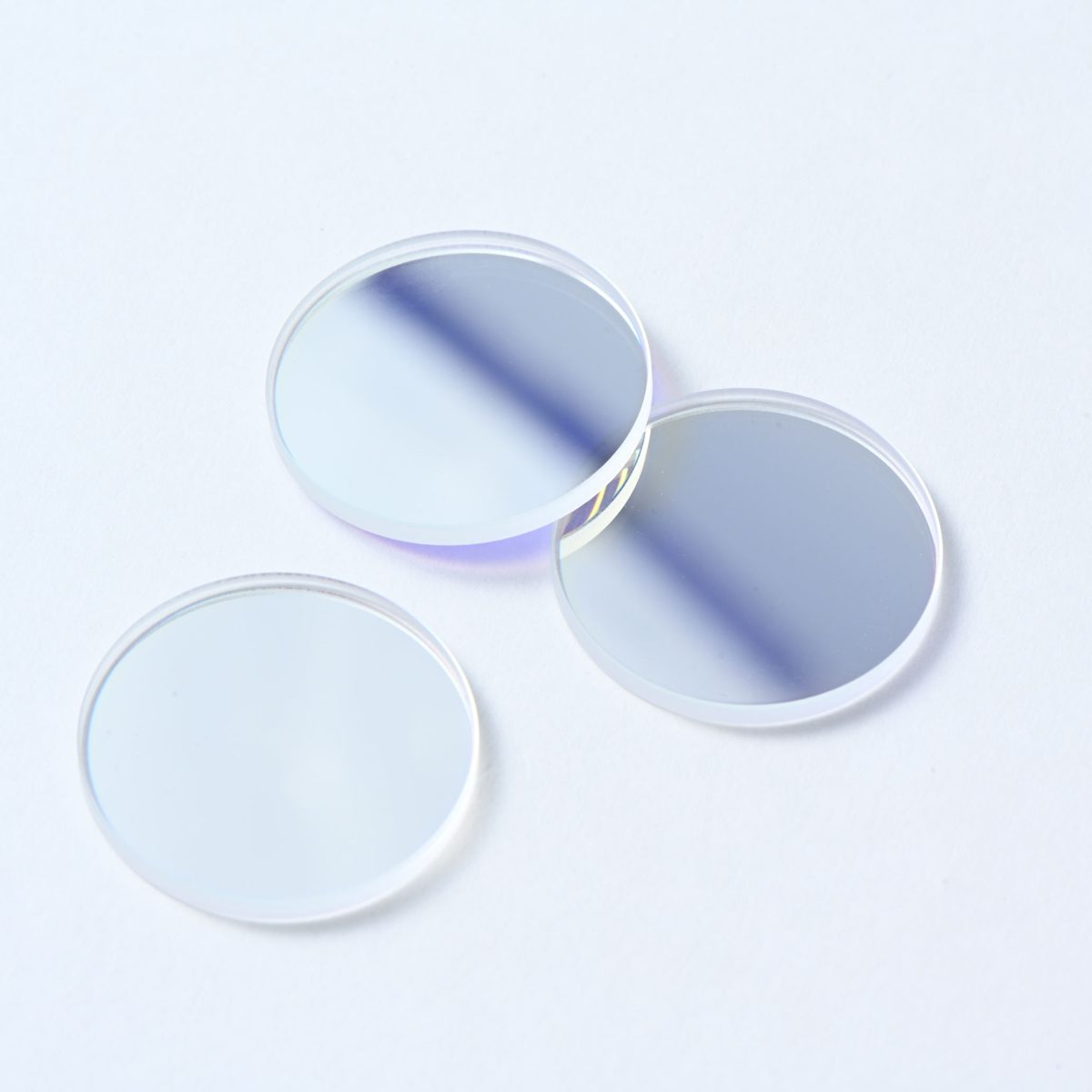

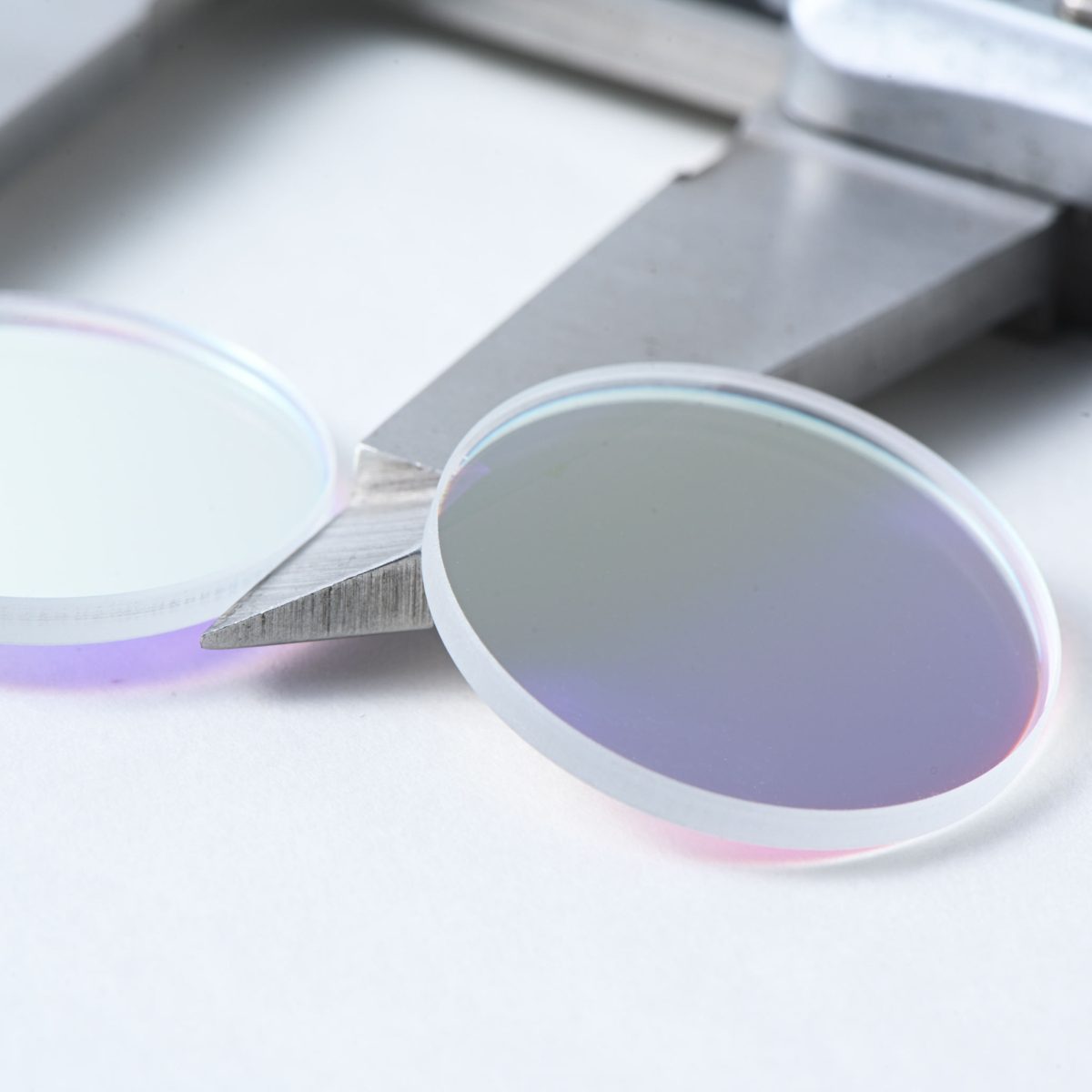

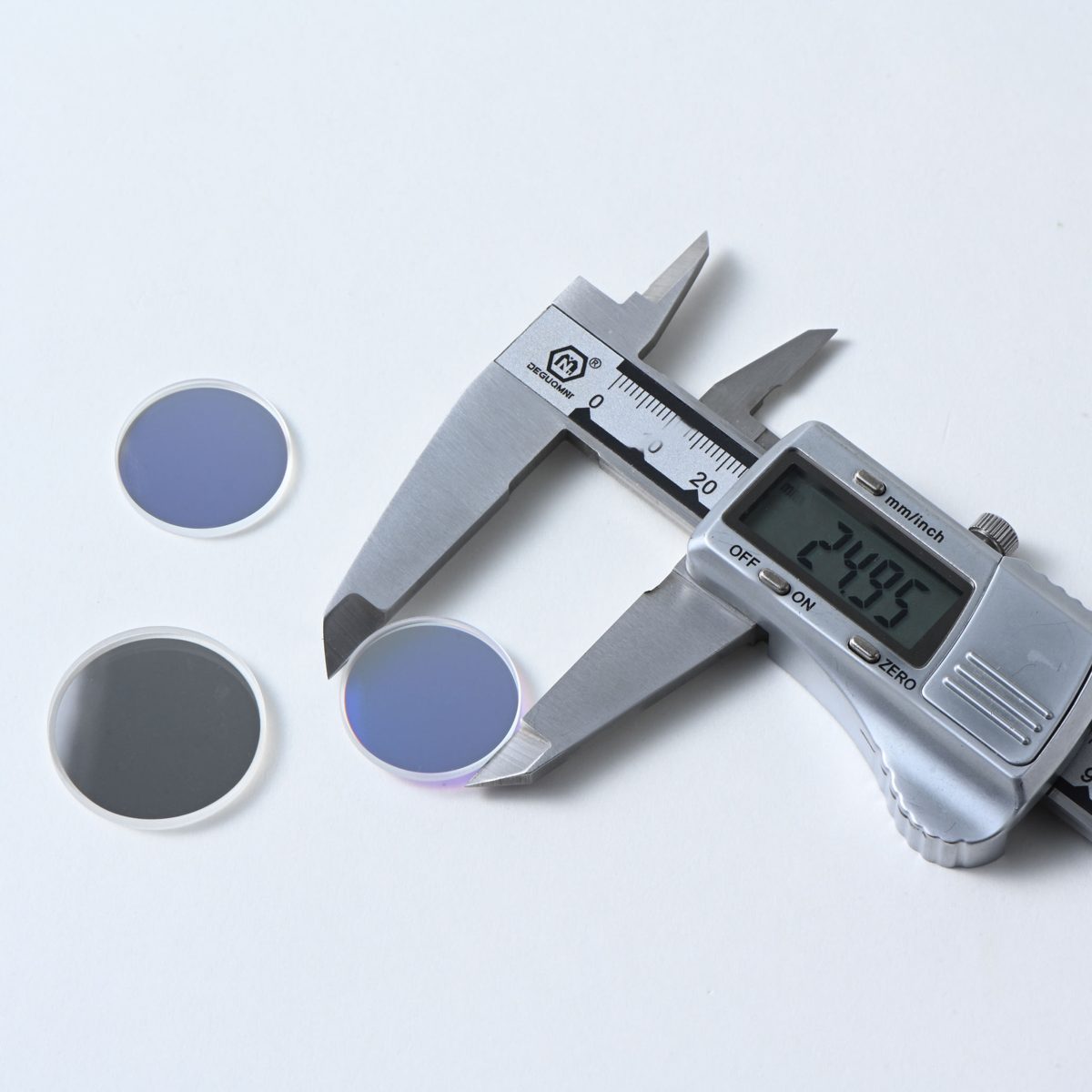

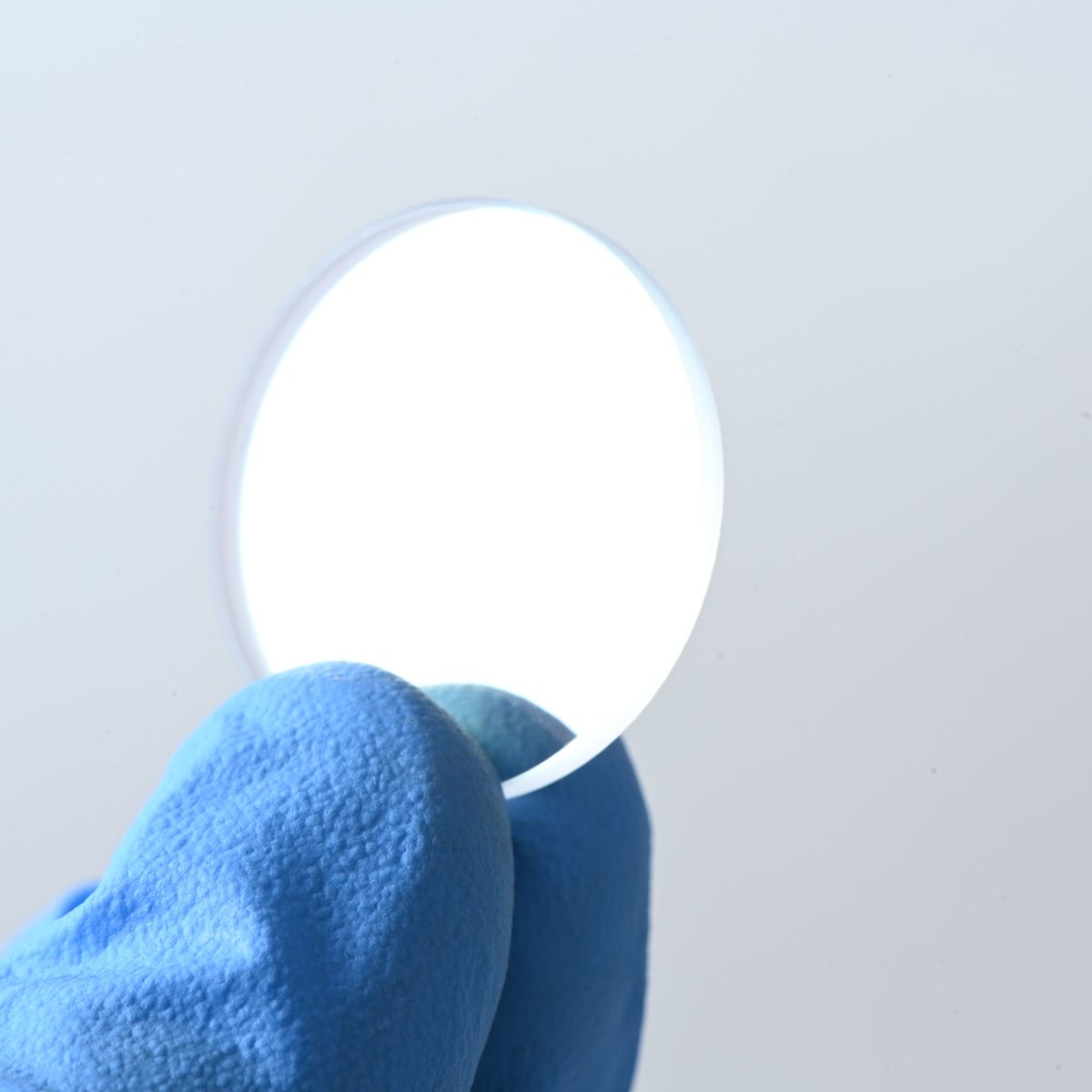

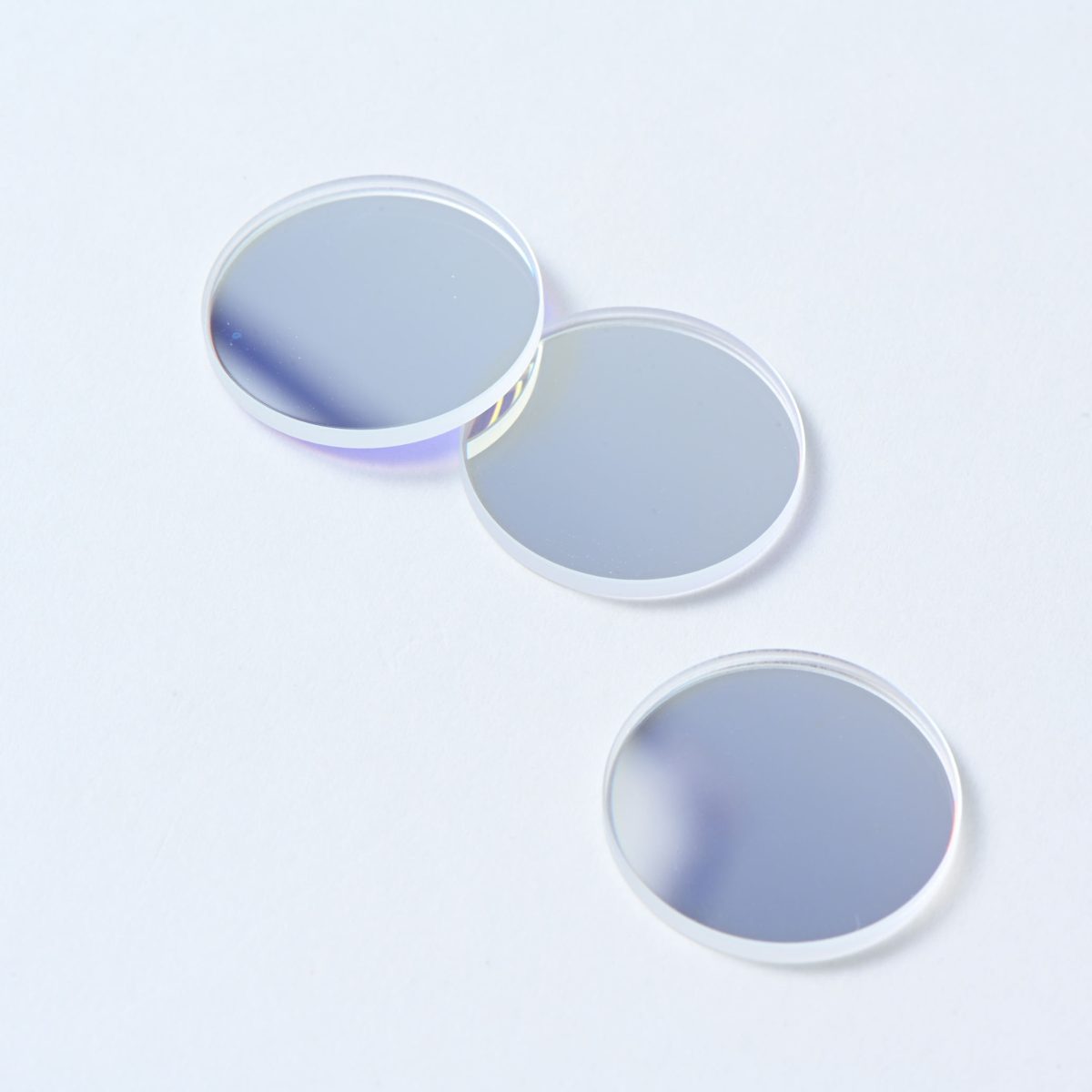

Custom Size K9 Optical Mirror, AR Coated
High-performance K9 mirror with 96% transmittance, customizable thickness, and various coatings for diverse applications.
Core attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 96%
- Coating
- anti-reflective (AR), dielectric HR, dichroic, IAD/PVD hard
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- K9
- Size
- Custom
- Thickness
- 1 mm
- Transmittance
- 96%
- Coating
- anti-reflective (AR), dielectric HR, dichroic, IAD/PVD hard
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This K9 mirror is designed for high-performance applications across a wide spectral range, including 0.7-1.7 μm, 400-700 nm, and <400 nm. With a transmittance of 96%, it effectively minimizes loss while maximizing reflectance for various optical systems. The mirror is suitable for applications requiring high durability and customization, making it ideal for R&D and production environments.
Key Features
- Transmittance of 96% enhances light efficiency in optical systems.
- Customizable thickness from 1.0 mm to 50.0 mm to fit specific application needs.
- Diameter tolerance of +0/-0.1 mm ensures precise fitting in assemblies.
- Available coatings include AR, dielectric HR, and dichroic for varied application requirements.
- Thickness tolerance of ±0.1 mm supports high precision in optical setups.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | Custom |
| Thickness | 1 mm |
| Transmittance | 96% |
| Coating | anti-reflective (AR), dielectric HR, dichroic, IAD/PVD hard |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM; OBM OEM ODM |
| Warranty | 3 Years |
| Transmittance | 96% |
| Diameter Tolerance | +0/-0.1mm |
| Wavelength | 200-1200nm /Custom |
| Thickness Tolerance | ±0.1mm |
FAQ
Can I get custom sizes for this mirror?
Yes, the mirror is customizable in thickness from 1.0 mm to 50.0 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering options.
