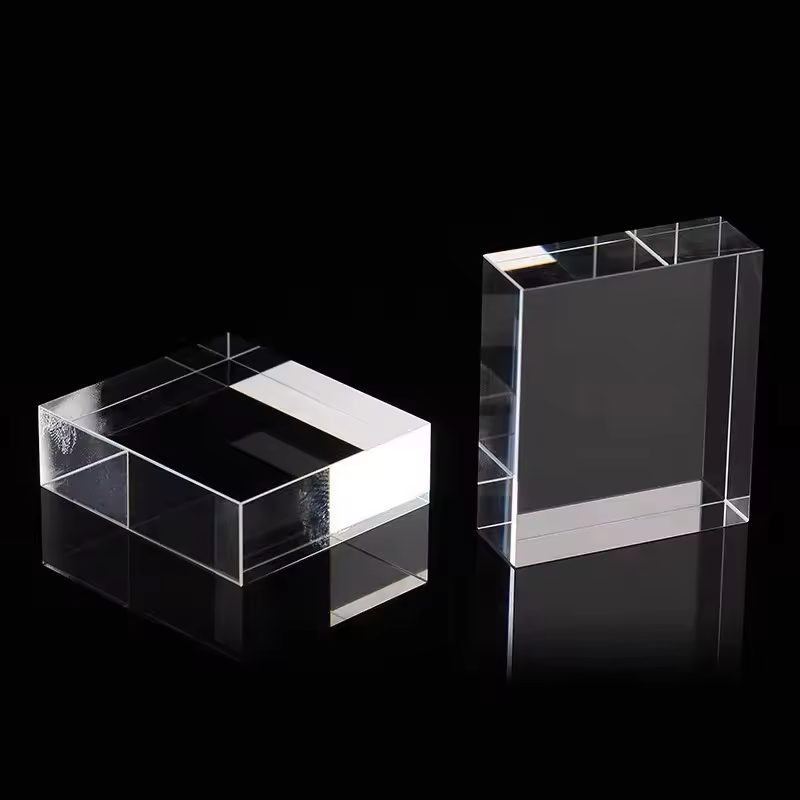

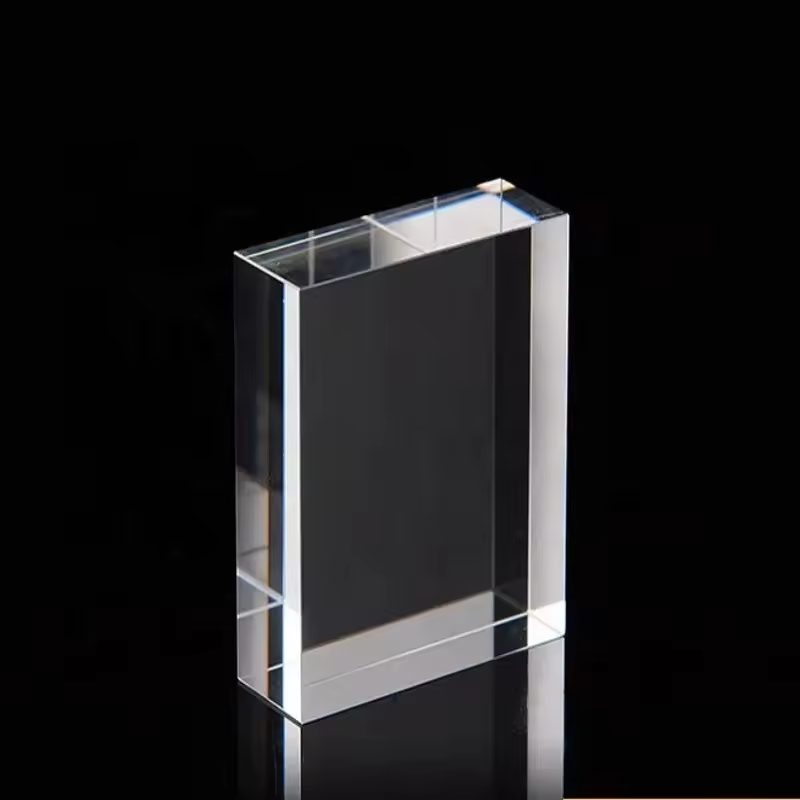

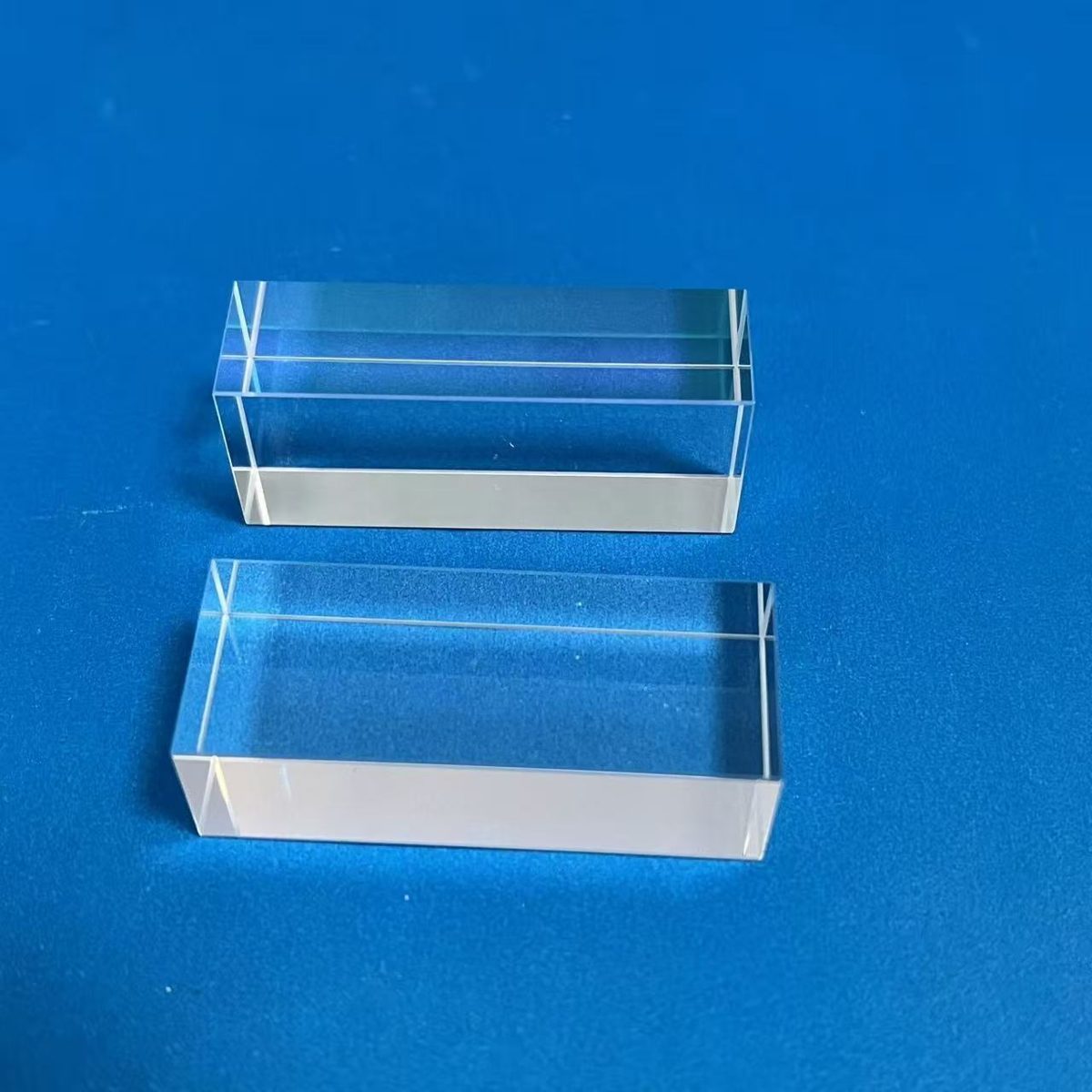

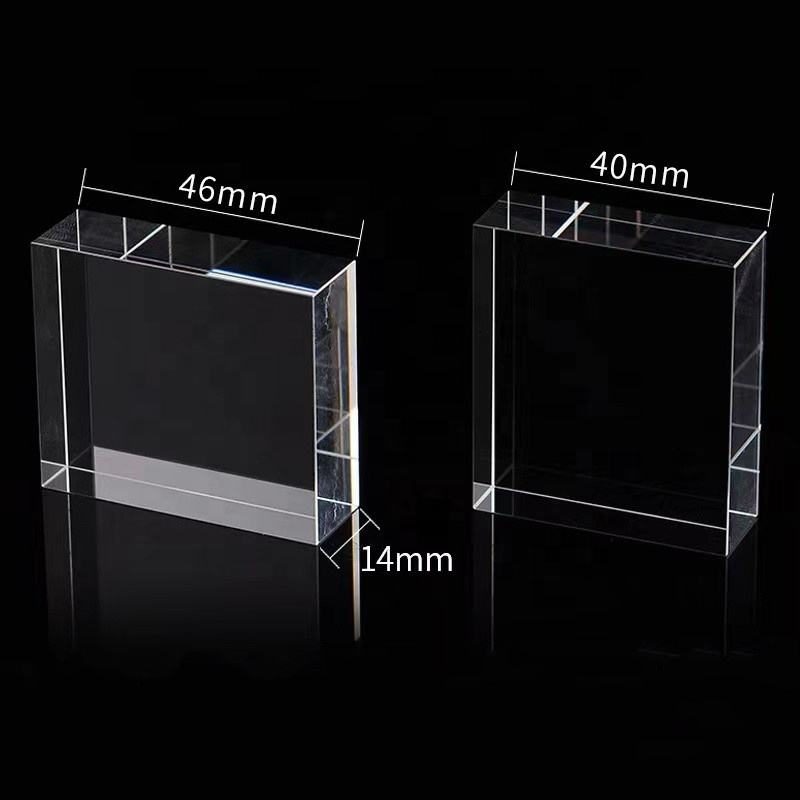

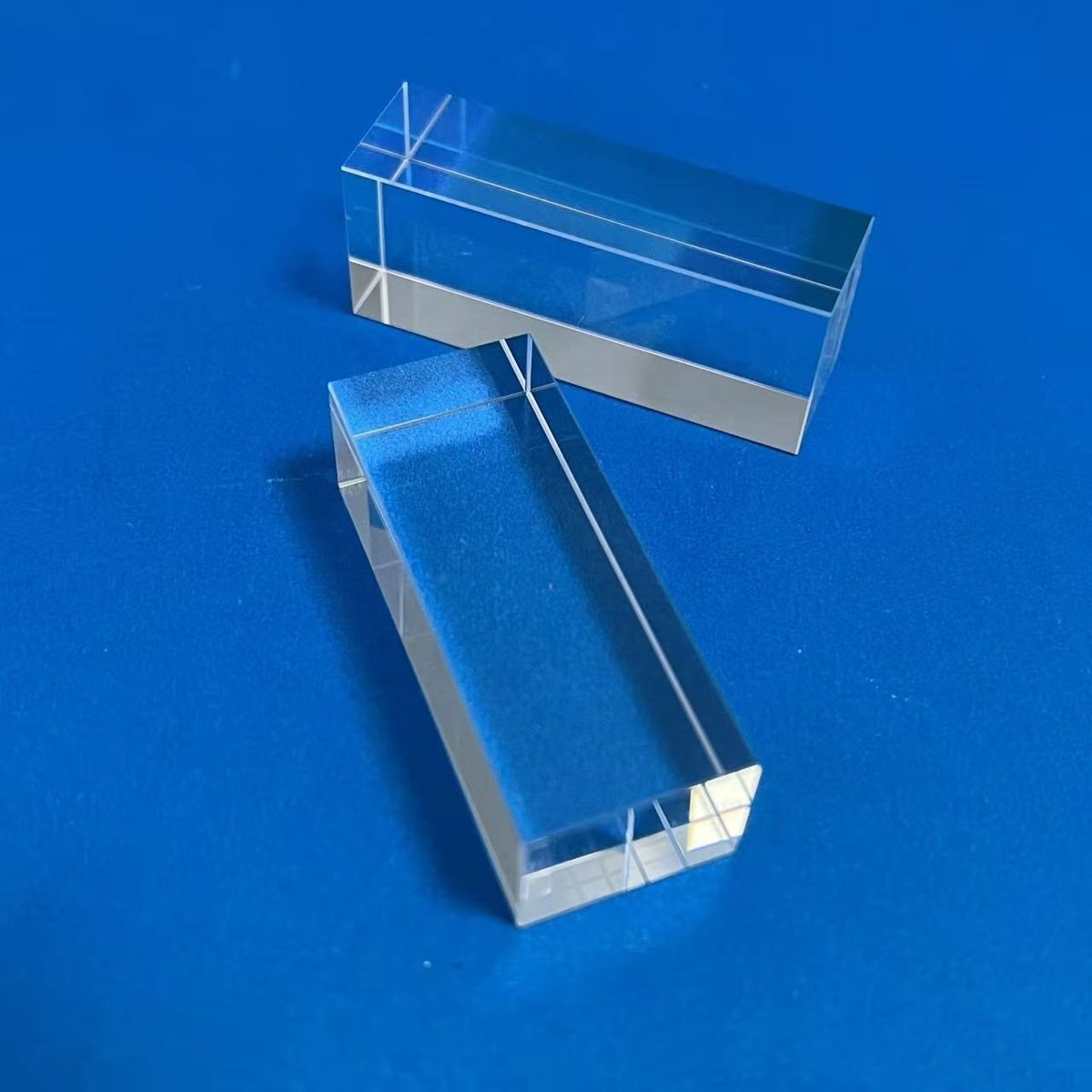

1 mm K9 Optical Prism, AR Coated
K9 glass prism with +/-3 seconds angle tolerance, 1/10 surface flatness, and customizable sizes from 1.0 mm to 200.0 mm.
Core attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- K9
- Size
- 1 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
This K9 glass prism is designed to meet the needs of various optical applications, providing high precision with an angle tolerance of +/- 3 seconds. Its surface flatness of 1/10 ensures wavefront integrity, making it suitable for laser, LIDAR, and machine-vision systems. The prism can be customized in size from 1.0 mm to 200.0 mm, allowing for flexibility in design and integration into optical paths.
Key Features
- Angle Tolerance: +/-3 seconds for precise alignment and performance.
- Surface Flatness: 1/10 to maintain wavefront integrity.
- Custom Sizes: Available in dimensions from 1.0 mm to 200.0 mm for tailored solutions.
- Bevel: 0.25 mm x 45 degrees for improved handling and integration.
- Coating: AR coating enhances transmittance for optimal light passage.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Size | 1 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | glass prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Surface Flatness | 1/10 |
| Angle Tolerance | +/-3second |
| Bevel | 0.25mmx45deg |
FAQ
Can I get custom sizes for the prism?
Yes, the prism can be customized in sizes ranging from 1.0 mm to 200.0 mm.
What is the angle tolerance of the prism?
The angle tolerance is +/- 3 seconds, ensuring high precision for optical applications.
